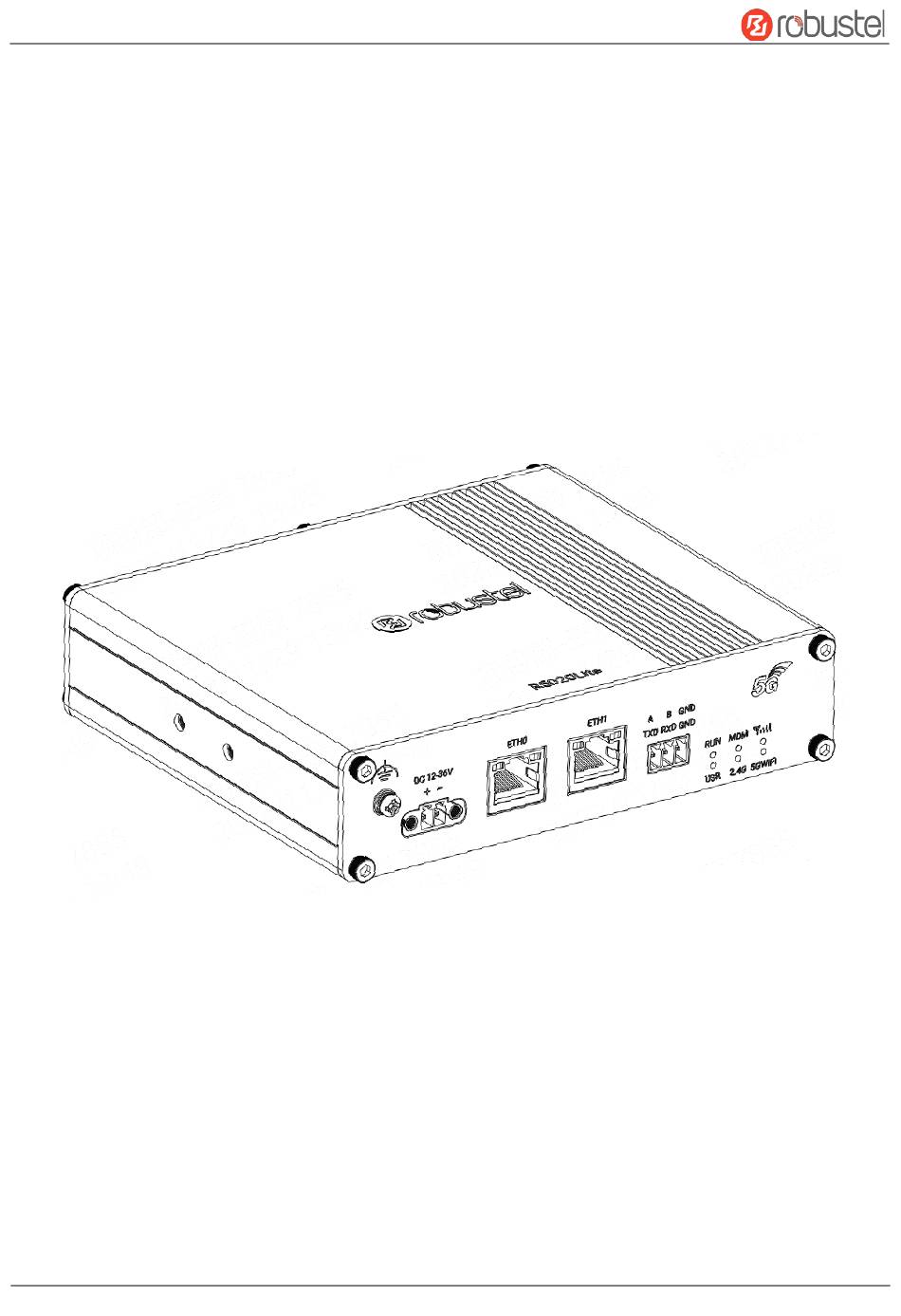

Robustel R5020 Lite Hardware Manual
R5020 Lite
Hardware Manual
Version: 1.0.0
Date: Nov. 23, 2022
RT098_HM_R5020_Lite
1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5020 Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robustel R5020 Lite

Summary of Contents for Robustel R5020 Lite

  • Page 1 Robustel R5020 Lite Hardware Manual R5020 Lite Hardware Manual Version: 1.0.0 Date: Nov. 23, 2022 RT098_HM_R5020_Lite 1/11...
  • Page 2 Robustel R5020 Lite Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
  • Page 3 Robustel R5020 Lite Hardware Manual Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and Part 15 of the FCC Rules.
  • Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
  • Page 5 Robustel R5020 Lite Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description Nov.
  • Page 6 Robustel R5020 Lite Hardware Manual Overview The R5020 Lite is Robustel’s new 5G capable router supporting global 5G, 4G and 3G bands. The R5020 Lite leverages our tried and tested high performance CPU platform and it is compatible with 3GPP Release 16.

  • Page 7: Interface Descriptions

    Robustel R5020 Lite Hardware Manual Interface Descriptions LED Indicator Name Color Status Description Green Fast Blinking Router is preparing (system initialization) (250ms) On, blinking Router starts operating (500ms) Router is powered off Green On, solid Link connection is working On, blinking...

  • Page 8: Pin Description

    Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are two Ethernet ports on R5020 Lite, including ETH0, ETH1. The ETH0 on the router can be configured as a WAN port, while ETH1 can only be configured as a LAN port. By default, ETH0, ETH1 are lan0, and their IP are 192.168.0.1/255.255.255.0.

  • Page 9: Hardware Installation

    Robustel R5020 Lite Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Terminal Block Installation. Insert the 3-PIN terminal blocks into the interfaces connector, then can connect the devices or sensors to the gateway via corresponding interfaces.
  • Page 10 Robustel R5020 Lite Hardware Manual 5. Grounding the Device. Grounding will help to prevent the noise effect due to electromagnetic interference (EMI). Connect the device to the site ground wire by the grounding screw before powering on. 6. Connect the router to the computer. Connect the Ethernet cable to any port labeled ETH0 or ETH1 of the router, and connect the other end of the cable to your computer.
  • Page 11 Robustel R5020 Lite Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
