- Page 1 Robustel R5010 Hardware Manual R5010 Hardware Manual Version: 1.0.1 Date: July 14, 2023 RT153_HM_R5010 1/11...
- Page 2 Robustel R5010 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
- Page 3 Robustel R5010 Hardware Manual Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s) and Part 15 of the FCC Rules.
- Page 4 Robustel R5010 Hardware Manual Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
- Page 5 Robustel R5010 Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description June 28, 2023 5.0.0...

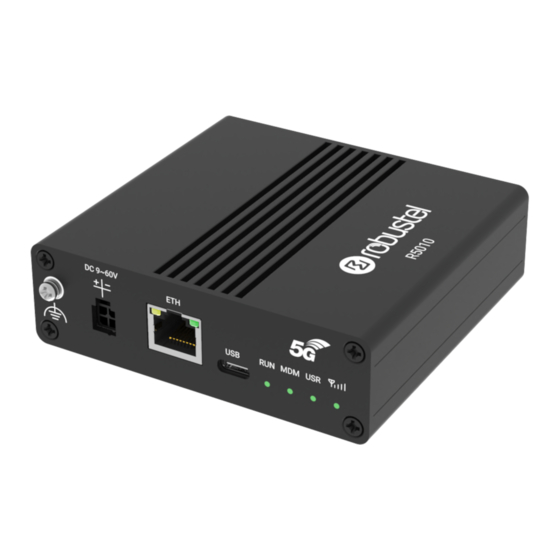

- Page 6 Robustel R5010 Hardware Manual Overview The R5010 is Robustel’s new 5G capable router supporting global 5G, 4G and 3G bands. The R5010 leverages our tried and tested high performance CPU platform and it is compatible with 3GPP Release 16. Package Checklist...
-
Page 7: Interface Descriptions
Robustel R5010 Hardware Manual Interface Descriptions LED Indicator Name Color Status Description On, solid Router is powered on Green Fast Blinking ROS is started up slow blinking ROS initialization is finished On, solid Link connection is working 3G: Red 4G: Yellow... -
Page 8: Pin Description
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There is an Ethernet ports on R5010. The ETH on the router can be configured as a LAN port. By default, ETH is lan0, and its IP are 192.168.0.1/255.255.255.0. -
Page 9: Hardware Installation
Robustel R5010 Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Mounting Kit Installation. - Page 10 Robustel R5010 Hardware Manual Grounding the Device. Grounding will help to prevent the noise effect due to electromagnetic interference (EMI). Connect the device to the site ground wire by the grounding screw before powering on. 5. Connect the router to the computer. Connect the Ethernet cable to any port labeled ETH of the router, and connect the other end of the cable to your computer.
- Page 11 Robustel R5010 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
