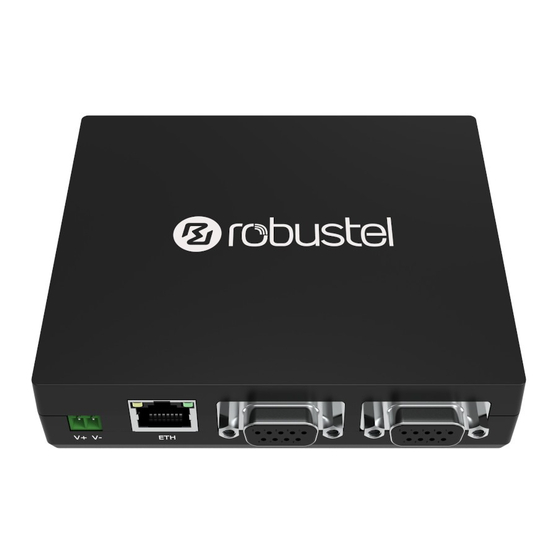

Robustel R1500 Hardware Manual
R1500
Hardware Manual
Version: 1.0.1
Date: Nov. 28, 2022
RT041_HM_R1500
1/11

Advertisement

loading
Need help?

Need help?

Do you have a question about the R1500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Robustel R1500

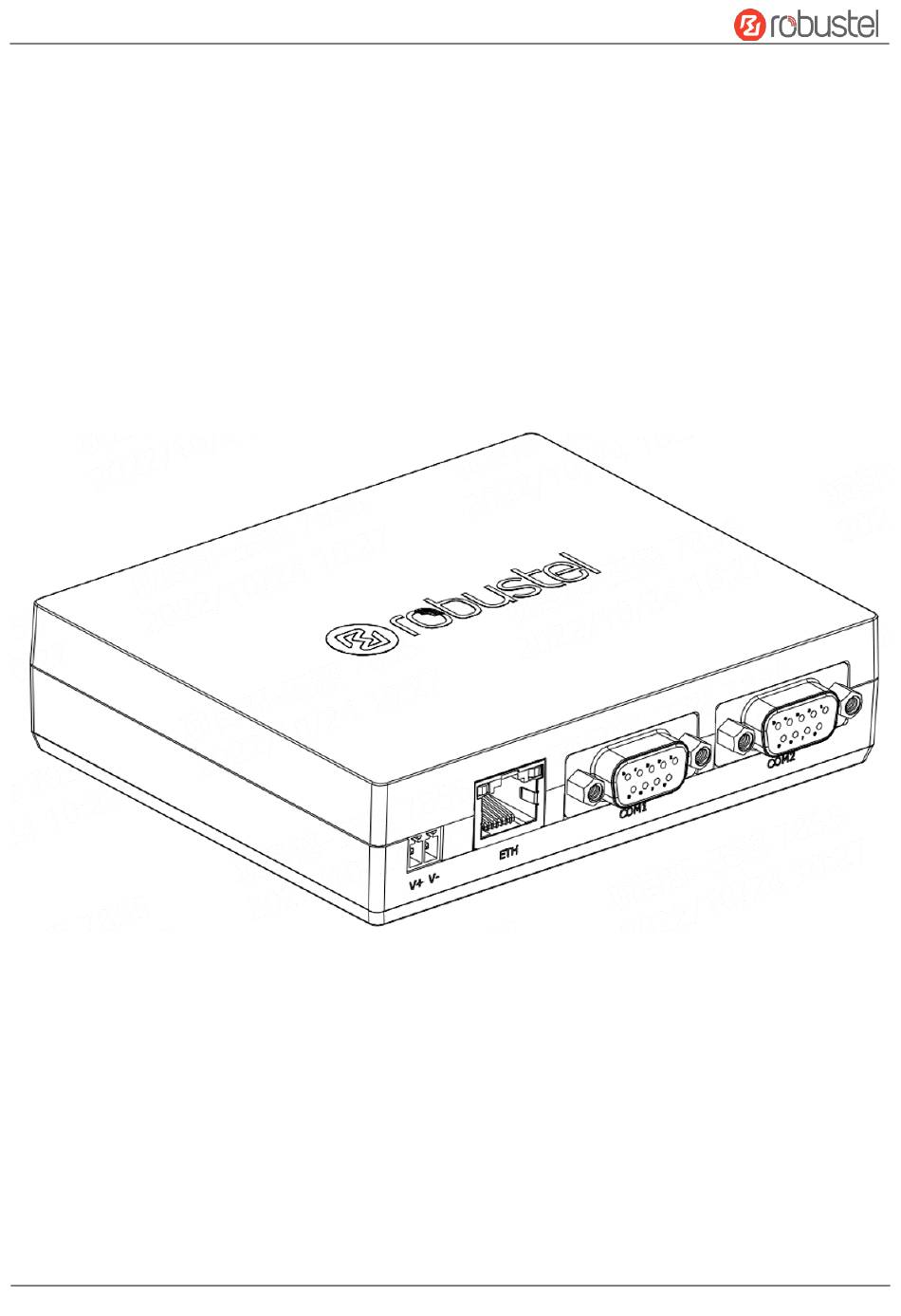

  • Page 1 Robustel R1500 Hardware Manual R1500 Hardware Manual Version: 1.0.1 Date: Nov. 28, 2022 RT041_HM_R1500 1/11...
  • Page 2 Robustel R1500 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
  • Page 3 Robustel R1500 Hardware Manual L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage;...
  • Page 4 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
  • Page 5 Robustel R1500 Hardware Manual Technical Support Tel: +86-20-82321505 Email: support@robustel.com Web: www.robustel.com Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description July 6, 2022 5.0.0...
  • Page 6 Robustel R1500 Hardware Manual Overview Robustel R1500 supports GSM/GPRS/EDGE 2G networks, 3G networks such as WCDMA, HSPA+ 3.5G and LTE 4G networks, providing high-speed wireless network bandwidth for devices over wireless connections, and it has dual SIM backups to ensure a stable connection to the wireless network.
  • Page 7: Interface Descriptions

    Robustel R1500 Hardware Manual Interface Descriptions PIN Description Name Mark Function Label Name Function Direction Power input positive, 9-36VDC R1500 →Device (red line) Transmit Data, Signal output Power input negative (yellow R1500 ←Device Receive Data, Signal input line) R1500 ←Device...
  • Page 8: Reset Button

    Robustel R1500 Hardware Manual None All off (three lights) No signal On, solid(three light) Signal Level: Best Signal Level Green Wireless module: 21-31dB (signal strength) On, solid(two light) Signal Level: Average Signal Level Green Wireless module: 11-20dB (signal moderate) On, solid(one light)
  • Page 9: Hardware Installation

    Robustel R1500 Hardware Manual Hardware Installation SIM Card Installation. Insert the SIM cards into the device. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Here take the cellular antenna as example. Slave antenna, SMA antenna Main antenna, SMA antenna...
  • Page 10 Robustel R1500 Hardware Manual Mounting Kit installation. DIN rail mounting Connect the Gateway to a Computer. Connect a Category 5 cable to the gateway Network port (ETH) to an external controller or computer's network port. Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector.
  • Page 11 Robustel R1500 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
