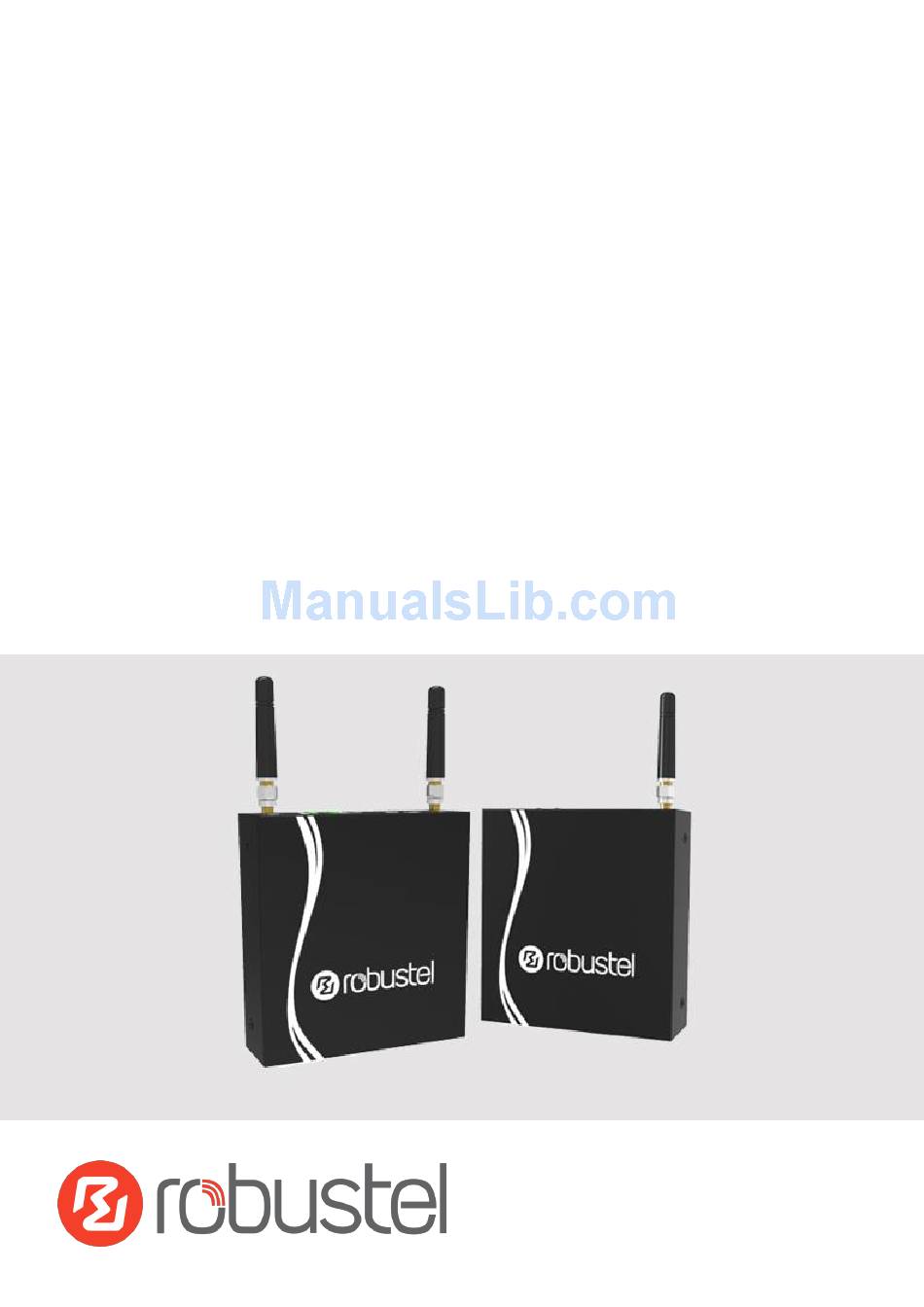

Robustel GoRugged R3000 Lite
Dual SIM Industrial Cellular VPN Router
For GSM/GPRS/EDGE/UMTS/TD-SCDMA/EVDO/
HSPA+/LTE Networks

User Guide

Document Name:
User Guide
Firmware:
2.0.0
Date:
2016-10-14
Status:
Confidential
Doc ID:
RT_UG_R3000 LiteR_v.2.0.1
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R3000 Lite and is the answer not in the manual?

Questions and answers

Related Manuals for Robustel GoRugged R3000 Lite

Summary of Contents for Robustel GoRugged R3000 Lite

  • Page 1: User Guide

    Robustel GoRugged R3000 Lite Dual SIM Industrial Cellular VPN Router For GSM/GPRS/EDGE/UMTS/TD-SCDMA/EVDO/ HSPA+/LTE Networks User Guide Document Name: User Guide Firmware: 2.0.0 Date: 2016-10-14 Status: Confidential Doc ID: RT_UG_R3000 LiteR_v.2.0.1 www.robustel.com...
  • Page 2 The contents of this document are subject to change without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.
  • Page 4 Robustel GoRugged R3000 Lite User Guide Protecting your router To ensure error-free usage, please install and operate your router with care. Do remember the following:  Do not expose the router to extreme conditions such as high humidity / rain, high temperature, direct sunlight, ...
  • Page 5 Robustel GoRugged R3000 Lite User Guide Regulatory and Type Approval Information Table 1: Directives Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and...
  • Page 6 Robustel GoRugged R3000 Lite User Guide Revision History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Release Date Firmware Version Doc Version Change Description 2013-12-20 1.01.00 V1.0.0 Initial Release Removed IP Passthrough...

  • Page 7: Table Of Contents

    Robustel GoRugged R3000 Lite User Guide Contents Chapter 1 Product Concept ............................8 Overview ..............................8 Packing List ..............................9 Specifications ............................11 Dimensions ............................... 12 Selection and Ordering Data ........................13 Chapter 2 Installation ..............................14 LED Indicators ............................14 PIN Assignment ............................
  • Page 8 Robustel GoRugged R3000 Lite User Guide Filtering ................................44 Port Mapping ..............................46 DMZ ................................. 47 3.14 Network > QoS ............................47 3.15 VPN > IPSec .............................. 49 3.16 VPN > OpenVPN ............................55 3.15 VPN > GRE ..............................61 3.16...

  • Page 9: Chapter 1 Product Concept

    Robustel GoRugged R3000 Lite User Guide Chapter 1 Product Concept 1.1 Overview Robustel GoRugged R3000 Lite is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications.  Dual SIM redundancy for continuous cellular connections; supports 2G/3G/4G ...

  • Page 10: Packing List

    Robustel GoRugged R3000 Lite User Guide 1.2 Packing List Check your package to make sure it contains the following items:  Robustel GoRugged R3000 Lite router x 1 Two antennas One antenna  3-pin pluggable terminal block with lock for power connector x 1 ...
  • Page 11 Robustel GoRugged R3000 Lite User Guide Ethernet cable x 1   Wall mounting Kit x 2  35 mm DIN rail mounting kit x 1  AC/DC power supply adapter x 1 (12 VDC, 1.5 A; EU, US, UK, AU plug optional) ...

  • Page 12: Specifications

    Robustel GoRugged R3000 Lite User Guide 1.3 Specifications Cellular Interface  Standards: GSM/GPRS/EDGE/UMTS/TD-SCDMA/EVDO/HSPA+/ LTE  GSM: max. 9.6/2.7 Kbps (DL/UL)  GPRS: max. 86 Kbps (DL & UL), class 10  EDGE: max. 236.8 Kbps (DL & UL), class 12 ...

  • Page 13: Dimensions

    Robustel GoRugged R3000 Lite User Guide  Management: Web, CLI, SNMP v1/v2/v3, SMS, RobustLink  Serial port: TCP client/server, UDP, Modbus RTU/ASCII to Modbus TCP, Virtual COM (COM port redirector)  RobustLink: Centralized M2M management platform  RobustVPN: Cloud VPN Portal Power Supply and Consumption ...

  • Page 14: Selection And Ordering Data

    Robustel GoRugged R3000 Lite User Guide 1.5 Selection and Ordering Data Operating Model No. Description Frequency Range Selection Environment 3G: UMTS 900/2100MHz -40 to 85°C R3000-L3H HSDPA router HSDPA/HSUPA/HSPA 850/900/1900/2100MHz /5 to 95% RH 2G: GSM/GPRS/EDGE 850/900/1800/1900MHz 3G: UMTS/HSDPA/HSUPA/HSPA 800/850/900/AWS/1900/2100MHz -40 to 85°C...

  • Page 15: Chapter 2 Installation

    Robustel GoRugged R3000 Lite User Guide Chapter 2 Installation 2.1 LED Indicators Name Color Status Function On, blinking Router is ready Green Router is starting Router is power off On, blinking Null Green PPP connection is up PPP connection is down...

  • Page 16: Pin Assignment

    Robustel GoRugged R3000 Lite User Guide 2.2 PIN Assignment DB9 Female Connector PIN Power Positive PIN Debug RS232 RS485 (2-wire) Terminal block Direction Data+ (A) 485+ Negative R3000 Lite  Device Device  R3000 Lite Device  R3000 Lite DRXD...

  • Page 17: Reset Button

    Robustel GoRugged R3000 Lite User Guide 2.4 Reset Button Reset Button Function Operation Reboot Press the button for at least 5 seconds in operating status After powering up the router, press the RST button by a small non-conductive stick with a...

  • Page 18: Mount The Router

    Robustel GoRugged R3000 Lite User Guide 2.6 Mount the Router R3000 Lite router supports for horizontal surface placement, DIN rail mounting and wall mounting. Two ways of mounting the router  Wall mounting Use 3 pcs of M3*4 countersunk Phillips screws to fix the router on the wall mounting kit, and then use 2 pcs of M3 drywall screws to mount the router associated with the wall mounting kit on the wall.

  • Page 19: Install The Sim Card

    Robustel GoRugged R3000 Lite User Guide 2.7 Install the SIM Card Remove slot cover  Make sure router is powered off. To remove cover, loosen the screws associated with the cover by using a screwdriver and then find the SIM card slot.

  • Page 20: Grounding The Router

    Robustel GoRugged R3000 Lite User Guide 2.9 Grounding the Router Router grounding helps prevent the noise effect due to electromagnetic interference (EMI). Connect the router to the site ground wire by the ground screw before powering on. Note: This product is appropriate to be mounted on a sound grounded device surface, such as a metal panel.

  • Page 21: Chapter 3 Configuration Settings Over Web Browser

    Robustel GoRugged R3000 Lite User Guide Chapter 3 Configuration Settings over Web Browser The router can be configured through web browser including IE 8.0 or above, Chrome and Firefox, etc. And the supported operating systems are: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc. There are various ways to connect to the router, either through an external repeater/hub or to PC directly.
  • Page 22 Robustel GoRugged R3000 Lite User Guide 2. Click Properties in the window of Local Area Connection Status. 3. Choose Internet Protocol Version 4 (TCP/IPv4) and click Properties. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 21 / 107 Confidential...
  • Page 23 Robustel GoRugged R3000 Lite User Guide 4. Two ways for configuring the IP address of PC: Obtain an IP address automatically: Use the following IP address (configured a static IP address manually within the same subnet of R3000 Lite router): 5.

  • Page 24: Factory Default Settings

    Robustel GoRugged R3000 Lite User Guide 3.2 Factory Default Settings Before configuring your router, you need to know the following default settings. Item Description Username admin Password admin Ethernet 192.168.0.1/255.255.255.0, LAN mode DHCP Server Enabled. 3.3 Login Router On the PC, open a web browser such as Internet Explorer, Google and Firefox etc.

  • Page 25: Control Panel

    Robustel GoRugged R3000 Lite User Guide 3.4 Control Panel After logging in the R3000 Lite, the home page of the R3000 Lite router’s web interface is displayed, just like the screenshot below. This section allows users to save configuration, reboot router and logout. When you are first time to login R3000 Lite, there will be a pop-up tab “...

  • Page 26: Status

    Robustel GoRugged R3000 Lite User Guide Click to exit safely, then it will switch to login page. Shut down web Logout page directly without logout, the next one can login web on this browser without a password before timeout. Submit Click to submit the modification on current configuration page.

  • Page 27: Cellular Information

    Robustel GoRugged R3000 Lite User Guide System Information Item Description Device Model Show the model name of this device. System Uptime Show how long the router has been working since power on. System Time Show the current system time. Firmware Version Show the current firmware version.

  • Page 28: Internet Status

    Robustel GoRugged R3000 Lite User Guide Cellular Information Item Description Show the status of Registration. There are 6 different status: 1. Not registered, search stopped 2. Registered to home network Network Registration 3. Not registered, searching 4. Registration denied 5. Unknown 6.

  • Page 29: Interface > Link Manager

    Robustel GoRugged R3000 Lite User Guide 3.6 Interface > Link Manager Link Manager User can manage the link connection in this section. R3000 Lite support Cellular and Ethernet link connection. Link Manager Item Description Default Select from “WWAN1”, “WWAN2”. WWAN1: Select to make SIM1 as the primary wireless link.

  • Page 30: Wwan1/Wwan2

    Robustel GoRugged R3000 Lite User Guide WWAN1/WWAN2 When enable “Automatic APN Selection”, the window will display just like the following screenshot. When disable “Automatic APN Selection”, the window will display just like the following screenshot. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 29 / 107...
  • Page 31 Robustel GoRugged R3000 Lite User Guide WWAN Setting Item Description Default Automatic APN Selection R3000 Lite will recognize the access point name automatically. Dialup Number Dialup number for cellular dial-up connection, provided by local ISP. *99***1# Authentication Type Select from “Auto”, “PAP” and “CHAP” as the local ISP required.

  • Page 32: Status

    Robustel GoRugged R3000 Lite User Guide Ping Detection Settings/Advanced Setting Item Description Default Router will ping this secondary address/domain name to check that if Secondary Server Null the current connectivity is active. Interval Set the ping interval. Retry Interval Set the ping retry interval.

  • Page 33: Interface > Lan

    Robustel GoRugged R3000 Lite User Guide Click button to clear SIM1 or SIM2 monthly data traffic usage statistics. Data statistics will display only if enable the Data Allowance function in Link Manager > Link Setting > WWAN Setting. 3.7 Interface > LAN This section allows user to set the related parameters of LAN interfaces.
  • Page 34 Robustel GoRugged R3000 Lite User Guide General Settings Item Description Default Interface R3000 Lite’s LAN interface names lan0. lan0 IP Address Set the IP Address of the LAN interface. 192.168.0.1 Netmask Set the Netmask of the LAN interface. 255.255.255.0 Maximum Transmission Unit. It is the identifier of the maximum 1500 size of packet, which is possible to transfer in a given environment.

  • Page 35: Multiple Ip

    Robustel GoRugged R3000 Lite User Guide DHCP Server Item Description Default Define the Primary DNS Server which the DHCP clients will obtain from Primary DNS Null DHCP server. Define the Secondary DNS Server which the DHCP clients will obtain from...

  • Page 36: Vlan Trunk

    Robustel GoRugged R3000 Lite User Guide Multiple IP Item Description Default Interface R3000 Lite’s LAN interface names lan0. lan0 IP Address Set the multiple IP Address of the LAN interface. Null Netmask Set the multiple Netmask of the LAN interface.

  • Page 37: Status

    Robustel GoRugged R3000 Lite User Guide Status This section shows the LAN connection status. Click the row of status, the details status information will be display under the row. Please refer to the screenshot below. 3.8 Interface > Ethernet This section allow user to set the parameter of the Ethernet port. One port should be assigned to lan0 a least.

  • Page 38: Interface > Cellular

    Robustel GoRugged R3000 Lite User Guide Click button, configure the port setting. Ethernet Item Description Default Index The index of Ethernet port. Read only. Port R3000 Lite’s Ethernet port names eth0 eth0 Port Assignment R3000 Lite’s Ethernet port eth0 with be assign to lan0.
  • Page 39 Robustel GoRugged R3000 Lite User Guide When choose “Network Type type” is “Auto”; When choose “band select type” is “Specify”. Cellular Item Description Default Index Show the index of the SIM. SIM Card Set the current SIM card. SIM1 Link Name Set the current Link Name.
  • Page 40 Robustel GoRugged R3000 Lite User Guide Status This section allow user to check the cellular status information. Status Item Description Modem Status Show the status of the radio module. Current SIM Show the SIM card which the router works with currently: SIM1 or SIM2.

  • Page 41: Interface > Usb

    Robustel GoRugged R3000 Lite User Guide 3.10 Interface > USB This section allows users to set the USB parameters. Note: Users can insert a USB storage device, such as U disk and hard disk, into the router’s USB interface. If there is firmware of R3000 Lite inside the USB storage devices, R3000 Lite will automatically update the firmware.
  • Page 42 Robustel GoRugged R3000 Lite User Guide Serial setting@COM1 Item Description Default Port Show the current serial’s name. In default, COM1 is RS232 and COM2 is RS485. Click to enable this serial port. When the status is OFF, the serial port is not Enable available.
  • Page 43 Robustlink: Router will automatically upload the serial data to Robustlink platform under the Robustlink protocol. Robustlink is a management platform from Robustel. This function only available when Router is connects to Robustlink. Server Enter the address of server which will receive the data sent from R3000 Lite’s serial...

  • Page 44: Network > Route

    Robustel GoRugged R3000 Lite User Guide 3.12 Network > Route This section allows user to set the static route. (The maximum number of the static route is twenty.) Static Route Click “ ” to add static routes, the maximum number of static routes is 20.

  • Page 45: Network > Firewall

    Robustel GoRugged R3000 Lite User Guide 3.13 Network > Firewall This section allows users to set the Firewall and the related parameters, which includes “Filter”, “Port Mapping” and “DMZ”. Filtering General Setting & Access Control Item Description Default Enable Filtering Enable filtering rules.
  • Page 46 Robustel GoRugged R3000 Lite User Guide General Setting & Access Control Item Description Default Enable Local Telnet Access Enable to allow users to access the router on the local Ethernet via Telnet. Enable Remote Http Enable to allow users to access the router remotely on the internet side Access via Http.

  • Page 47: Port Mapping

    Robustel GoRugged R3000 Lite User Guide Filtering Rules Item Description Default Select from “Accept”, “Drop”. Accept: When Default Filtering Policy is drop, router will drop all the Action connecting requests except the hosts which fit this accept filtering list. Drop Drop: When Default Filtering Policy is accept, router will accept all the connecting requests except the hosts which fit this drop filtering list.

  • Page 48: Dmz

    Robustel GoRugged R3000 Lite User Guide Item Description Default Select to enable the DMZ function. Enable DMZ DMZ host is a host on the internal network that has all ports exposed, except those ports otherwise forwarded. Host IP Address Enter the IP address of the DMZ host which on the internal network.
  • Page 49 Robustel GoRugged R3000 Lite User Guide Item Description Default Enable QoS Click to enable “QoS” function. Disable Index Show the index of priority. Select from “Highest”, “High”, “Normal”, “Low”, “Lowest”. Priority User can select the priority level according to the requirement.

  • Page 50: Vpn > Ipsec

    Robustel GoRugged R3000 Lite User Guide Item Description Default Enter the IP address of the source host. Source Address Null format: x.x.x.x, x.x.x.x/xx, x.x.x.x-x.x.x.x, empty means anywhere Source Port Enter the port number of the source host. Null Enter MAC address of the source host. Router supports up to 20 users set with Source MAC QoS MAC Control.
  • Page 51 Robustel GoRugged R3000 Lite User Guide Tunnel Click “ ” to add tunnel settings. (The maximum number of the tunnel is three.) Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable IPSec Tunnel. Description Enter some simple words about the IPSec Tunnel.
  • Page 52 Robustel GoRugged R3000 Lite User Guide When choose “Authentication Type” to “PSK”. When choose “Authentication Type” to “CA”. When choose “Authentication Type” to “xAuth PSK”. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 51 / 107 Confidential...
  • Page 53 Robustel GoRugged R3000 Lite User Guide When choose “Authentication Type” to “xAuth CA”. IKE Settings Item Description Default Select from “Main” and “Aggressive” for the IKE negotiation mode in phase 1. If the IP address of one end of an IPSec tunnel is obtained dynamically,...
  • Page 54 Robustel GoRugged R3000 Lite User Guide IKE Settings Item Description Default User FQDN: Uses a user FQDN type as the ID in IKE negotiation. If this option is selected, type a name string with a sign “@” for the local security gateway, e.g., test@robustel.com.
  • Page 55 Robustel GoRugged R3000 Lite User Guide SA Settings Item Description Default Select from “3DES”, “AES128” and “AES256” when you select “ESP” in “Protocol”; Encrypt Algorithm Note: Higher security means more complex implementation and lower 3DES speed. DES is enough to meet general requirements. Use 3DES when high confidentiality and security are required.

  • Page 56: Vpn > Openvpn

    Robustel GoRugged R3000 Lite User Guide x509 User can upload the X509 certificate for the IPSec tunnel in this section. x509 Item Description Default Tunnel Name Select the name of the tunnel. Tunnel 1 Choose the correct file to import the certificate into the router.
  • Page 57 Robustel GoRugged R3000 Lite User Guide When choose “Authentication Type” to “None”. When choose “Authentication Type” to “Preshared”. When choose “Authentication Type” to “Password”. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 56 / 107 Confidential...
  • Page 58 Robustel GoRugged R3000 Lite User Guide When choose “Authentication Type” to “X509CA”. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 57 / 107 Confidential...
  • Page 59 Robustel GoRugged R3000 Lite User Guide When choose “Authentication Type” to “X509CA Password”. Tunnel Settings Item Description Default Index Show the index of the tunnel. Enable Enable OpenVPN tunnel. Description Enter some simple words about the OpenVPN Tunnel. Null Mode Select from “P2P”, “Client”.
  • Page 60 Robustel GoRugged R3000 Lite User Guide Tunnel Settings Item Description Default When the “Mode” is “P2P”. Remote IP Null Define the remote IP address of OpenVPN tunnel. User name used for Authentication Type “Password” or “X509CA Username Null Password”. Password used for Authentication Type “Password” or “X509CA...
  • Page 61 Robustel GoRugged R3000 Lite User Guide Advanced Settings Item Description Default Add an additional layer of HMAC authentication on top of the TLS Enable HMAC Firewall control channel to protect against DoS attacks. Enable the PKCS#12 certificate. It is an exchange of digital certificate Enable PKCS#12 encryption standard, used to describe personal identity information.

  • Page 62: Vpn > Gre

    Robustel GoRugged R3000 Lite User Guide 3.15 VPN > GRE This section allows users to set the OpenVPN and the related parameters. Click “ ” to add tunnel settings. (The maximum number of the tunnel is three.) Item Description Default Index Show the index of the tunnel.

  • Page 63: Services > Syslog

    Robustel GoRugged R3000 Lite User Guide 3.16 Services > Syslog This section allows users to set the syslog parameters. Syslog Syslog Settings Item Description Default Enable Click to enable Syslog setting. Select form “Debug”, “Info”, “Notice”, “Warning”, “Error” which from low...

  • Page 64: Services > Event

    Robustel GoRugged R3000 Lite User Guide 3.17 Services > Event This section allows users to set the Event parameters. Event @ Event Item Description Default Signal Quality Router will generate log event when signal quality less than the threshold, 0 Threshold means disable.
  • Page 65 Robustel GoRugged R3000 Lite User Guide Query @ Event Item Description Default Select the events’ save position from “RAM”, “NVM”. Save Position RAM: Random-access memory. NVM: Non-Volatile Memory. Event will be filtered according to the Filter Message that the user set. Click the Filter Message Refresh button, the filtered event will be displayed in the follow box.

  • Page 66: Services > Ntp

    Robustel GoRugged R3000 Lite User Guide 3.18 Services > NTP This section allows users to set the NTP parameters. Timezone Settings @ NTP Item Description Default Time Zone Select your local time zone. +08:00 Specify the time zone with Daylight Saving Time in TZ environment variable...

  • Page 67: Services > Sms

    Robustel GoRugged R3000 Lite User Guide 3.19 Services > SMS This section allows users to set the SMS parameters. Item Description Default Enable SMS Management Click to enable SMS Management function. Select Authentication Type from “Password”, “Phonenum”, “Both”. Password: use the same username and password as WEB manager for authentication.

  • Page 68: Services > Ddns

    Robustel GoRugged R3000 Lite User Guide SMS Testing Item Description Default Enter the specified phone number which will receive the SMS from R3000 Phone Number Null Lite router. Enter the message that R3000 Lite router will sent it to the specified...

  • Page 69: Services > Vrrp

    Robustel GoRugged R3000 Lite User Guide DDNS Item Description Default Enable Click to enable DDNS function. Select the DDNS service from “DynDNS”, “NO-IP”, “3322”. Service Provider Note: the DDNS service only can be used after registered by DynDNS Corresponding service provider.

  • Page 70: Services > Ssh

    Robustel GoRugged R3000 Lite User Guide VRRP Item Description Default Enable Click to enable VRRP protocol. Interface Display “lan0”. lan0 Group ID Specify which VRRP group of this router belong to. Priority Enter the priority value from 1 to 255. The larger value has higher priority.

  • Page 71: Services > Web Server

    Robustel GoRugged R3000 Lite User Guide 3.23 Services > Web Server This section allows users to modify the parameters of Web Server. Basic @ Web Server Item Description Default Enter the HTTP port number you want to change in R3000 Lite’s Web Server.

  • Page 72: Services > Advanced

    Robustel GoRugged R3000 Lite User Guide Certificate Management Item Description Default Click “Browse” to select the certificate file in your computer, and then click HTTPS Certificate “Import” to import this file into your router. 3.24 Services > Advanced This section allows users to set the Advanced and parameters.

  • Page 73: System > Debug

    Robustel GoRugged R3000 Lite User Guide AT over Telnet @ Advanced Item Description Default Enable Click to enable AT over Telnet function. Enter a specific port number to allow user sent AT command to this router Port over telnet. AT Cmd COM Port Select a COM port used for identifying the AT command.

  • Page 74: System > Update

    Robustel GoRugged R3000 Lite User Guide Syslog Details @ Syslog Item Description Default Select form “Debug”, “Info”, “Notice”, “Warn”, “Error” which from low to Log Level Debug high. The lower level will output more syslog in detail. Log will be filtered according to the Filter Message that the user set. Click the Filtering Refresh button, the filtered log will be displayed in the follow box.

  • Page 75: System > App Center

    Robustel GoRugged R3000 Lite User Guide 3.27 System > APP Center This section allow user to add a new function to R3000 Lite router. And the new function will be in the form of an APP file which could be installed in R3000 Lite router. In general, the App which had installed will display in Service section.

  • Page 76: System > Tools

    Robustel GoRugged R3000 Lite User Guide 3.28 System > Tools This section provides users three tools: Ping, Traceroute and Sniffer. Ping @ Tools Item Description Default IP address Enter the ping destination IP address or domain name. Null Number of requests Specify the number of ping requests.
  • Page 77 Robustel GoRugged R3000 Lite User Guide At Debug @ Tools Item Description Enter a At command in Command box, then click button to send the At Command command to the cellular module. Result It will display the AT commands which respond from the cellular module in this box.
  • Page 78 Robustel GoRugged R3000 Lite User Guide Traceroute @ Tools Item Description Default Trace Address Enter the trace destination IP address or domain name. Null Specify the max trace hops. Router will stop tracing if the trace hops has met Trace Hops max value no matter the destination has been reached or not.

  • Page 79: System > Profile

    Robustel GoRugged R3000 Lite User Guide 3.29 System > Profile This section allows users to import or export the configuration file, and restore the router to factory default setting. Import Configuration File @ Profile Define what to do about the configs that is not contained in the imported file.

  • Page 80: System > Device Configuration

    Robustel GoRugged R3000 Lite User Guide 3.30 System > Device Configuration Advanced Device Settings Item Description Default IP Passthrough Click to enable the IP Passthrough feature. Enable 3.31 System > User Management This section allows users to modify or add management user accounts.
  • Page 81 Robustel GoRugged R3000 Lite User Guide Click the “ ” button to add a new common user. Note: One router has 5 common user accounts at most. Common User Item Description Default Select from “Visitor” and “Editor”. Role Visitor: Users only can view the configuration of router under this level;...

  • Page 82: Chapter 4 Configuration Examples

    Robustel GoRugged R3000 Lite User Guide Chapter 4 Configuration Examples 4.1 Interface DB9 Female Connector Debug RS232 RS485 (2-wire) Direction Data+ (A) R3000 Lite  Device Device  R3000 Lite Device  R3000 Lite DRXS Data- (B) Device  R3000 Lite R3000 Lite ...

  • Page 83: Rs232

    Robustel GoRugged R3000 Lite User Guide 4.1.2 RS232 R3000 Lite supports one RS232 for serial data communication. Please refer to the connection diagram at the right site. 4.1.3 RS485 R3000 Lite supports one RS485 for serial data communication. Please refer to the connection diagram at the right site.

  • Page 84: Cellular

    Robustel GoRugged R3000 Lite User Guide 4.2 Cellular 4.2.1 Cellular Dial-Up This section shows users how to configure the primary and backup SIM card of Cellular Dial-up. Interface > Link Manager > General Setting Select WWAN1 as Primary Link. Click to set the WWAN1’s parameter according to the current ISP.
  • Page 85 Robustel GoRugged R3000 Lite User Guide The modifications will take effect after click “Submit” and “save and apply” button. Interface > Cellular Click to set the SIM card’s parameter according to the application requirement. The modifications will take effect after click “Submit” and “save and apply” button.

  • Page 86: Sms Remote Control

    Robustel GoRugged R3000 Lite User Guide 4.2.2 SMS Remote Control R3000 Lite supports remote control via SMS. User can use following commands to get the status of R3000 Lite, and set all the parameters of R3000 Lite. There are three authentication types for SMS control. You can select from “Password”, “Phonenum” and “Both”.
  • Page 87 Robustel GoRugged R3000 Lite User Guide <netmask>255.255.0.0</netmask> <mtu>1500</mtu> SMS cmd: set lan network 1 interface lan0 set lan network 1 ip 172.16.99.11 set lan network 1 netmask 255.255.0.0 set lan network 1 mtu 1500 The semicolon character (‘;’) is used to separate more than one commands packed in a single SMS.

  • Page 88: Network

    Robustel GoRugged R3000 Lite User Guide 4.3 Network 4.3.1 IPSEC VPN Note: the configuration of server and client is as follows. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 87 / 107 Confidential...
  • Page 89 Robustel GoRugged R3000 Lite User Guide IPSecVPN_SERVER: Cisco 2811: RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 88 / 107 Confidential...
  • Page 90 Robustel GoRugged R3000 Lite User Guide IPSecVPN_CLIENT: VPN > IPSec > Tunnel Then click “ ”. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 89 / 107 Confidential...
  • Page 91 Robustel GoRugged R3000 Lite User Guide The modification will take effect after clink Submit > Save & Apply > Reboot. The comparison between server and client is as following picture: RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 90 / 107 Confidential...

  • Page 92: Openvpn

    Robustel GoRugged R3000 Lite User Guide 4.3.2 OPENVPN Note: the configuration of two points is as follows. OPENVPN (p2p): Point 1 VPN > OpenVPN > OpenVPN Click “ ”. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 91 / 107 Confidential...
  • Page 93 Robustel GoRugged R3000 Lite User Guide The modifications will take effect after click “Submit > Save & Apply”. Point 2 VPN > OpenVPN > OpenVPN Click “ ”. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 92 / 107 Confidential...
  • Page 94 Robustel GoRugged R3000 Lite User Guide The modifications will take effect after click Submit > Save & Apply. RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 93 / 107 Confidential...

  • Page 95: Gre Vpn

    Robustel GoRugged R3000 Lite User Guide The comparison between point 1 and point 2 is as following picture: 4.3.3 GRE VPN RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 94 / 107 Confidential...
  • Page 96 Robustel GoRugged R3000 Lite User Guide VPN > GRE > GRE Click “ ”. GRE-1： The modifications will take effect after click Submit > Save & Apply. GRE-2: The modifications will take effect after click Submit > Save & Apply.
  • Page 97 Robustel GoRugged R3000 Lite User Guide The comparison between point 1 and point 2 is as following picture: RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 96 / 107 Confidential...

  • Page 98: Chapter 5 Introductions For Cli

    Robustel GoRugged R3000 Lite User Guide Chapter 5 Introductions for CLI 5.1 What’s CLI The R3000 Lite command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the SSH or through a telnet network connection.

  • Page 99: How To Configure The Cli

    Robustel GoRugged R3000 Lite User Guide 5.2 How to Configure the CLI Following is a list about the description of help and the error should be encountered in the configuring program. Commands /tips Description Typing a question mark “?” will show you the help information.
  • Page 100 Robustel GoRugged R3000 Lite User Guide Downloading R3000-firmware-s 100% |*******************************| 5018k 0:00:00 ETA Flashing Checking 100% Decrypting 100% Flashing 100% Verifying 100% Verfify Success upgrade success //update success # config save_and_apply // save and apply current configuration, make you configuration effect...
  • Page 101 Robustel GoRugged R3000 Lite User Guide link Link Settings # set link_manager primary_link (space+?) Enum Primary Link (wwan1/wwan2/wan) # set link_manager primary_link wwan1 //select “wwan1” as primary_link //setting succeed # set link_manager link 1 type Type desc Description connection_type Connection Type...
  • Page 102 Robustel GoRugged R3000 Lite User Guide id = 1 interface = lan0 ip = 192.168.0.1 netmask = 255.255.255.0 mtu = 1500 dhcp { enable = true mode = server relay_server = "" pool_start = 192.168.0.2 pool_end = 192.168.0.100 netmask = 255.255.255.0 gateway = ""...
  • Page 103 Robustel GoRugged R3000 Lite User Guide … # config save_and_apply // save and apply current configuration, make you configuration effect Example 5: CLI for setting Cellular # show cellular all sim { id = 1 card = sim1 phone_number = ""...
  • Page 104 Robustel GoRugged R3000 Lite User Guide band_select_type = all band_gsm_850 = false band_gsm_900 = false band_gsm_1800 = false band_gsm_1900 = false band_wcdma_850 = false band_wcdma_900 = false band_wcdma_1900 = false band_wcdma_2100 = false band_lte_800 = false band_lte_850 = false band_lte_900 = false...

  • Page 105: Commands Reference

    Robustel GoRugged R3000 Lite User Guide band_wcdma_850 WCDMA 850 band_wcdma_900 WCDMA 900 band_wcdma_1900 WCDMA 1900 band_wcdma_2100 WCDMA 2100 band_lte_800 LTE 800 (band 20) band_lte_850 LTE 850 (band 5) band_lte_900 LTE 900 (band 8) band_lte_1800 LTE 1800 (band 3) band_lte_1900 LTE 1900 (band 2)

  • Page 106: Glossary

    Robustel GoRugged R3000 Lite User Guide Glossary Abbreviations Description Alternating Current Access Point Name of GPRS Service Provider Network ASCII American Standard Code for Information Interchange Conformité Européene (European Conformity) CHAP Challenge Handshake Authentication Protocol Command Line Interface for batch scripting...
  • Page 107 Robustel GoRugged R3000 Lite User Guide kbps kbits per second L2TP Layer 2 Tunneling Protocol local area network Light Emitting Diode Machine to Machine Maximum Minimum Mobile Originated Mobile Station Mobile Terminated OpenVPN Open Virtual Private Network Password Authentication Protocol...
  • Page 108 Robustel GoRugged R3000 Lite User Guide VLAN Virtual Local Area Network Virtual Private Network VSWR Voltage Stationary Wave Ratio Wide Area Network RT_UG_R3000 LiteR_v.2.0.1 14.10.2016 107 / 107 Confidential...
