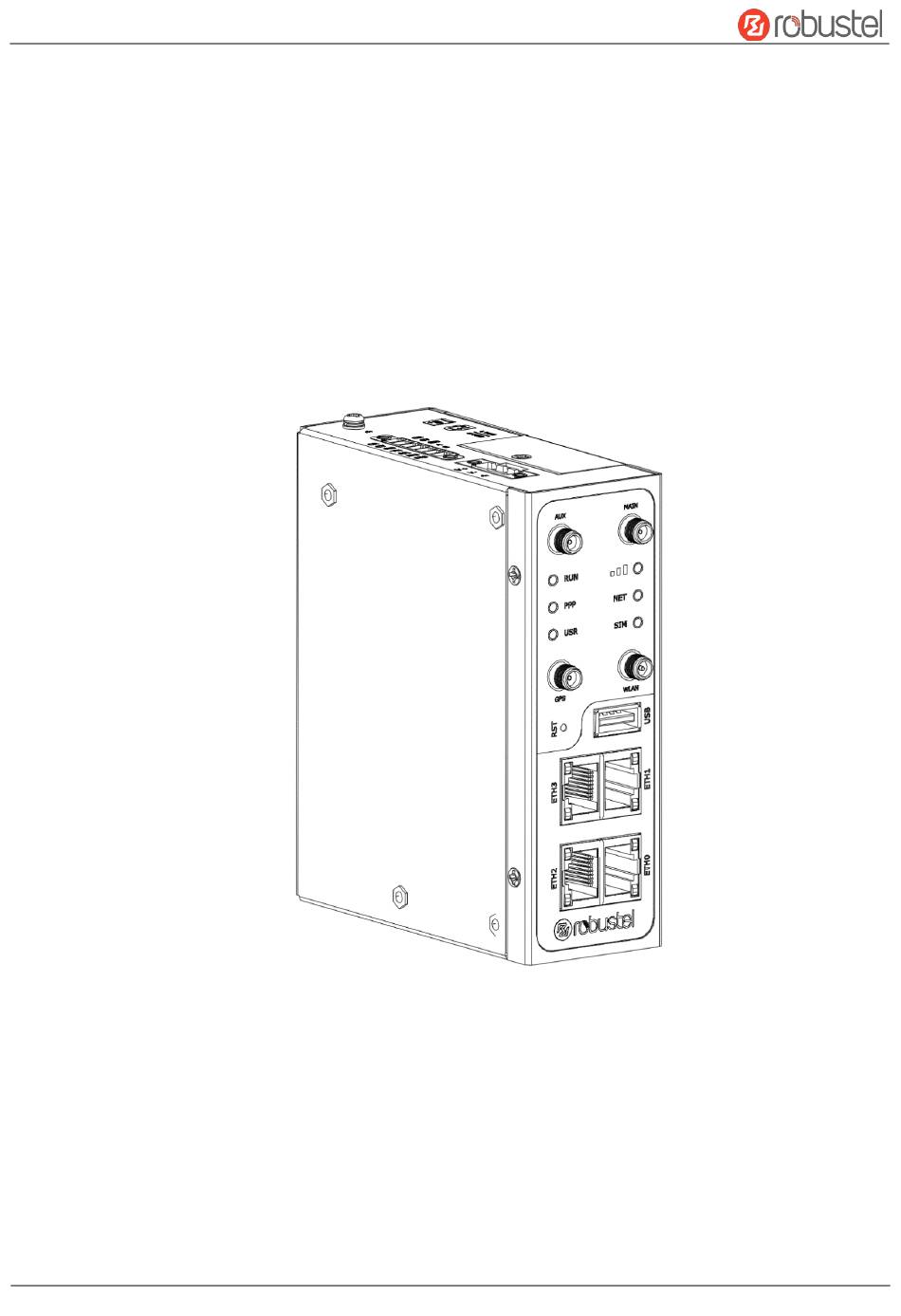

- Page 1 Robustel R3000 Quad Hardware Manual R3000 Quad Hardware Manual Version: 1.0.1 Date: Nov. 22, 2022 RT019_HM_R3000_Quad 1/11...
- Page 2 Robustel R3000 Quad Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts...
- Page 3 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
- Page 4 Robustel R3000 Quad Hardware Manual Safety Information General - The router generates radio frequency (RF) power. When using the router, care must be taken on safety issues related to RF interference as well as regulations of RF equipment. - Do not use your router in aircraft, hospitals, petrol stations or in places where using cellular products is prohibited.
- Page 5 Robustel R3000 Quad Hardware Manual Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description Aug. 03, 2022 5.0.0 1.0.0 Initial release. Nov. 22, 2022 5.0.0...

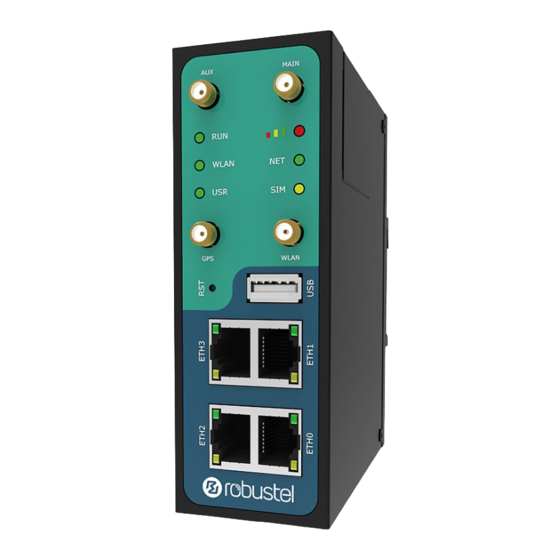

- Page 6 Robustel R3000 Quad Hardware Manual Overview The Robustel Industrial Cellular VPN Router with 4 Ethernet Ports (R3000 Quad) is a rugged cellular router offering state-of-the-art mobile connectivity for machine to machine (M2M) applications. Package Checklist Before commencing installation ensure your package has the following components:...
-
Page 7: Pin Assignment
Robustel R3000 Quad Hardware Manual Interface Descriptions PIN Assignment Debug RS-232 RS-485 Direction Router Device Router Device Data+(A) Router Device Router Device Data+(B) Router Device Router Device Polarity Positive Negative LED Indicator Name Color... -
Page 8: Reset Button
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. R3000 Quad Router has 4 Ethernet port with two LED indicators. The yellow one is link indicator and the green one is speed indicator. For details about status, see the table below. -
Page 9: Hardware Installation
Robustel R3000 Quad Hardware Manual Hardware Installation SIM Card Installation. Loosen the screws associated with the cover by using a screwdriver and then find the SIM card slot/Micro SD card slot. Press the card with finger until you hear a click and then tighten the screws associated with the cover by using a screwdriver. - Page 10 Robustel R3000 Quad Hardware Manual Terminal Block Installation. Insert the terminal blocks into the interfaces connector, then can connect the devices or sensors to the gateway via corresponding interfaces e.g. RS232/RS485, DIDO... Power Supply installation. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way.
- Page 11 Robustel R3000 Quad Hardware Manual Login to the Device After logging in, the home page of the web Connect the router’s Ethernet port to a PC with a interface is displayed, then you can view system standard Ethernet cable. information and perform configuration on the device.
