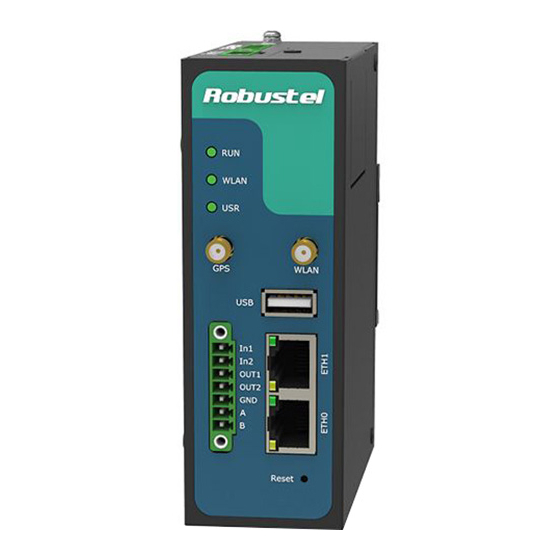

Robustel GoRugged R3000 Wireline User Manual

Industrial vpn router - 4 ethernet ports
Hide thumbs Also See for GoRugged R3000 Wireline:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

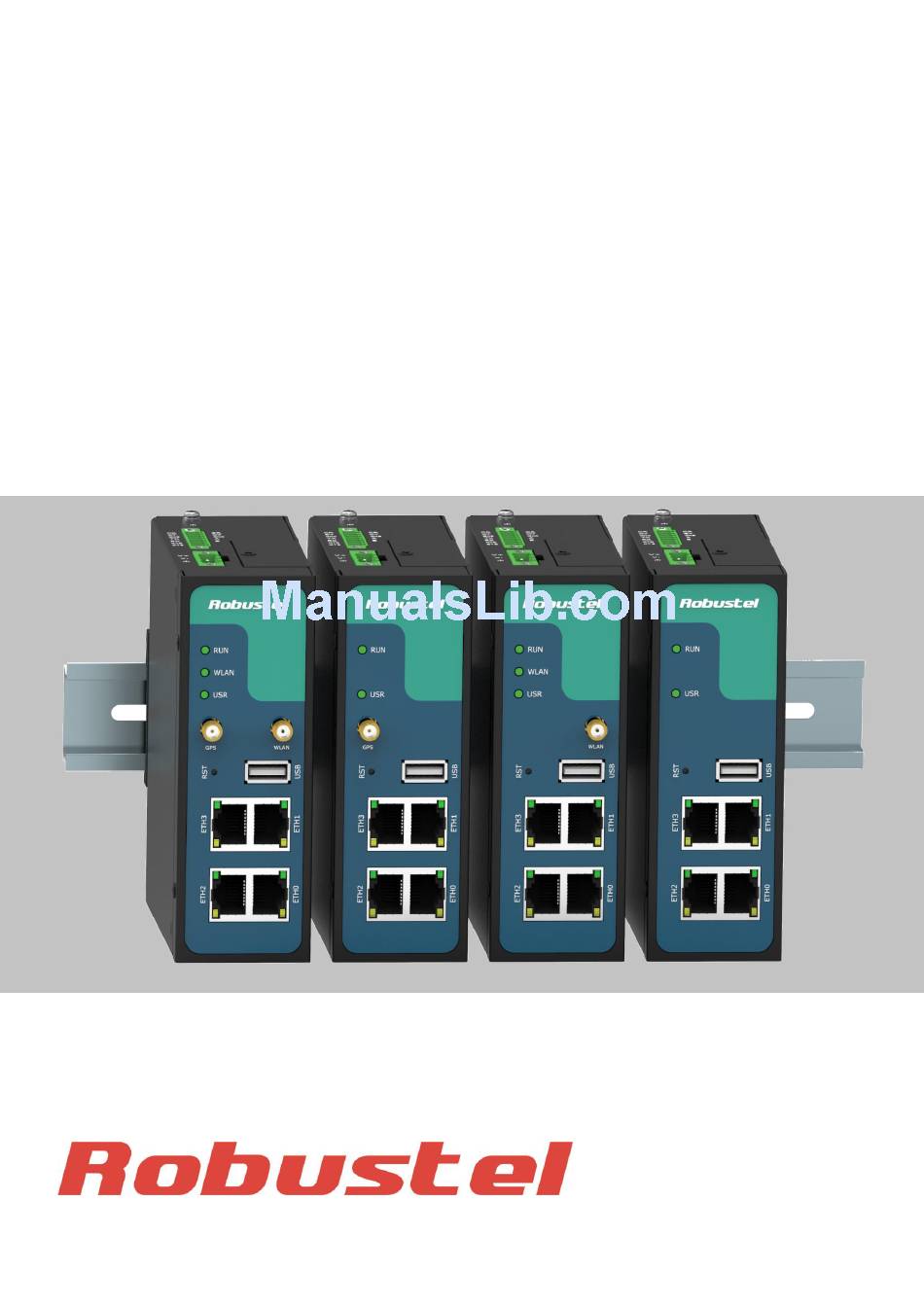

Robustel GoRugged R3000 Wireline
Industrial VPN Router - 4 Ethernet Ports

User Guide

Document Name:
User Guide
Firmware:
1.2.8
Date:
2015-07-02
Status:
Confidential
Doc ID:
RT_UG_R3000 Wireline- 4 Ethernet Ports_v.1.1.0
www.robustel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GoRugged R3000 Wireline and is the answer not in the manual?

Questions and answers

Related Manuals for Robustel GoRugged R3000 Wireline

Summary of Contents for Robustel GoRugged R3000 Wireline

  • Page 1: User Guide

    Robustel GoRugged R3000 Wireline Industrial VPN Router - 4 Ethernet Ports User Guide Document Name: User Guide Firmware: 1.2.8 Date: 2015-07-02 Status: Confidential Doc ID: RT_UG_R3000 Wireline- 4 Ethernet Ports_v.1.1.0 www.robustel.com...
  • Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of any kind resulting from the use of this document.
  • Page 3 Robustel accepts no responsibility for damages of any kind resulting from delays or errors in data transmitted or received using the router, or for failure of the router to transmit or receive such data.
  • Page 4 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Do not expose the router to extreme conditions such as high humidity / rain, high temperatures, direct sunlight,  caustic / harsh chemicals, dust, or water. Do not try to disassemble or modify the router. There is no user serviceable part inside and the warranty would ...
  • Page 5 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Regulatory and Type Approval Information Table 1: Directives Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and...
  • Page 6 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Revision History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Release Date Firmware Version Doc Version Details 2015-01-06 1.02.00 V1.0.0...

  • Page 7: Table Of Contents

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Contents Chapter 1 Product Concept ............................8 Overview ..............................8 Packing List ..............................8 Specifications ............................10 Selection and Ordering Data ........................12 Chapter 2 Installation ..............................13 LED Indicators ............................13 PIN assignment ............................
  • Page 8 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.28 Configuration -> Reboot ........................... 82 3.29 Configuration -> Portal ..........................82 3.30 Configuration -> Syslog ..........................84 3.31 Configuration -> Event ..........................84 3.32 Configuration -> USR LED ......................... 85 3.33...

  • Page 9: Chapter 1 Product Concept

    Chapter 1 Product Concept 1.1 Overview Robustel GoRugged R3000 Wireline is a rugged VPN router offering state-of-the-art secure connectivity for machine to machine (M2M) applications.  WAN link management: Ethernet WAN/WLAN WAN backup.  VPN tunnel: IPSec/OpenVPN/PPTP/L2TP/GRE.  Supports Modbus gateway (Modbus RTU/ASCII to Modbus TCP).
  • Page 10 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide  3-pin pluggable terminal block with lock for power connector x 1  7-pin pluggable terminal block with lock for serial port and console port x 1  CD with user guide x 1 Note: Please notify your sales representative if any of the above items are missing or damaged.

  • Page 11: Specifications

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide  AC/DC Power Supply Adapter (12VDC, 1.5A) x 1 (EU, US, UK, AU plug optional) 1.3 Specifications Ethernet Interface  Number of Ports: 4 x 10/100 Mbps, 3 LAN+1 WAN ...
  • Page 12 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide GLONASS: 30 s  Protocol: NMEA-0183 V2.3 Serial Interface  Number of Ports: 1 x RS-232 or 1 x RS-485  ESD Protection: ±15KV  Parameters: 8E1, 8O1, 8N1, 8N2, 7E2, 7O2, 7N2, 7E1 ...

  • Page 13: Selection And Ordering Data

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Physical Characteristics  Housing & Weight: Metal, 500g  Dimension: (L x W x H): 125 x 108 x 45 mm  Installation: 35mm Din-Rail or wall mounting or desktop Environmental Limits ...

  • Page 14: Chapter 2 Installation

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Chapter 2 Installation 2.1 LED Indicators With Wi-Fi Without Wi-Fi Name Color Status Function Blinking Router is ready. Green Router is starting. Router is power off. Blinking WLAN Indicator: Data is being transmitted.

  • Page 15: Pin Assignment

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 2.2 PIN assignment PIN assignment of R3000-QLA Debug RS232 Direction Device R3000 R3000  Device R3000  Device Device R3000 R3000  Device Device R3000 Power Digital I/O RS485 Positive...

  • Page 16: Usb Interface

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 2.3 USB interface USB interface is used for batch firmware upgrade, cannot used to send or receive data from slave devices which with USB interface. Users can insert a USB storage device, such as U disk or hard disk, into the router’s USB interface, if there is configuration file or firmware of R3000...

  • Page 17: Ethernet Ports

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 2.5 Ethernet ports Each Ethernet port has two LED indicators (please check the following picture). The yellow one is Speed indicator and the green one is Link indicator. There are three status of each indicator. For details please refer to the form below.

  • Page 18: Mount The Router

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 2.6 Mount the Router Two ways of mounting the router  Use 3 pcs of M3 screw to mount the router on the Wall mounting Kit. And then use 2 pcs of M3 screw to mount the Wall mounting Kit on the wall.

  • Page 19: Ground The Router

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 2.7 Ground the Router Grounding and wire router helps limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the ground by screwing to the grounding surface before connecting devices.

  • Page 20: Chapter 3 Configuration Settings Over Web Browser

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Chapter 3 Configuration settings over web browser The router can be configured through your web browser that include IE 8.0 or above, Chrome and Firefox. A web browser is included as a standard application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me/Vista/7/8, etc.
  • Page 21 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 4. Select Internet Protocol (TCP/IP) and click Properties. RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015 20 / 116 Confidential...

  • Page 22: Factory Default Settings

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 5. Select Obtain an IP address automatically and Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. 3.2 Factory Default Settings Before configuring your router, you need to know the following default settings.

  • Page 23: Control Panel

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.3 Control Panel This section allows users to save configuration, reboot router, logout and select language. Control Panel Item Description Button Save Click to save the current configuration into router’s flash.

  • Page 24: Status -> System

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Note: The steps of how to modify configuration are as bellow: 1. Modify in one page; 2. Click under this page; 3. Modify in another page; 4. Click under this page;...
  • Page 25 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Router Information Item Description Device Model Show the model name of this device Serial Number Show the serial number of this device Device Name Show the device name to distinguish different devices you have installed.

  • Page 26: Status -> Network

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.5 Status -> Network This section displays the router’s Network status, which include status of ETH0, ETH1, ETH2, ETH3, WLAN (AP mode)/WLAN (Client mode). Note: This information will be shown when R3000 Wireline enable WiFi feature and works as AP mode.

  • Page 27: Status -> Route

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.6 Status -> Route This section displays the router’s route table. 3.7 Status -> VPN This section displays the router’s VPN status, which includes IPSec, L2TP, PPTP, OpenVPN and GRE.

  • Page 28: Status -> Services

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.8 Status -> Services This section displays the router’s Services’ status, including VRRP, DynDNS, and Serial. RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015 27 / 116 Confidential...

  • Page 29: Status -> Event/Log

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.9 Status -> Event/Log This section displays the router’s event/log information. You need to enable router to output the log and select the log level first, then you can view the log information here. Also you can click Download System Diagnosing Data to download diagnose data.

  • Page 30: Configuration -> Link Management

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.10 Configuration -> Link Management This section allows users to set the WAN link and the related parameters. Link Management Item Description Default Selected from “Eth0”, “WiFi”. Primary Interface Eth0: Select to make Eth0 as the primary WAN link.

  • Page 31: Configuration -> Ethernet

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.11 Configuration -> Ethernet This section allows users to set the Ethernet WAN and LAN parameters. LAN Interface This section allows users to set the Ethernet LAN parameters. LAN Interface@Eth0@Ethernet...
  • Page 32 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Define the Netmask which the DHCP clients will obtain from DHCP Netmask Null server. Define the time which the client can use the IP address which obtained Lease Time from DHCP server.
  • Page 33 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide WAN Interface@Eth0@Ethernet Item Description Default WAN Interface Type Select from “Static IP”, “DHCP Client” and “PPPoE”. Null When select “Static IP”, user need to set the IP address, Netmask, Static IP Null Gateway, MTU and DNS server.
  • Page 34 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Client DHCP server and user do not need to set the Primary and Secondary DNS Server. 192.168.0.2/ Override DHCP Server Router will use the follow preset Netmask and Gateway instead of the 192.168.0.10...
  • Page 35 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide PPPoE PPPoE server. Remote IP Address @ PPPoE client will only accept the acknowledge from the PPPoE server Null PPPoE with this IP address. Authentication @ PPPoE Select from “Auto”, “PAP” and “CHAP” as the local ISP required.

  • Page 36: Configuration -> Wifi

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide VLAN VLAN trunk is a point-to-point link between two network devices that carries more than one VLAN. With VLAN trunk, user can extend the configured VLAN across the entire network.
  • Page 37 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Note: when R3000 Wireline enable WiFi feature and works as AP mode Note: when R3000 Wireline enable WiFi feature and works as Client mode Basic @ WiFi Item Description Default Enable WiFi Click to enable WiFi feature.
  • Page 38 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide wireless card can be connected to the router with an Ethernet cable to provide wireless connectivity to another AP. When R3000 Wireline is wanted to work as “Client” mode, please go to tab “Configuration” ->...
  • Page 39 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide should be complicated and as long as possible. For security reasons, this passphrase should only be disclosed to users who need it, and it should be changed regularly. When R3000 Wireline works as Client mode, enter access point’s passphrase which it wants to connect to.
  • Page 40 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Status @ WiFi Show MAC address of R3000 Wireline’s WiFi interface or the access BSSID Null point which R3000 Wireline connects to. Show SSID of R3000 Wireline’s WiFi interface or the access point which...

  • Page 41: Configuration -> Serial

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Address Show the MAC address of R3000 Wireline’s WiFi interface. Null Associated Clients @ AP Show current associated wireless client devices’ BSSID and IP address. Null mode Show current scan results of any wireless network (access point), such...
  • Page 42 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide  When Select Protocol “Transparent Over Rlink”:  When Select Protocol “Modbus Over Rlink”:  When Select Protocol “GPS Report”: RS232 @ Serial Item Description Default Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”,...
  • Page 43 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Modbus Over Rlink: Router will translate all data from RS232 serial port to Modbus TCP protocol data, and then send to Robustlink, after that Robustlink will forward the data to another destination site.
  • Page 44 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide None: Data in the buffer will be transmitted when the delimiter is received; the data also includes the delimiter characters. Strip: Data in the buffer is first stripped of the delimiter before being transmitted.
  • Page 45 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide  When Select Protocol “Transparent”:  When Select Protocol “Modbus”:  When Select Protocol “Transparent Over Rlink”:  When Select Protocol “Modbus Over Rlink”: RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015...
  • Page 46 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide RS485 @ Serial Item Description Default Select from “300”, “600”, “1200”, “2400”, “4800”, “9600”, “19200”, “38400”, Baud-rate 115200 “57600” , “115200”and “230400”. Data bit Select from “7” and “8”. Parity Select from “None”, “Odd”...
  • Page 47 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Transparent The Delimiter process field determines how the data is handled when a delimiter is received. Delimiter Process @ None: Data in the buffer will be transmitted when the delimiter is received;...

  • Page 48: Configuration -> Usb

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.14 Configuration -> USB This section allows users to set the USB parameters. Note: Users can insert an USB storage device, such as U disk and hard disk, into the router’s USB interface. If there is configuration file or firmware of R3000 Wireline inside the USB storage devices, R3000 Wireline will automatically update the configuration file or firmware.
  • Page 49 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide GPS Setting @ GPS Item Description Default Enable GPS Click to enable GPS function. Disable Report To RS232 Click to enable GPS report to RS232 serial port of router. Disable Select from “NMEA GGA+VTG”, “NMEA GGA+VTG+RMC”...
  • Page 50 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide connection request from TCP client. UDP: Router works as UDP client. Local Port @ TCP Server Set the local port number of TCP server. Server Address @ TCP Set the Server address of TCP server.

  • Page 51: Configuration -> Nat/Dmz

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Satellites In View Show how many satellites are in view. Show the UTC of satellites, which is world unified time, not local time. Null Latitude Show the latitude status of router.
  • Page 52 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Is Forwarded to IP The device’s IP on the LAN side which you want to forward the data to. Null Address Is Forwarded to Port The device’s port on the LAN side which you want to forward the data to.

  • Page 53: Configuration -> Firewall

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.17 Configuration -> Firewall This section allows users to set the firewall parameters. Basic @ Firewall Item Description Default Remote Access Using Enable to allow users to access the router remotely on the internet side via HTTP.
  • Page 54 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Filtering @ Firewall Item Description Default Select from “Accept” and “Drop”. Accept: Router will accept all the connecting requests except the hosts which fit Default Filter Policy the filter list.

  • Page 55: Configuration -> Qos

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide URL@ Blocking By Block the access according to the URL that filled in the blank. Null URL Address Blocking By Keywork Click “Add” to add a Keywork list. Null Keywork@ Blocking Block the access according to the Keywork that filled in the blank.
  • Page 56 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Item Description Default Enable QoS Click to enable “QoS” function. Disable Downlink Speed Prescribe downlink speed of router. (kbps) Note: Default setting“0” means that there is no limitation of downlink speed.
  • Page 57 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide shorter. Note: if user click to enable “Optimize for TCP Flags”, “Optimize for Serial Data Forwarding”, and “Optimize for ICMP” at the same time (these three services are in the same priority level), router will automatically start Stochastic Fairness Queueing (SFQ) strategy to make a fair bandwidth allocation, in case of one service occupy all the bandwidth.
  • Page 58 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Speed”, and the maximum rate can reach to 100% of “Downlink Speed”. Enter IP address of the user (for example, PC) who you want to set it with QoS Control. Router supports up to 20 users set with QoS IP Control. If want to IP Address @ QoS IP control one network segment, user can set “IP Address”...

  • Page 59: Configuration -> Ip Routing

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.19 Configuration -> IP Routing This section allows users to set the IP routing parameters. Static Route @ IP Routing Item Description Default Static Route Table Allow users to add, delete or modify static route rules manually.
  • Page 60 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide employs the hop count as a routing metric. RIP prevents routing loops by implementing a limit on the number of hops allowed in a path from the source to a destination.

  • Page 61: Configuration -> Dyndns

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide OSPF @ IP Routing Item Description Default OSPF (Open Shortest Path First) is a link-state routing protocol for IP networks. It OSPF uses a link state routing algorithm and falls into the group of interior routing Null protocols, operating within a single autonomous system (AS).

  • Page 62: Configuration -> Ipsec

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.21 Configuration -> IPSec This section allows users to set the IPSec parameters. IPSec Basic @ IPSec Item Description Default Tick to enable NAT Traversal for IPSec. This item must be enabled when router...
  • Page 63 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide IPSec Tunnel @ IPSec Item Description Default Click Add to add new IPSec Tunnel Null Enable Enable IPSec Tunnel, the max tunnel account is 3 Null IPSec Gateway Enter the address of remote side IPSec VPN server.
  • Page 64 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide ESP: Uses the ESP protocol. AH: Uses the AH protocol. Local Subnet Enter IPSec Local Protected subnet’s address. 0.0.0.0 Local Subnet Mask Enter IPSec Local Protected subnet’s mask. 0.0.0.0 Select from “IP Address”, “FQDN” and “User FQDN” for IKE negotiation.
  • Page 65 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide MODP1536_5: Uses the 1536-bit Diffie-Hellman group. Select from “PSK”, “CA”, “XAUTH Init PSK” and “XAUTH Init CA” to be used in IKE negotiation. Authentication PSK: Pre-shared Key. CA: Certification Authority.
  • Page 66 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Detection Enter the IP address or domain name or remote server. Router will ping ICMP Detection this address/domain name to check that if the current connectivity is Null Server active.

  • Page 67: Configuration -> Open Vpn

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.22 Configuration -> Open VPN This section allows users to set the Open VPN parameters. Client @ Open VPN Item Description Default Enable Enable OpenVPN Client, the max tunnel account is 3...
  • Page 68 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Select from “tun” and “tap” which are two different kinds of device interface for OpenVPN. Interface The difference between tun and tap device is this: a tun device is a virtual IP point-to-point device and a tap device is a virtual Ethernet device.
  • Page 69 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Server @ Open VPN Item Description Default Enable OpenVPN Tick to enable OpenVPN server tunnel. Disable Server Tunnel_OpenVPN_ Tunnel name Name the OpenVPN server tunnel. You can enter the IP address of Ethernet WAN or Ethernet LAN. Null Listen IP or 0.0.0.0 stands for using the active WAN link currently Ethernet...
  • Page 70 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide device. Select from four different kinds of authentication ways: “Pre-shared”, Authentication None “Username/Password”, “X.509 cert” and “X.509 cert+user”. Local IP Define the local IP address of OpenVPN tunnel. 10.8.0.1 Remote IP Define the remote IP address of OpenVPN tunnel.
  • Page 71 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide X.509 @ Open VPN Item Description Default Select Cert Type Select the OpenVPN client or server which the certification used for. Null Click “Browse” to select the correct CA file from your PC, and then click “Import”...

  • Page 72: Configuration -> Gre

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.23 Configuration -> GRE This section allows users to set the GRE parameters. Item Description Default Click “Add” to add a GRE tunnel. Click to enable GRE (Generic Routing Encapsulation). GRE is a protocol that...

  • Page 73: Configuration -> L2Tp

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.24 Configuration -> L2TP This section allows users to set the L2TP parameters. L2TP Client @ L2TP Item Description Default Click “Add” to add a L2TP client. You can add at most 3 L2TP clients.
  • Page 74 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Username Enter the username which was provided by your L2TP server. Null Password Enter the password which was provided by your L2TP server. Null Select from “Auto”, “PAP”, “CHAP”, “MS-CHAP v1” and “MS-CHAP v2”.
  • Page 75 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide L2TP Server @ L2TP Item Description Default Enable L2TP Server Tick to enable L2TP server. Disable Username Set the username which will assign to L2TP client. Null Password Set the password which will assign to L2TP client.

  • Page 76: Configuration -> Pptp

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide IP Pool End Set the IP pool end IP address which will assign to the L2TP clients. 10.0.0.100 Show L2TP Server Tick to show the L2TP server advanced setting. Disable...
  • Page 77 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide PPTP Client @ PPTP Item Description Default Click “Add” to add a PPTP client Enable Enable PPTP Client. The max tunnel accounts are 3. Null Disable Disable PPTP Client. Null Remote IP Address Enter your PPTP server’s public IP or domain name.
  • Page 78 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Set the IP address of the PPTP client. Local IP You can enter the IP which assigned by PPTP server. Null means PPTP client Null will obtain an IP address automatically from PPTP server’s IP pool.
  • Page 79 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide PPTP Server @ PPTP Item Description Default Enable PPTP Server Tick to enable PPTP server. Disable Username Set the username which will assign to PPTP client. Null Password Set the password which will assign to PPTP client.

  • Page 80: Configuration -> Snmp

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Maximum Transmission Unit. It is the identifier of the maximum size of 1436 packet, which is possible to transfer in a given environment. Specify the interval between PPTP client and server.
  • Page 81 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide View @ SNMP Item Description Default View Name Enter the View Name Null View Filter Select from “Include” and “Exclude”. Include View OID Enter the Object Identifiers (OID) Null VACM @ SNMP...

  • Page 82: Configuration -> Vrrp

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Trap @ SNMP Item Description Default Enable SNMP Trap Click to enable SNMP Trap feature. Disable Version Select from “SNMPv1”, “SNMPv2” and “SNMPv3”. SNMPv2 Server Address Enter SNMP server’s IP address.

  • Page 83: Configuration -> Reboot

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 3.28 Configuration -> Reboot This section allows users to set the Reboot policies. Time @ Reboot Item Description Default Enable daily reboot, you should follow ahh:mm,24h time frame, or the data will...
  • Page 84 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Robustlink @ Portal Item Description Default Server address Enter IP address of RobustLink. Null Port Enter port number of RobustLink. 1883 Enter the password preset in RobustLink. Password Null Note: The passwords set in R3000 and RobustLink need to be the same.

  • Page 85: Configuration -> Syslog

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Password, Device Cumulosity. Default settings will be ok. After settings are activated, R3000 will Name, Device ID (S), update information to Cumulosity automatically. KeepAlive GpsGate@Portal GpsGate Connect to GpsGate portal. You should configure the GpsGPS Setting at first.

  • Page 86: Configuration -> Usr Led

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Event Item Description Default Click to enable Event feature. This feature is used to report R3000 Wireline’s main running event to SNMP-TRAP or RobustLink. There are numbers of Event code you can select, Enable Event such as “BOOT-UP”, “3G-UP”, “3G-DOWN”, etc.

  • Page 87: Configuration -> Robustvpn

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide USR LED Item Description Default USR LED Type Select from “VPN”, “PPPoE”, “DynDNS” and “GPS”. Select from “ON”, “Blink”. Indication For example, if “USR LED Type” is set as “VPN” and “Indication” is set as “Blink”, when any VPN tunnel is up USR LED will blink.

  • Page 88: Administration -> Tools

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Profile Item Description Default This item allow users store different configuration profiles into different positions; or save one configuration profile into different positions just for Profile Standard configuration data backup.
  • Page 89 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Ping @ Tools Item Description Default Ping IP address Enter the ping destination IP address or domain name. Null Number of requests Specify the number of ping requests. Timeout Specify timeout of ping request.
  • Page 90 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Traceroute @ Tools Item Description Default Trace Address Enter the trace destination IP address or domain name. Null Specify the max trace hops. Router will stop tracing if the trace hops has met Trace Hops max value no matter the destination has been reached or not.
  • Page 91 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Sniffer @ Tools Item Description Default Select form “all”, “lo”, “imq0”, “imq1”, “eth0”, “gre0”: all: contain all the interface; lo: Local Loopback interface; Interface imq0/1: virtual interface for QoS, which used to limit the download and upload speed;...

  • Page 92: Administration -> Clock

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Test @ Tools Item Description Default Click “Enable” to select the hardware component whose status you want to Enable Enable check. Select from “SD Test”, “USB Test”, “Flash Test”, “Memory Test”, “Ethernet Test”, Description “SIM1 Test”, “SIM2 Test”...

  • Page 93: Administration -> Web Server

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Clock Item Description Default Real Time Clock Router’s RTC can be showed and modified in this field. Null PC Time You PC’s time can be showed here. Null Synchronize Synchronize router’s RTC with PC.

  • Page 94: Administration -> User Management

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Basic @ Web Server Item Description Default Enter the HTTP port number you want to change in R3000 Wireline’s Web Server. On a Web server, port 80 is the port that the server "listens to" or expects to HTTP Port receive from a Web client.

  • Page 95: Administration -> Sdk Management

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Super @ User Management Item Description Default One router has only one super user account. Under this account, user has the Super Admin highest authority include modify and add management user accounts.

  • Page 96: Administration -> Update Firmware

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide APP @ SDK Management Item Description Default Import Applications Click to import APP files in this item. Null This list shows which APP files you have imported to the router, which APP file you want to start up, as well as the running information.
  • Page 97 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Update Item Description Default Firmware Version Show the current firmware version. Null Show the old firmware version of the router. Firmware Old Version Click “Apply” button to fall back to the old version, after updating successfully, you need to reboot router to take effect.

  • Page 98: Chapter 4 Configuration Examples

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Chapter 4 Configuration Examples 4.1 Interface 4.1.1 Console port User can use the console port to manage the router via CLI commands, please check section Introductions for CLI. RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015...

  • Page 99: Rs232

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 4.1.2 RS232 R3000 Wireline-4 Ethernet Ports supports one RS232 (without RS485) for serial data communication. Please refer to the connection diagram at the right site. 4.1.3 RS485 R3000 Wireline-4 Ethernet...

  • Page 100: Network

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 4.2 Network 4.2.1 NAT This section shows users how to set the NAT configuration of router. Parameter Remote IP defines if access is allowed to route to the Forwarded IP and Port via WAN IP and “Arrives At Port”.

  • Page 101: L2Tp

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 4.2.2 L2TP L2TP_SERVER: Configuration--->L2TP--->L2TP Server Tick “Enable L2TP Server”, and fill in the blank textbox RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015 100 / 116 Confidential...

  • Page 102: Pptp

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide The modification will take effect after “Apply-->Save-->Reboot”. Note The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel.
  • Page 103 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Note The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel.

  • Page 104: Ipsec Vpn

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide The modification will take effect after “Apply-->Save-->Reboot”. 4.2.4 IPsec VPN Note The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel.
  • Page 105 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Note Polices 1,4,6,7 are default for Cisco router and do not display at the CMD IPsecVPN_CLIENT: Configuration--->IPSec--->IPSec Basic Then click “Apply”. Configuration--->IPSec--->IPSec Tunnel Tick “Enable IPSec Tunnel1” RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015...
  • Page 106 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide The modification will take effect after “Apply-->Save-->Reboot”. RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015 105 / 116 Confidential...

  • Page 107: Openvpn

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 4.2.5 OpenVPN Note: The following diagrams with red color numbers mean these are the matches between server and client, and with the blue color number means it must be set locally for the tunnel.
  • Page 108 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide The modifications will take effect after click “Apply-->Save-->Reboot”. OPENVPN_CLIENT: Configuration--->OpenVPN--->Client Tick “Enable OpenVPN Client1”, and fill in the blank textbox RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015 107 / 116...
  • Page 109 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide The modification will take effect after “Apply-->Save-->Reboot”. RT_UG_R3000 Wireline- 4 Ethernet Ports _v.1.1.0 02.07.2015 108 / 116 Confidential...

  • Page 110: Chapter 5 Introductions For Cli

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Chapter 5 Introductions for CLI 5.1 What’s CLI and hierarchy level Mode The R3000 Wireline command-line interface (CLI) is a software interface providing another way to set the parameters of equipment from the console or through a telnet network connection. There are four different CLI hierarchy level modes which have different access rights: User exec mode—The command prompt “>”...
  • Page 111 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Password: ***** R3000 Wireline# ? //check what commands can be used in Privileged exec mode debug Debug configure information enable Turn on privileged commands exit Exit from current mode export...

  • Page 112: How To Configure The Cli

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide 5.2 How to configure the CLI Following is a list about the description of help and the error should be encountered in the configuring program. Commands /tips Description Typing a question mark “?” will show you the help information.
  • Page 113 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide R3000 Wireline# write //save current configuration Building configuration... R3000 Wireline#reload !Reboot the system?'yes'or 'no':yes //reload to take effect Example 3: Set link-management R3000 Wireline> enable Password: ***** R3000 Wireline# R3000 Wireline# configure...

  • Page 114: Commands Reference

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide ICMP detection interval : 30 seconds ICMP detection timeout : 3 seconds ICMP detection retries reset the interface : no ********************************************* R3000 Wireline # configure R3000 Wireline (config) # set eth0...

  • Page 115: Glossary

    Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide Show current configuration of each function , if we need to see Show Show parameters all please using “show running ” All the function parameters are set by commands set and add,...
  • Page 116 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide generic route encapsulation Global System for Mobile Communications HSPA High Speed Packet Access identification data IMEI International Mobile Equipment Identification Internet Protocol IPSec Internet Protocol Security kbps kbits per second...
  • Page 117 Robustel GoRugged R3000 Wireline - 4 Ethernet Ports User Guide SNMP Simple Network Management Protocol TCP/IP Transmission Control Protocol / Internet Protocol Terminal Equipment, also referred to as DTE Transmit Direction UART Universal Asynchronous Receiver-transmitter UMTS Universal Mobile Telecommunications System...
