Robustel R5020 Hardware Manual
R5020
Hardware Manual
Version: 1.0.0
Date: July 6, 2022
RT064_HM_R5020
1/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5020 and is the answer not in the manual?

Questions and answers

Related Manuals for Robustel R5020

Summary of Contents for Robustel R5020

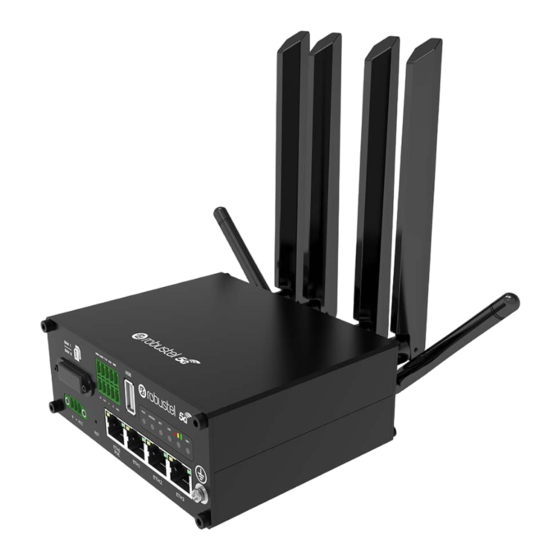

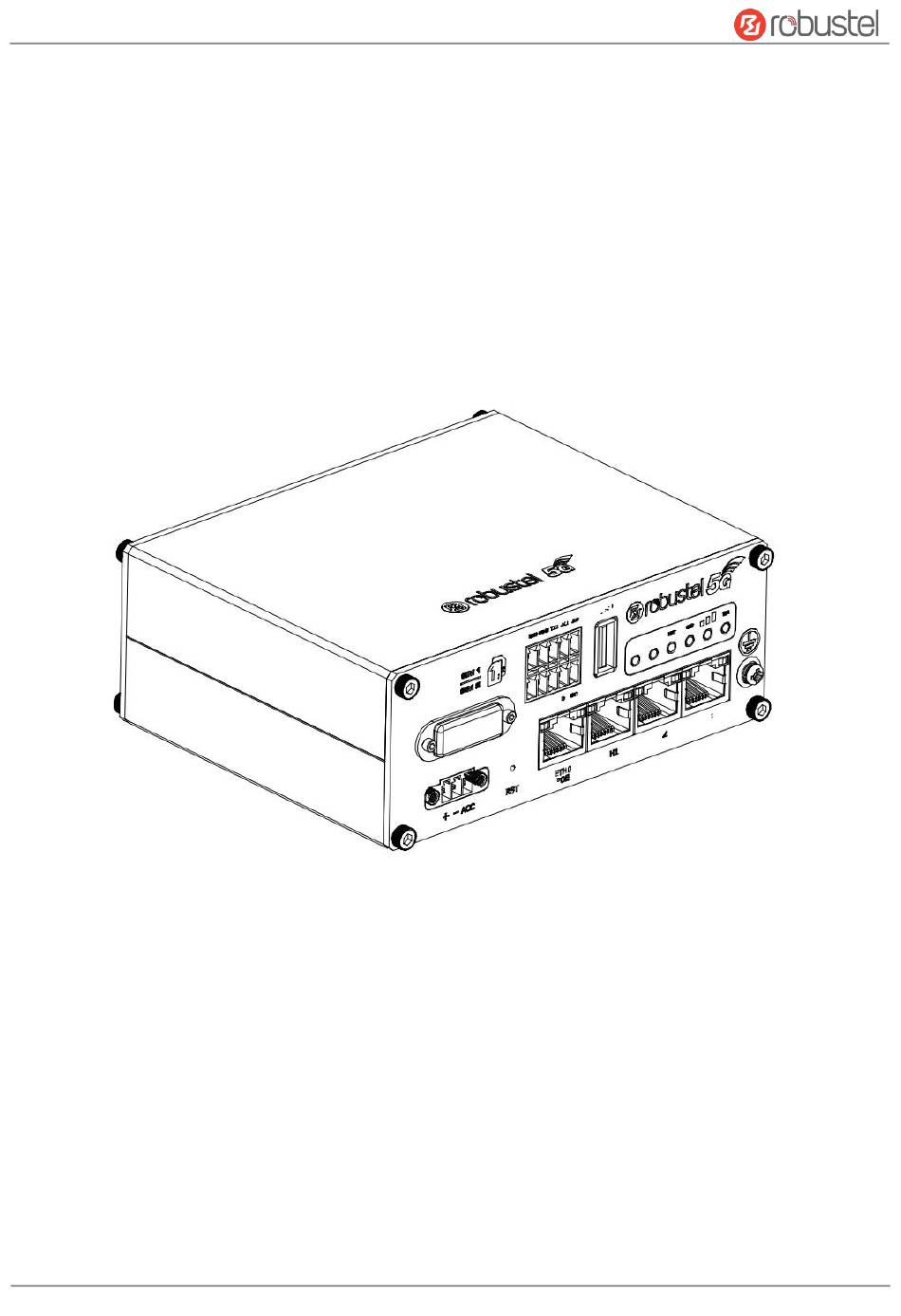

  • Page 1 Robustel R5020 Hardware Manual R5020 Hardware Manual Version: 1.0.0 Date: July 6, 2022 RT064_HM_R5020 1/10...
  • Page 2 Robustel R5020 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit...
  • Page 3 Simplified EU Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with all applicable EU directives. The full text of the EU DoC is available at the following internet address: www.robustel.com/certifications/...
  • Page 4 Robustel R5020 Hardware Manual Document History Updates between document versions are cumulative. Therefore, the latest document version contains all updates made to previous versions. Date Firmware Version Document Version Change Description July 6, 2022 5.0.0 1.0.0 Initial release. RT064_HM_R5020 4/10...
  • Page 5 Robustel R5020 Hardware Manual Overview Robustel R5020 supports WCDMA 3G network, LTE 4G network, and 5G network to provide high-speed wireless network bandwidth for devices through wireless connection, and it has dual-SIM card backup to ensure stable wireless network connection.

  • Page 6: Interface Descriptions

    Robustel R5020 Hardware Manual Interface Descriptions Power Supply. 3PIN 3.5mm pitch terminal block. Description Note Connect adapter or battery positive (red line) Connect adapter or battery negative (yellow line) Car ignition and flameout detection (green line) Note: when the car ignition and flameout detection function...

  • Page 7: Reset Button

    Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are four Ethernet ports on R5020, including ETH0 (Optional POE supported), ETH1, ETH2, ETH3. The ETH0 on the router can be configured as a WAN port, while ETH1, ETH2 and ETH3 can only be configured as a LAN port.

  • Page 8: Hardware Installation

    Robustel R5020 Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Here take the cellular antenna as example.
  • Page 9 Robustel R5020 Hardware Manual 5. Grounding the Device. Grounding will help to prevent the noise effect due to electromagnetic interference (EMI). Connect the device to the site ground wire by the grounding screw before powering on. 6. Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector.
  • Page 10 Robustel R5020 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
