Robustel GoRugged R3000 Quick Guide
Robustel GoRugged R3000 Quick Guide

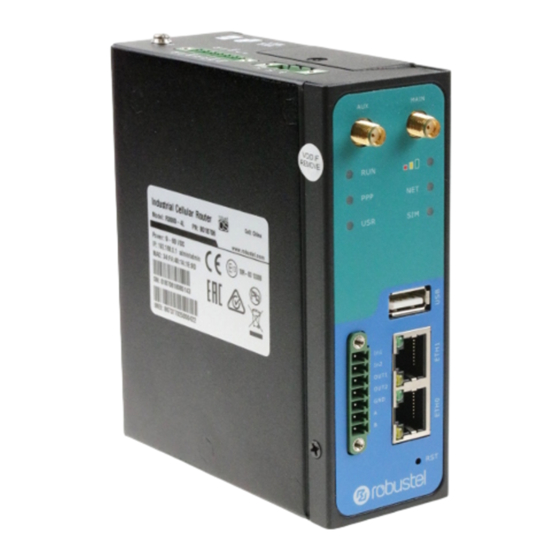

Chapter1. Interface Introduction

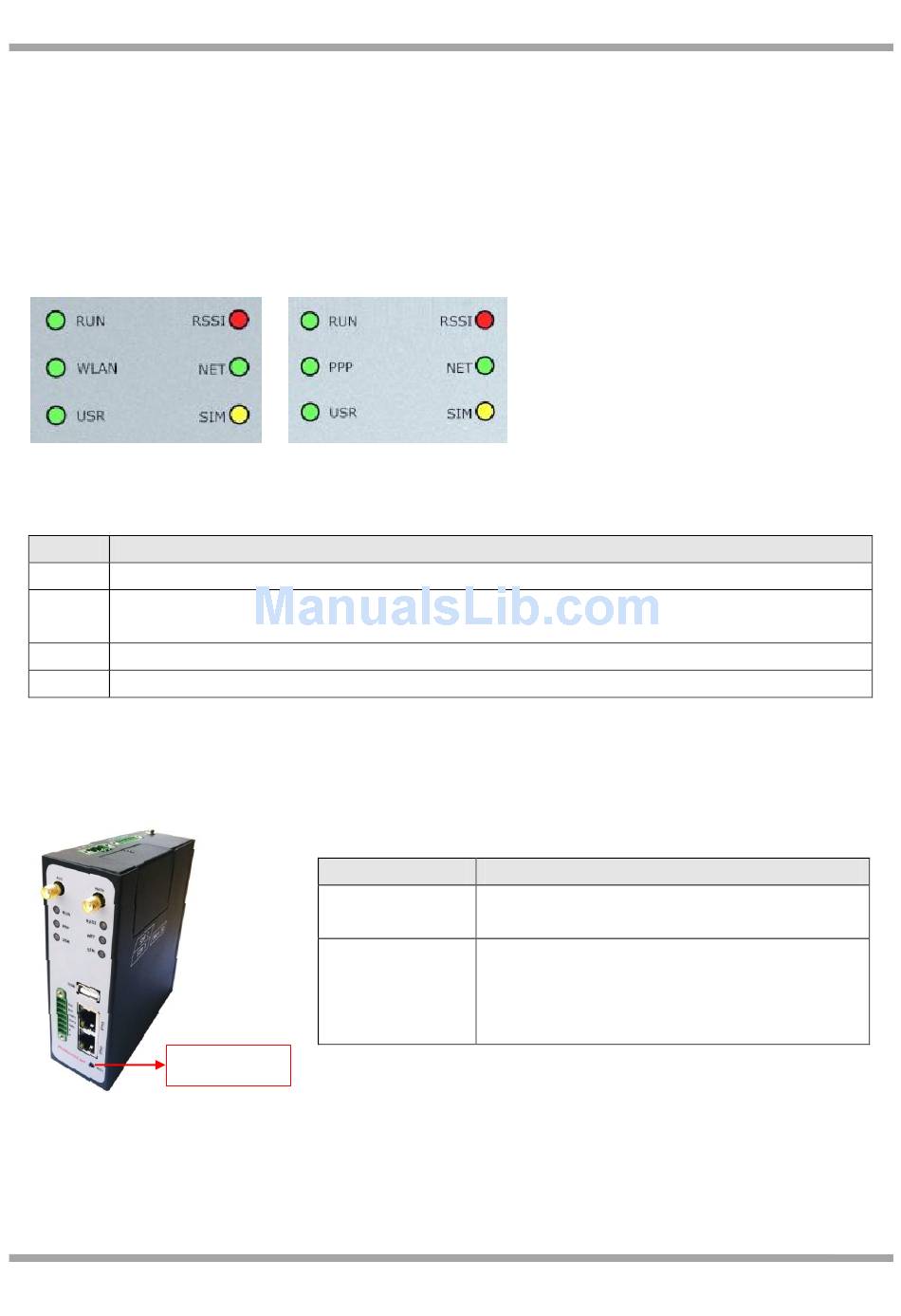

1.1 LED Indicators

After inserting the SIM card into the router and power on, the LED indicators' status should be as follow when work
normally:
Name
Status
RUN
Blinking
PPP connection is up: On
PPP
PPP connection is down: Off
RSSI
At least 2 bars
SIM
On
：
Note
Please refer to Robustel GoRugged R3000 User Guide to get more details about all the LED indicators.

1.2 Reset Button

RT_QG_R3000_v.1.0.0
Function
Reboot
Restore to factory
default setting
Reset Button
Operation
Push the button for 5 seconds under working
status.
Push the button for 60 seconds once you power
on the router until all the three LEDs at the left
side (RUN, PPP, USR) blink at the same time for 5
times.
25.01.2014
1/8
