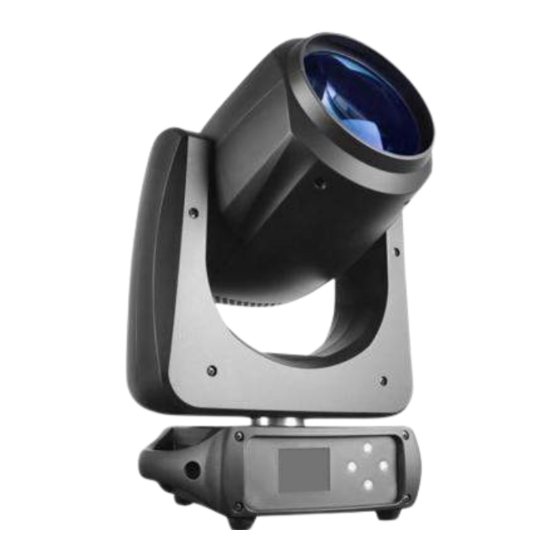

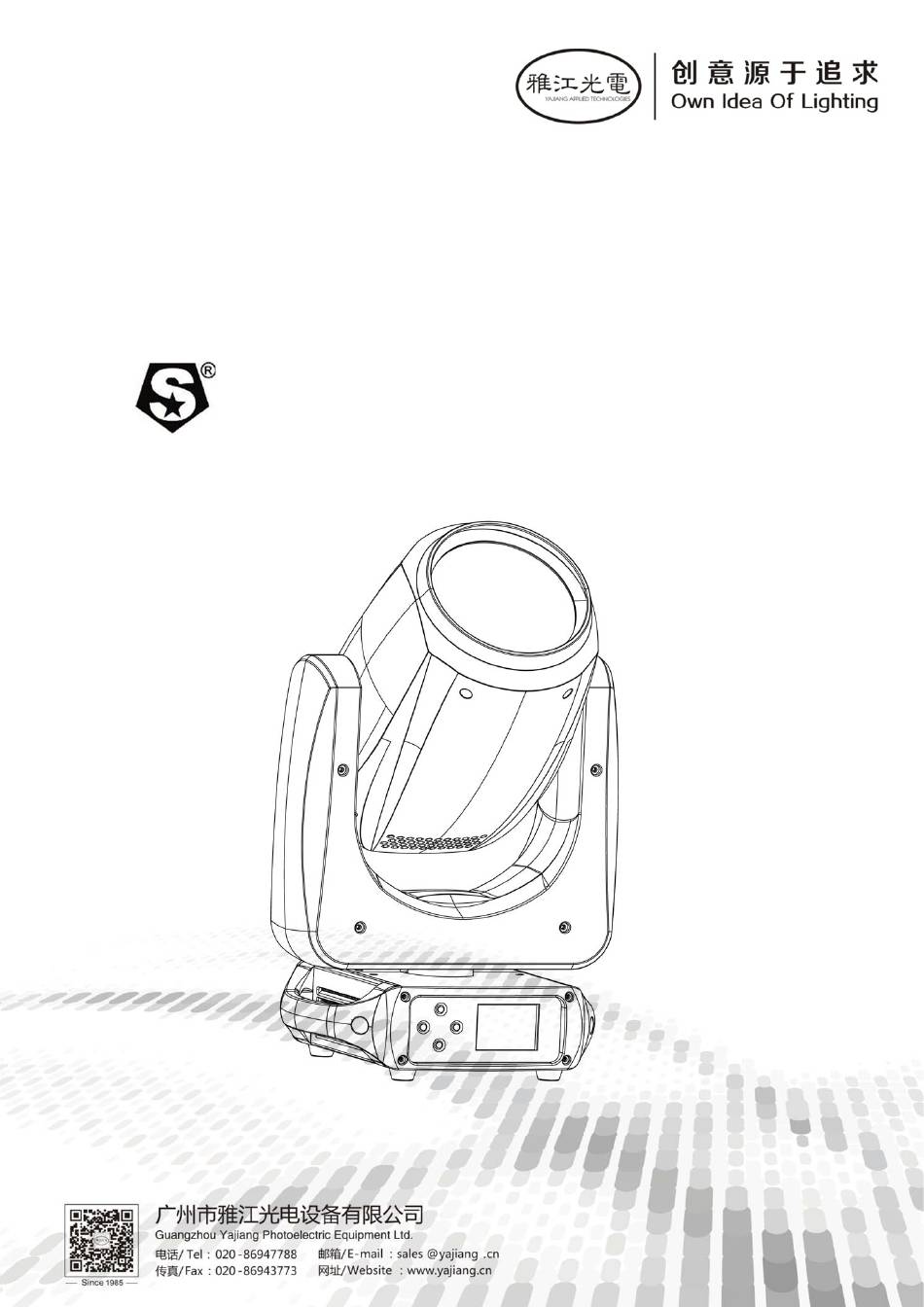

- Page 1 PLUTO BEAM USER MANUAL PLUTO BEAM SS9151 MODEL: SS9151SC...
-
Page 2: Technical Specifications
PLUTO BEAM SS9151 1 PRODUCT 1.1 TECHNICAL SPECIFICATIONS Type SS9151SC LED colors 130W Cool White LED Power 200W Voltage Range AC100~240V,50/60Hz Protection IP20 Operation Temperature 0℃~45℃ Dimensions 330x249x521mm Weight 15kg... - Page 3 PLUTO BEAM SS9151 1.2 Safety Notes IMPORTANT ． ． ． ． ． ． ． ． ． This product must be installed by a qualified professional. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary ...
- Page 4 PLUTO BEAM SS9151 Keep the product well away from flammable materials ． ． ． ． ． ． ．． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ．． ． ． ．． ． ． ． ．． ． ． ． ． ． ． ． ． Keep all combustible materials (e.g.
-
Page 5: Installation
PLUTO BEAM SS9151 2 INSTALLATION 2.1 MOUNTING Truss installation ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． Keep all combustible materials (e.g. fabric, wood, paper) at least 500 mm (20 in.) away from ... -
Page 6: Power Connections
PLUTO BEAM SS9151 2.2 POWER CONNECTIONS This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz. 2.3 Data network requirements Connect the DMX512 controller to the units in series. A DMX 512 data link is required in ... -
Page 7: Functions And Settings
PLUTO BEAM SS9151 3 FUNCTIONS AND SETTINGS 3.1 DISPLAY OPERATION Up：Scroll‘Up’through the menu list or increase the value of the current function. Down：Scroll ‘Down’ through the menu list or decrease the value of the current function. Left(Back)：Scroll through the main menu. ... - Page 8 PLUTO BEAM SS9151 DIM3 (slow) DIM2 DIM1 Sets the PWM frequency 1200Hz (Default) 2000Hz 2400Hz LED PWM 4000Hz 6000Hz 25000Hz SAVE (Default) Hold after loss of DMX signal ERROR BLACK Blackout after loss of DMX signal Display reverse off (Default) DISPLAY INVERT Display reverse on...
- Page 9 PLUTO BEAM SS9151 FIXED GOBO 0-255 PRISM1 0-255 PRISM2 0-255 FOCUS 0-255 RAINBOW.D 0-255 RAINBOW.R 0-255 DIMMER 0-255 STROBE 0-25 TIME 0-255 YES/NO Select YES to run the steps user need. Auto Test Auto Test YES/NO Auto Test channel 0-255 Manual control channel 0-255 TILT...
- Page 10 PLUTO BEAM SS9151 TILT SENSOR TILT SENSOR TILT ENCODER TILT ENCODER TILT DRIVEIC TILT DRIVEIC TEMPERATURE TEMPERATURE COLOR RESET COLOR RESET FGOBO RESET FGOBO RESET PRISM1 RESET PRISM1 RESET PRISM2 RESET PRISM2 RESET FOCUS RESET FOCUS RESET RAINBOW RESET RAINBOW RESET ±127 Pan position fine adjustment TILT...
-
Page 11: Using A Dmx512 Controller
PLUTO BEAM SS9151 4 USING A DMX512 CONTROLLER 4.1 DMX CONTROL BASIC STANDARD Extend Value Function (18CH) （13CH) （15CH) CH.1 CH.1 CH.1 000-255 PAN 0-540° CH.2 CH.2 000-255 PAN FINE CH.2 CH.3 CH.3 000-255 TILT 0-270° CH.4 CH.4 000-255 TILT FINE CH.3 CH.5 CH.5... - Page 12 PLUTO BEAM SS9151 103-110 FIXED GOBO 14 111-118 FIXED GOBO 1 SHAKE (SPEED 1 —> 100%) 119-126 FIXED GOBO 2 SHAKE (SPEED 1 —> 100%) 127-134 FIXED GOBO 3 SHAKE (SPEED 1 —> 100%) 135-142 FIXED GOBO 4 SHAKE (SPEED 1 —> 100%) 143-150 FIXED GOBO 5 SHAKE (SPEED 1 —>...
- Page 13 PLUTO BEAM SS9151 CH.11 CH.13 CH.15 0-255 DIMMER CH.16 0-255 DIMMER FINE STROBE NO FUNCTION 10-99 STROBE（FROM SLOW TO FAST） CH.12 CH.14 CH.17 100-109 NO FUNCTION 110-179 LIGHTNING STROBE 180-189 NO FUNCTION 190-255 RANDOM SROBE CONTROL(EXECUTE AFTER 3 SECONDS) 000-010 NO FUNCTION 011-020 PAN/TILT BLACK ACTIVATED...
- Page 14 PLUTO BEAM SS9151 VALUE FUCTION (16CH) COLOUR WHELL9+1 000-007 WHITE 008-013 COLOR1 014-019 COLOR2 020-025 COLOR3 026-031 COLOR4 032-037 COLOR5 CH.1 038-043 COLOR6 044-049 COLOR7 050-055 COLOR8 056-063 COLOR9 064-191 COLOR WHELL10-360° 192-222 COLOR WHELL1 RAINBOW EFFECT(SPEED 100%→1) 223-224 STOP 225-255 COLOR WHELL1 RAINBOW EFFECT(SPEED 1→100%) STROBE...
- Page 15 PLUTO BEAM SS9151 56-59 FIXED GOBO 14 60-72 NO FUNCTION 72-113 STATIC GOBO POSITIVE WATER EFFECT (SPEED 100 —> 1%) 114-117 STOP WATER EFFECT 118-159 STATIC GOBO REVERSE WATER EFFECT (SPEED 1 —> 100%) 160-166 FIXED GOBO 2 SHAKE (SPEED 1 —> 100%) 167-172 FIXED GOBO 3 SHAKE (SPEED 1 —>...
- Page 16 PLUTO BEAM SS9151 CH.10 0-255 CH.11 0-255 PAN FINE CH.12 0-255 TILT CH.13 0-255 TILT FINE FUNCTION 000-010 NO FUNCTION 011-020 PAN/TILT BLACK ACTIVATED 021-030 PAN/TILT BLACK DEACTIVATED 031-040 PAN INVERT 041-050 TILT INVERT 051-060 PAN/TILT INVERT OFF 061-070 STUDIO 071-080 POWER 081-090...
