APPLIANCE DESCRIPTION

BWT AQA DRINK DROP is an ELECTRONIC TAP
ELECTRONIC TAP : these are connected to remote chillers distant from the dispensing point (the latter usually
represented by a "tower") to which they are connected via a refrigerate pipes.
A solenoid valve box should be connected between the electronic faucet and the dispenser as shown in the diagram
below.
To the solenoid valve box will come the Ø6mm pipes from the ambient/chilled and sparkling water dispenser and the pipe
to be connected to the electronic faucet will come out.
Between the solenoid valve box and the electronic faucet must also be connected the supplied 5-pin electrical connector
for lighting and button operation.
The solenoid valve box must be powered at 230v .
If recirculation is provided, it has a pump located inside the chiller draws cold water from the tank and pushes it through
one of the recirculation tubes to the column. Once it reaches the column, through a special fitting the water returns through
the second pipe to the chiller. This continuous flow of cold water keeps the python at an optimal temperature.
Undercounter devices are widely used both because of their versatility and because there are many aesthetic column
solutions available on the market.
Restrictions on use
It is absolutely forbidden to connect the appliance to sources of water other than drinking. Do not use the appliance to
dispense volumes of water greater than those indicated in the technical specifications.
Environmental conditions
While waiting for installation, the appliance must be stored in
40°C.
Maximum humidity without condensation 80%.
At the time of installation and
data sheet (see table below)

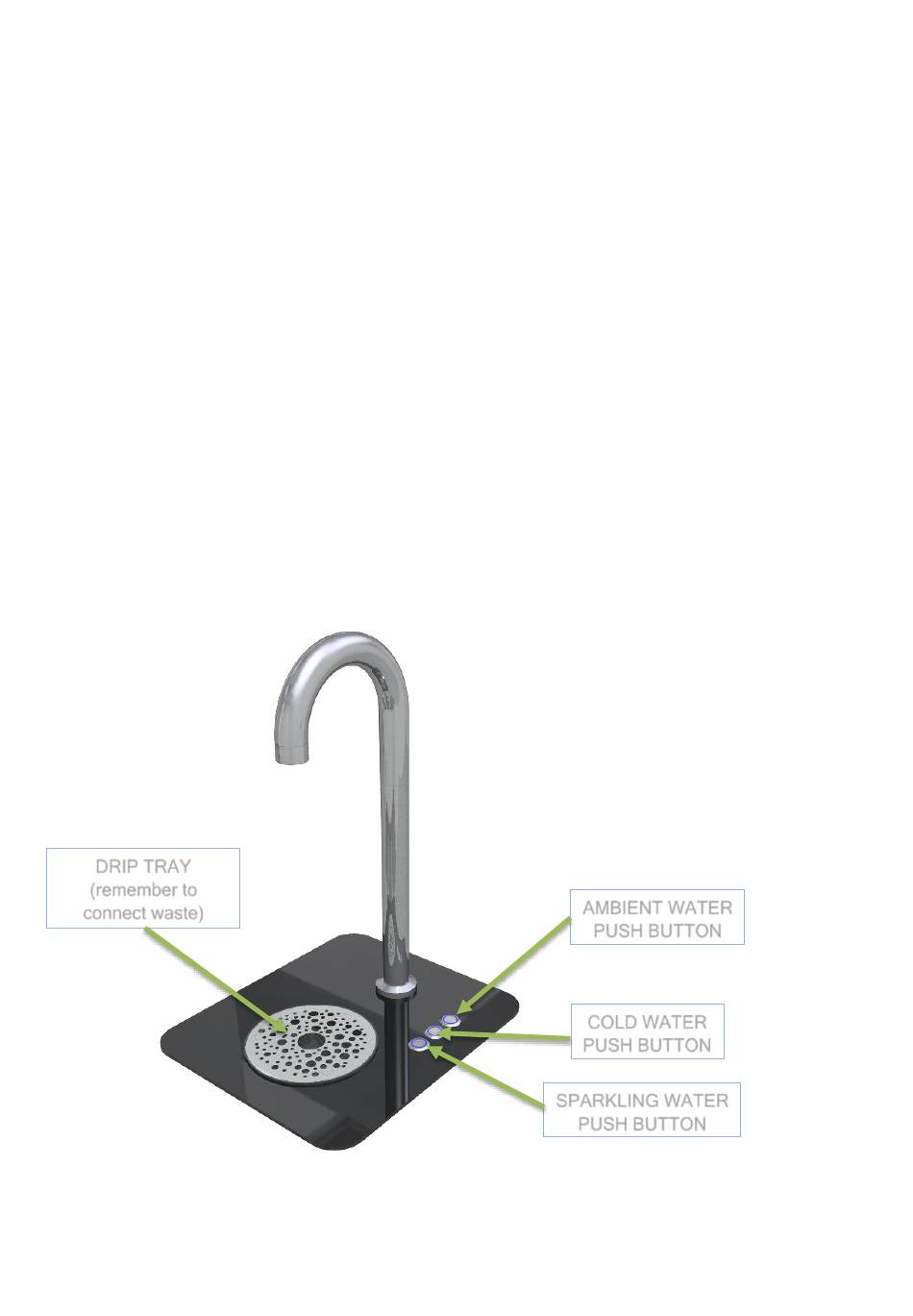

DRIP TRAY
(remember to
connect waste)
.
commissioning, the environmental
Rev.0 – Issue 07/2024
an upright position at an ambient temperature between
conditions must be those indicated on the attached technical
AMBIENT WATER
PUSH BUTTON
COLD WATER
PUSH BUTTON
SPARKLING WATER
PUSH BUTTON
5°C and
