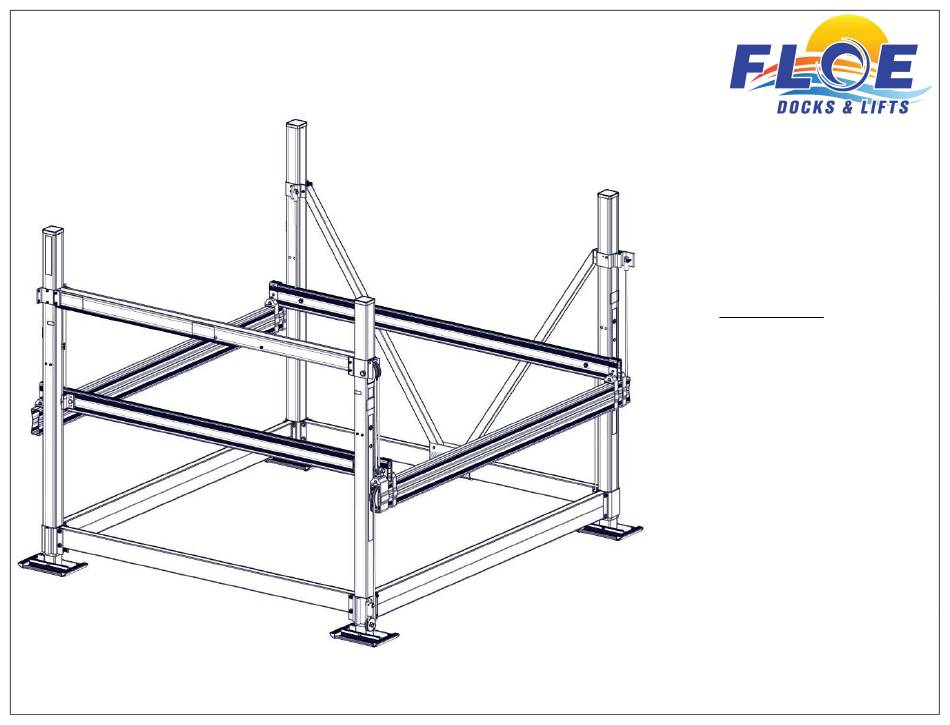

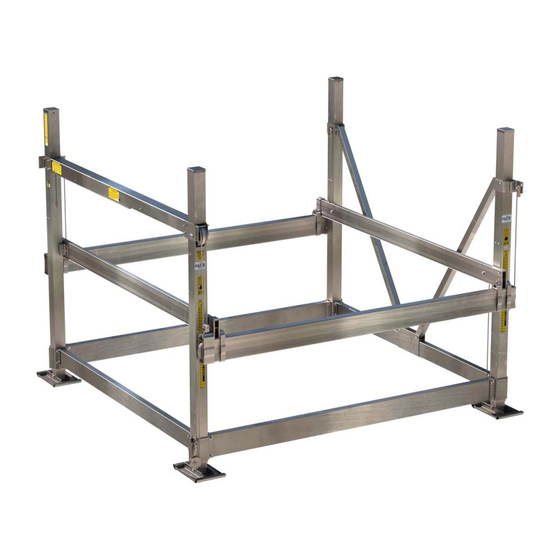

VSD 6500/8000 BOAT LIFT
P/N 511-80075-01 LIFT FRAME
WITH PATENTED EASY LEVEL LEG SYSTEM
ASSEMBLY INSTRUCTIONS
Instruction P/N 611-80075-01
Is ssued 3/4/2018
1
TOOLS REQUIRED
- (2) 9/16" SOCKETS/WRENCHES
- (2) ¾" SOCKETS/ WRENCHES
- (2) 1-1/8" SOCKETS/WRENCHES
- TORQUE WRENCH
- LOCKING PLIERS
- FRAMING SQUARE
- CLAMP (MIN. 8" OPENING)
©Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55362
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VSD 6500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Floe VSD 6500

Summary of Contents for Floe VSD 6500

  • Page 1 VSD 6500/8000 BOAT LIFT P/N 511-80075-01 LIFT FRAME WITH PATENTED EASY LEVEL LEG SYSTEM ASSEMBLY INSTRUCTIONS TOOLS REQUIRED - (2) 9/16” SOCKETS/WRENCHES - (2) ¾” SOCKETS/ WRENCHES - (2) 1-1/8” SOCKETS/WRENCHES - TORQUE WRENCH - LOCKING PLIERS - FRAMING SQUARE - CLAMP (MIN.
  • Page 2 TIPS  Torque nuts to specification, not bolts.  Place parts and fasteners in designated locations prior to each step.  Before tightening fasteners to specified torque, ensure that the lift is square.  Measure from corner to corner (A to C/B to D) to verify that the lift is square. ...
  • Page 3 Card Contents (001-60008-00) Step Part Numbers Descriptions Torque 001-70223-00 HHCS, 1/2-13 x 5” ss 18-8 001-76072-00 NUT, NYLOCK 1/2-13 ALUM. 25 ft. lbs. 001-70219-00 HHCS, 1/2-13 x 4” ss 18-8 001-71022-00 FLAT WASHER, ½” USS ss 18-8 001-76072-00 NUT, NYLOCK 1/2-13 ALUM. 80 ft.
  • Page 4 continued Step Part Numbers Descriptions Torque 001-70213-00 HHCS, 1/2-13 x 2 1/2” ss 18-8 001-70223-00 HHCS, 1/2-13 x 5” ss 18-8 001-76072-00 NUT, NYLOCK 1/2-13 ALUM. 80 ft. lbs. 001-70212-00 HHCS, 1/2-13 x 2 1/4” ss 18-8 001-71022-00 FLAT WASHER, ½” USS ss 18-8 002-04241-00 HOLDER, CABLE –...
  • Page 5 STEP 1  ATTACH SAND PADS TO ALL FOUR CORNER POST ASSEMBLIES USING CORNER POST ASSEMBLIES USING (4) ½” x 5” BOLTS AND (4) ½” NYLOCK NUTS. TORQUE TO 25 FT-LBS (FIGURE 1.1).  ARRANGE CORNER POSTS AS SHOWN IN FIGURE 1.2.
  • Page 6 STEP 2  INSERT FRAME BEAM SPACERS INTO ENDS OF 108” FRAME BEAMS AND ENSURE HOLES IN FRAME BEAM LINE UP WITH CLAMP (FIGURE 2.1 & 2.2).  ATTACH FRAME BEAMS TO PRE- ATTACHED LOWER CORNER POST CLAMPS USING (2) ½ x 4” BOLTS, (4) ½”...
  • Page 7 STEP 2 FIGURE 2.5  ATTACH BALL SCREW CLAMP TO CORNER POST USING (2) 3/8 x 6” BOLTS, AND (2) NYLOCK NUTS (FIGURE 2.5). TORQUE TO 35 FT-LBS (FIGURE 2.6).  ORIENT BALL SCREW TUBE BETWEEN CORNER POSTS “A” & “B” WITH GREASE HOLE AND SUPPORT BOLT VISIBLE ON OUTSIDE OF LIFT (FIGURE 2.7).
  • Page 8 FIGURE 2.9 STEP 2  IMPORTANT NOTE: HOLES IN BALL SCREW, BALL SCREW CLAMP, AND BEARING BLOCK MUST BE ALINGNED BEFORE INSERTING BOLTS. (FIGURE 2.9)  ATTACH BALL SCREW TO BALL SCREW CLAMP USING (1) 3/8 x 6” BOLT, (1) ½ x 6” BOLT, (1) 3/8 NYLOCK NUT, AND (1) ½ NYLOCK NUT (FIGURE 2.10).
  • Page 9 STEP 2  ATTACH CABLE END OF BALL SCREW TUBE TO COUPLER ON CORNER POST “A” USING (2) 3/8” x 6” BOLTS, (1) 3/8” x 4 ½” BOLT, AND (3) 3/8” NYLOCK NUTS (FIGURE 2.13).  IMPORTANT: LIFTING CABLE MUST GO OVER UPPER 3/8” x 6” BOLT AND UNDER 3/8”...

  • Page 10: Table Of Contents

    STEP 3  SLIDE LOWER V-BRACE CLAMPS TOGETHER ON FRAME BEAM BETWEEN CORNER POSTS “C” & “D” (FIGURE 3.1)  FASTEN CLAMPS TO V-BRACES USING (2) 3/8” x 3 ½” BOLTS AND (2) 3/8” NYLOCK NUTS (FIGURE 3.2). TORQUE TO 35 FT-LBS (FIGURE 3.3). ...

  • Page 11: Torque To 35 Ft-Lbs (Figure 3.3)

    STEP 3  ATTACH UPPER V-BRACE CLAMPS TO CORNER POSTS “C” & “D” USING (2) 3/8” x 6” BOLTS AND (2) 3/8” NYLOCK NUTS (FIGURE 3.4 & 3.5) TORQUE TO 35 FT-LBS (FIGURE 3.6).  ATTACH V-BRACES TO UPPER V-BRACE CLAMPS USING (2) 3/8” x 3 3/4” BOLTS AND (2) 3/8” NYLOCK NUTS (FIGURE 3.4 & 3.5). TORQUE TO 35 FT-LBS (FIGURE 3.7).

  • Page 12: Figure 4.1

    STEP 4  INSERT FRAME BEAM SPACERS INTO ENDS OF 118” FRAME BEAMS AND ENSURE HOLES IN FRAME BEAM LINE UP WITH CLAMP. (FIGURE 4.1 & 4.2).  ATTACH A FRAME BEAM BETWEEN CORNER POSTS “B” AND “C” USING OUTER FRAME CLAMPS USING (2) ½” x 4” BOLTS, (4) ½” FLAT WASHERS, AND (2) ½”...

  • Page 13: Figure 4.4

    STEP 4 FIGURE 4.4  ATTACH A FRAME BEAM BETWEEN CORNER POSTS “A” AND “D” USING (FIGURE 4.4 & 4.5). DO NOT TIGHTEN. NOTE THAT BOLTS WILL BE INSTALLED IN UPPER HOLES ONLY AT CORNERS “A” & “D”.  USE A FRAMING SQUARE TO ENSURE THAT THE LIFT FRAME IS SQUARE BEFORE PROCEEDING TO THE NEXT STEP (FIGURE 4.6A &...
  • Page 14 STEP 4  TORQUE ALL NUTS TO 80 FT- ONCE LIFT IS SQUARE, LBS. (FIGURE 4.7, 4.8, & 4.9) FIGURE 4.7 FIGURE 4.8 FIGURE 4.9...
  • Page 15 STEP 5 FIGURE 5.1  PLACE THE LEFT & RIGHT SIDE CRADLE BEAMS ON TOP OF THE FRAME BEAMS. THE END WITH THE CABLE COMING THROUGH THE TOP OF THE SIDE CRADLE BEAM IS PLACED BY CORNER POSTS “B” AND “C” THE END WITH THE CABLE COMING THROUGH THE BOTTOM OF THE SIDE CRADLE BEAM IS PLACES BY CORNER POSTS “A”...
  • Page 16 STEP 5 FIGURE 5.3  ATTACH LIFTING CABLE CLEVIS TO THE CRADLE LIFT CLAMP USING A 3/4”-16 x 2” BOLT (FINE THREAD). MAKE SURE THE BOLT IS SEATED IN THE SLOT OF THE CLAMP WHEN TIGHTENING THE DO NOT TIGHTEN THE CLEVIS COMPLETELY CABLE CLEVIS.
  • Page 17 STEP 5  PLACE A CRADLE U-CLAMP ON BOTH CORNERS OF EACH SIDE CRADLE BEAM AND ALIGN THE HOLES ON THE INSIDE OF THE SIDE CRADLE BEAMS (FIGURE 5.6).  ATTACH CRADLE U-CLAMPS USING (2) 3/8” x 1 ¼” BOLTS AND (2) NYLOCK NUTS (FIGURE 5.7). ...
  • Page 18 STEP 5  ATTACH FRONT AND REAR CRADLE BEAMS TO SIDE CRADLE BEAMS USING PRE-ASSEMBLED CRADLE CLAMPS (FIGURE 5.9, 5.10, & 5.12).  PLACE THE LIFTING CABLE INTO THE 2” SHEAVE. NOTE THAT SHEAVE IS IN “STEP SEVEN” OF HARDWARE CARD. (FIGURE 5.11). FIGURE 5.9 FIGURE 5.11...
  • Page 19 STEP 5  ATTACH FRONT AND REAR CRADLE BEAMS TO SIDE CRADLE BEAMS USING PRE-ASSEMBLED CRADLE CLAMPS (FIGURE 5.9, 5.10, & 5.12). FIGURE 5.10 FIGURE 5.12...
  • Page 20 STEP 5  USING A PAIR OF C-CLAMP PLIERS (MIN. 8” OPENING), SNUG CRADLE CLAMPS TO CRADLE U-CLAMPS BEFORE TIGHTENING ½” x 2” BOLTS. CONFIRM ¼” GAP BETWEEN SIDE CRADLE BEAMS AND CORNER POST (FIGURE 5.2)  TORQUE TO 80 FT-LBS (FIGURE 5.13 & 5.14). FIGURE 5.13 FIGURE 5.14...
  • Page 21 STEP 6  WRAP FRONT LIFTING CABLE AROUND SHEAVE AND ATTACH TO LIFTING CLAMP ON CORNER POST “A” WITH A ½” x 2 ½” BOLT AND ½” NYLOCK NUT. ATTACH CABLE END TO LOWER CLAMP WITH ½” x 2 ½” BOLT AND ½”...
  • Page 22 STEP 6  WHILE LIFTING OPPOSITE END OF FRONT CRADLE BEAM, ATTACH OTHER END OF CABLE TO UPPER V-BRACE CLAMP ON CORNER POST “D” WITH A ½” x 2 ¼” BOLT AND ½” NYLOCK NUT (FIGURE 6.4).  TORQUE TO 80 FT-LBS (FIGURE 6.5). FIGURE 6.4 FIGURE 6.5...
  • Page 23 STEP 6  ATTACH SIDE LEVELING CABLES TO LOWER FRAME CLAMPS ON CORNERS “A” & “D” BY USING A ½” x 5” BOLT, (2) FLAT WASHERS, AND A ½” NYLOCK NUT (FIGURE 6.6).  TORQUE TO 80 FT-LBS (FIGURE 6.7). FIGURE 6.6 FIGURE 6.7...
  • Page 24 STEP 6  THE SIDE LEVELING CABLE END PLACED AT CORNER POSTS “B” & “C” ARE ATTACHED WITH A ½” x 2 ¼” BOLT AND ½” NUT (FIGURE 6.8 & 6.10).  TORQUE TO 80 FT-LBS (FIGURE 6.9 & 6.11) FIGURE 6.8 FIGURE 6.10 FIGURE 6.9...
  • Page 25 STEP 7  FINISH TIGHTENING LIFT CLEVIS. THE SIDE OF THE CLEVIS SHOWN BELOW IN FIGURE 7.1 MUST BE PARALLEL TO THE FRONT CRADLE BEAM. IF NOT, REMOVE CLEVIS AND ROTATE BOLT IN SLOT UNTIL CLEVIS IS PARALLEL WHEN TIGHT. MAKE SURE THERE ARE NO TWISTS IN THE LIFTING CABLE AND ATTACH THE 4”...
  • Page 26 STEP 7  THE DRIVE TRAIN (SOLD SEPERATELY) CAN NOW BE ATTACHED TO THE BALL SCREW CLAMP. NOTE THAT THE RIGID COUPLER ON THE BALL SCREW AND THE DRIVE TRAIN MATE TOGETHER. WHILE HOLDING THE DRIVE TRAIN IN PLACE, ATTACH TO BALL SCREW CLAMP USING (4) 3/8”...
  • Page 27 FIGURE 7.7 STEP 7 DC ONLY:  SLIDE BATTERY TRAYS OVER THE BALL SCREW TUBE WITH THE WIDE OVERHANG SIDE OF THE TRAY TO THE OUTSIDE OF THE LIFT TO PROVIDE MORE CLEARANCE. PLACE FIRST BATTERY TRAY INCHES FROM CORNER POST AND SECOND BATTERY TRAY INCHES FROM FIRST TRAY (SEE VSD DRIVE INSTRUCTIONS).
  • Page 28 STEP 7 (IF USING CANOPY)  REMOVE THE NUT, BOLT, AND WASHER FROM THE ASC AS THEY WILL NOT BE NEEDED (FIGURE 7.10). REMOVE NUT FROM ½” x 1 ¼” BOLT HOLDING CANOPY INSERT (FIGURE 7.11). ATTACH ASC BOX TO BOLT WITH NUT FROM CORNER POST, AND TORQUE TO 60 FT-LBS (FIGURE 7.12).
  • Page 29 STEP 7 (NO CANOPY)  STICK DUAL LOCK ON CORNER POST BELOW LOCATION OF ASC. ATTACH THE UNIT TO THE UPPER HOLE IN CORNER POST AND TIGHTEN ½ TURN PAST SNUG. PRESS ASC AND DUAL LOCK FIRMLY TOGETHER (FIGURE 7.13 & 7.14). ...
  • Page 30 STEP 8 AC ONLY - THE DRIVE TRAIN CAN NOW BE CONNECTED TO THE POWER SOURCE. IT IS VERY IMPORTANT THAT THIS CONNECTION BE MADE IN ACCORDANCE WITH STATE AND LOCAL REGULATIONS. SEE WARNING: 2. DC ONLY - 24 VOLT BATTERY SETUP (SEE VSD DRIVE INSTRUCTIONS FOR ADDITIONAL DETAILS) ...
  • Page 31 STEP 8 VSD PRE-INSTALLATION CHECKLIST PRIOR TO INSTALLING YOUR LIFT, PLEASE FOLLOW THIS CHECKLIST TO CONFIRM PROPER OPERATION. 1. RAISE THE LIFT UP TO CONFIRM OPERATION OF UPPER LIMIT SWITCH. APPROACH THE UPPER LIMIT SWITCH CAUTIOUSLY BY PRESSING THE UP BUTTON IN SHORT BURSTS AS YOU NEAR THE TOP OF THE LIFT TRAVEL. A PROPERLY WORKING LIMIT SWITCH WILL STOP THE LIFT BEFORE THE BALL SCREW REACHES ITS LIMIT OF TRAVEL.
  • Page 32 VSD 6500/8000 FRAME BILL OF MATERIALS LIFT P/N 511-80075-01 PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION 001-16369-00 HHCS, 3/4-16 x 4" Grade 5 Plain 002-04226-00 Guide, Cradle 001-23877-00 SHCS, 1/2-20 x 1 1/2" (Black) 002-04227-00 Clamp, Frame (LF RR) (Welded to Corner Post) 001-26911-00 Pin, Dowel 3/16"...
  • Page 33 VSD 6500/8000 FRAME BILL OF MATERIALS – SUB-ASSEMBLIES LIFT P/N 511-80075-01 PART NUMBER DESCRIPTION PART NUMBER DESCRIPTION 111-00139-00 Ass'y, Front Cradle Beam -127" 111-00426-01 Ass'y, Corner Post "B" Motor 001-70365-00 HHCS, 3/4-10 x 3" ss 001-70861-00 Nut, Nylock 5/16-18 - Alum.
  • Page 34 VSD 6500/8000 FRAME EXPLODED VIEW MAIN LIFT P/N 511-80075-01 NOTE: ADDITIONAL VIEWS ON PAGES 35-39. VIEW 5 VIEW 1 VIEW 7 VIEW 6 VIEW A VIEW 9 VIEW 4 VIEW 3 VIEW B VIEW 8 VIEW 2...
  • Page 35 VSD 6500/8000 FRAME EXPLODED VIEWS 1-4 LIFT P/N 511-80075-01 VIEW 1 VIEW 2 VIEW 3 VIEW 4 CORNER POSTS “B”, “C”, & “D”...
  • Page 36 VSD 6500/8000 FRAME EXPLODED VIEWS 5-7 LIFT P/N 511-80075-01 VIEW 5 VIEW 6 VIEW 7...
  • Page 37 VSD 6500/8000 FRAME EXPLODED VIEWS 8 & 9 LIFT P/N 511-80075-01 VIEW 9 VIEW 8 NOTE (VIEW 9): CORNER “D” IS SHOWN IN THIS VIEW. FOR CORNERS “B” & “C”, ITEMS 23, 25, 71, 86 AND 99 ARE EXEMPT. ITEMS 52 &...
  • Page 38 VSD 6500/8000 FRAME EXPLODED VIEWS 10 & 11 LIFT P/N 511-80075-01 VIEW 10 VIEW 10 VIEW 12 VIEW 11 VIEW 11...
  • Page 39 VSD 6500/8000 FRAME EXPLODED VIEW 12 LIFT P/N 511-80075-01 CORNER POSTS “A”, “B”, “C”, & “D”...
