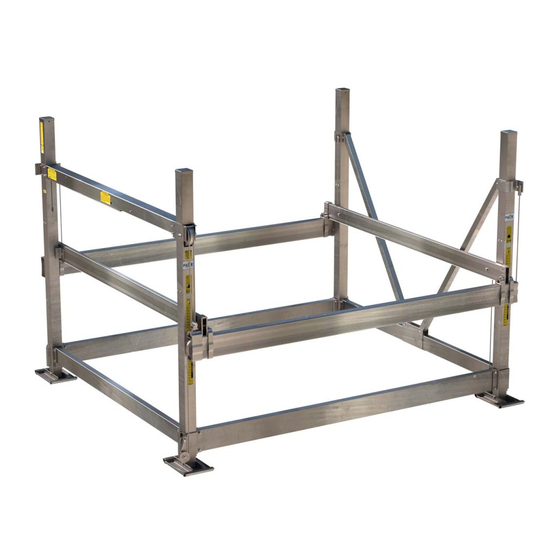

FLOE MAXIS TILTING CANOPY
KIT-10' (VSD 5000)/10.5'-11' (VSD 6000-10000)

ASSEMBLY INSTRUCTIONS

P/N 512-65000-00/512-65001-00
LIFT AND CANOPY NOT INCLUDED
LIFT AND CANOPY NOT INCLUDED
LIFT AND CANOPY NOT INCLUDED
LIFT AND CANOPY NOT INCLUDED
INSTRUCTION P/N: 612-65000-00 Rev D
RELEASED 6/6/17
TOOLS REQUIRED
TOOLS REQUIRED
TOOLS REQUIRED
TOOLS REQUIRED
- - - - 1/4" ALLEN WRENCH
1/4" ALLEN WRENCH
1/4" ALLEN WRENCH
1/4" ALLEN WRENCH
- - - - 9/16"
9/16" SOCKET/WRENCH
9/16"
9/16"
- - - - 3/4" SOCKET/WRENCH
3/4" SOCKET/WRENCH
3/4" SOCKET/WRENCH
3/4" SOCKET/WRENCH
- - - - 5/16" HEX SOCKET
5/16" HEX SOCKET
5/16" HEX SOCKET
5/16" HEX SOCKET
- - - - TORQUE WRENCH
TORQUE WRENCH
TORQUE WRENCH
TORQUE WRENCH
- - - - SCISSORS
SCISSORS
SCISSORS
SCISSORS
- - - - ¼" SPACER
¼" SPACER
¼" SPACER
¼" SPACER
1
SOCKET/WRENCH
SOCKET/WRENCH
SOCKET/WRENCH
© Manufactured by:
Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55362
www.floeintl.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VSD 6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Floe VSD 6000

Summary of Contents for Floe VSD 6000

  • Page 1: Assembly Instructions

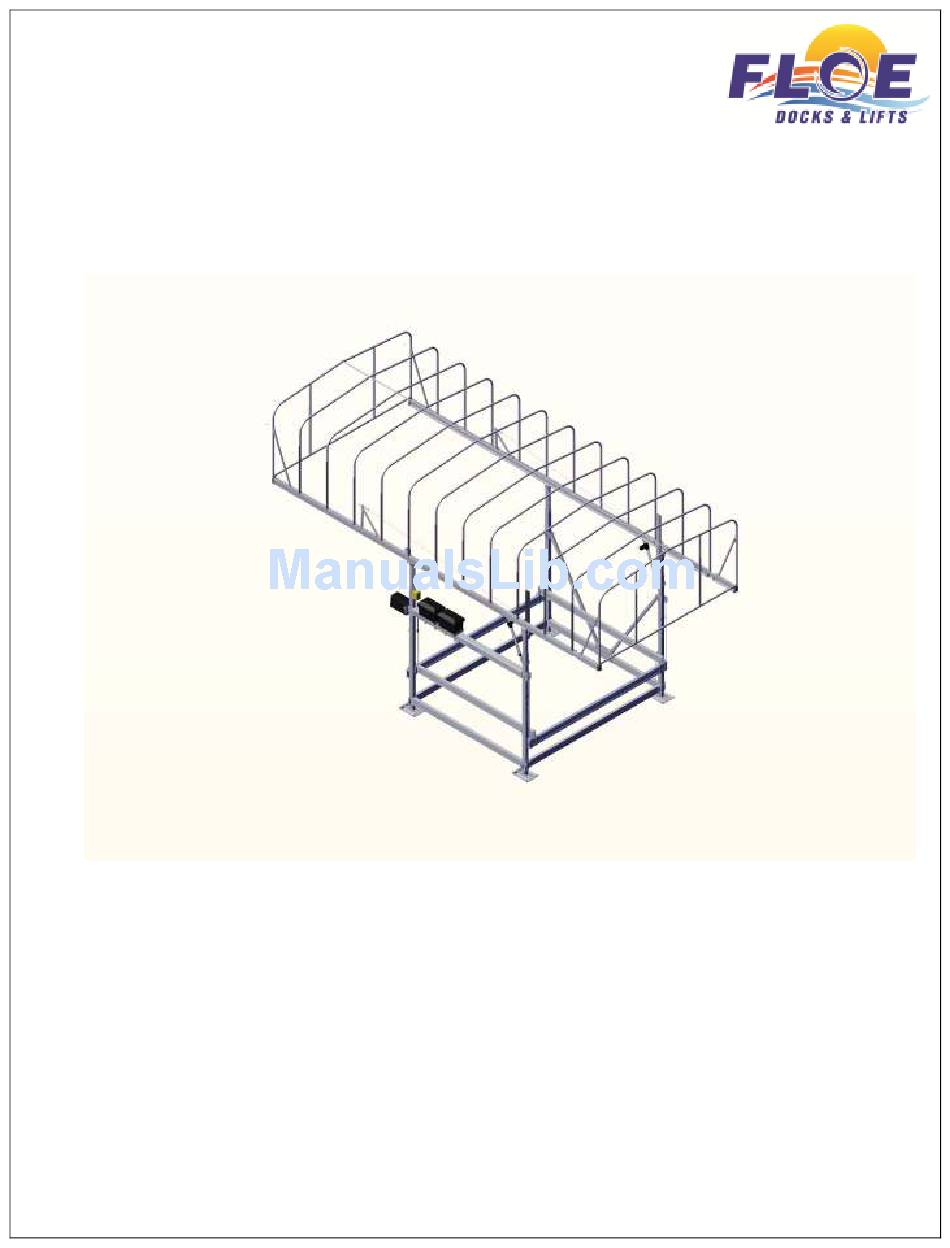

    FLOE MAXIS TILTING CANOPY KIT-10’ (VSD 5000)/10.5’-11’ (VSD 6000-10000) ASSEMBLY INSTRUCTIONS P/N 512-65000-00/512-65001-00 TOOLS REQUIRED TOOLS REQUIRED TOOLS REQUIRED TOOLS REQUIRED LIFT AND CANOPY NOT INCLUDED LIFT AND CANOPY NOT INCLUDED LIFT AND CANOPY NOT INCLUDED LIFT AND CANOPY NOT INCLUDED - - - - 1/4”...

  • Page 2: Bill Of Materials

    BILL OF MATERIALS 512-65000-00 (VSD 5000) P/N 512 P/N 512- - - - 65000 P/N 512 P/N 512 65000 65000- - - - 00 65000 Kit, Canopy Kit, Canopy Kit, Canopy Kit, Canopy- - - - Tilting 10' Wide Tilting 10' Wide Tilting 10' Wide Tilting 10' Wide NUMBER...
  • Page 3 P/N 512- - - - 65001 P/N 512 P/N 512 65001 65001 65001- - - - 00 Kit, Canopy Kit, Canopy- - - - Tilting VSD 6000 Kit, Canopy Kit, Canopy Tilting VSD 6000 Tilting VSD 6000 Tilting VSD 6000- - - - 10,000 10,000...

  • Page 4: Exploded View

    EXPLODED VIEW 512-65000-00 (VSD 5000)
  • Page 5 EXPLODED VIEW 512-65001-00 (VSD 6000-10000)
  • Page 6 INSTALLATION TILT BRACKETS / RECIEVER MOUNT / ACTUATORS STEP 1 512-65000-00 (VSD 5000) -PLACING CANOPY LEGS INSERT A CANOPY LEG (INCLUDED IN CANOPY HOOP (INCLUDED IN CANOPY HOOP (INCLUDED IN CANOPY HOOPS S S S ) ) ) ) IN EACH OF THE CORNER (INCLUDED IN CANOPY HOOP POSTS.
  • Page 7 512-65001-00 (VSD 6000-10000) -PLACING CANOPY LEGS INSERT A CANOPY LEG (INCLUDED IN CANOPY HOOP (INCLUDED IN CANOPY HOOP (INCLUDED IN CANOPY HOOPS S S S ) ) ) ) IN EACH OF THE CORNER (INCLUDED IN CANOPY HOOP POSTS..TILTING LEGS (002-00170-00, SHOWN BELOW) ARE PLACED IN PIVOTING SIDE (SHORE-END) CORNER POSTS.
  • Page 8 FIG. 3 FIG. 4 FIG. 5 FIG. 6...
  • Page 9 STEP 2 (VSD 5000 AND VSD 6000-10000) INSERT SPECIAL BOLTS INTO BOTH CANOPY RAILS AS SHOWN. STEP 3 512-65000-00 (VSD 5000) -ATTACH UPPER BRACKETS ATTACH ALL UPPER BRACKETS TO CANOPY RAILS AS SHOWN BELOW. PLACE ½-13 NYLOCK NUTS ON EACH BOLT. DO NOT TIGHTEN.
  • Page 10 512-65001-00 (VSD 6000-10000) -ATTACH UPPER BRACKETS ATTACH ALL UPPER BRACKETS TO CANOPY RAILS AS SHOWN BELOW. PLACE ½-13 NYLOCK NUTS ON EACH BOLT. DO NOT TIGHTEN. DO NOT TIGHTEN. DO NOT TIGHTEN. DO NOT TIGHTEN. STEP 4 512-65000-00 (VSD 5000) -ASSEMBLE CANOPY VERTICAL GUIDES (FIG.
  • Page 11 FIG. 3 FIG. 4...
  • Page 12 512-65001-00 (VSD 6000-10000) -ASSEMBLE CANOPY VERTICAL GUIDES (FIG. 1). PLACE CANOPY VERTICAL GUIDES INTO REAR CANOPY LEGS AND ALIGN HOLES. (FIG. 2). PLACE 3/8-16 x 3/4” BOLTS INTO CANOPY LEG AND GUIDE-IN HOLES (FIG. 3). TORQUE TO 1 TORQUE TO 10 FT/LBS.
  • Page 13 FIG. 3 FIG. 4...
  • Page 14 STEP 5 (VSD 5000 AND VSD 6000-10000) -BRACKET PLACEMENT CENTER UPPER BRACKETS TO POSITION ABOVE EACH CANOPY LEG. TORQUE TO 60 TORQUE TO 60 TORQUE TO 60 TORQUE TO 60 FT/LBS. FT/LBS. FT/LBS. FT/LBS. GUIDE BRACKET TILTING BRACKET...
  • Page 15 STEP 6 (VSD 5000 AND VSD 6000-10000) -ALIGN CANOPY ALIGN RAILS (SHOWN ASSEMBLED WITH HOOPS) ON LIFT TO DESIRED OVERHANG. ARRANGEMENT WILL DEPEND ON POSITION OF BOAT ON LIFT (FIG.1). IMPORTANT: IMPORTANT: WHEN IMPORTANT: IMPORTANT: WHEN WHEN WHEN ASSEMBL ASSEMBL...
  • Page 16 STEP 7 512-65000-00 (VSD 5000) -FASTEN TILTING BRACKETS (FIG. 1) INSERT 1/2-13 x 4” BOLT, WASHERS, AND NUT INTO TILTING BRACKET. ONLY TIGHTEN TO ENGAGE NYLOCK AND REMOVE FREE PLAY IN BOLT. DO NOT DO NOT DO NOT DO NOT TORQUE.
  • Page 17 512-65001-00 (VSD 6000-10000) -FASTEN TILTING BRACKET (FIG. 1) INSERT 1/2-13 x 5 1/2” BOLT, WASHERS, AND NUT INTO TILTING BRACKET. ONLY TIGHTEN TO ENGAGE NYLOCK AND REMOVE PLAY IN BOLT. DO NOT TORQUE. DO NOT TORQUE. DO NOT TORQUE. DO NOT TORQUE.
  • Page 18 STEP 8 (VSD 5000 AND VSD 6000-10000) -ATTACH ACTUATORS PLACE ACTUATORS INTO UPPER AND LOWER BRACKETS (FIG.1 AND FIG.2). ATTACH USING 3/8-16 x 2 ½” BOLTS AND 3/8-16 NYLOCK NUTS (FIG.1 AND FIG. 2). ACTUATOR MOTORS MUST FACE TOWARDS INSIDE OF LIFT AS SHOWN BELOW.
  • Page 19 FIG. 2 FIG. 3 FIG. 4...
  • Page 20 STEP 9 (VSD 5000 AND VSD 6000-10000) -ATTACH CONTROL BOX PLACE 1/2-13 X 1 1/4" CUSTOM BOLT INTO NUT TRACK ON SHORE SIDE OF PIVOTING POST AT NEAREST AVALABLE LOCATION (FIG. 1). PLACE CONTROL BOX BRACKET ON CUSTOM BOLT, AND PLACE NUT ON BOLT.
  • Page 21 INSTALLATION VSD 5000 AND VSD 6000-10000 WIRING STEP 1 -ACTUATOR WIRING ARRANGE WIRE SUCH THAT EACH ACTUATOR HAS MALE AND FEMALE CONNECTORS (FIG.1). FIG. 1...
  • Page 22 STEP 2 -ATTACHING WIRING FOLLOW SHOWN WIRING TO PREVENT WIRE DAMAGE (FIG. 1). NOTE THAT WIRING MUST GO OVER PIVOTING CANOPY CONNECTION. THE CABLE WITH THE GREY END RUNS TO THE FAR ACTUATOR AND THE CABLE WITH THE BLACK ENDS RUNS TO THE NEAR ACTUATOR. ATTACH WIRE WITH VELCRO ALONG CANOPY HOOPS (FIG.
  • Page 23 FIG. 4 FIG. 3 FIG. 2 FIG. 5 FIG. 6...

  • Page 24: Connecting Actuators

    STEP 3 -CONNECTING ACTUATORS CONNECT EACH ACTUATOR WITH RESPECTIVE CONNECTORS. WIRING IS CONSTRUCTED SUCH THAT THERE IS ONLY ONE CORRECT CONFIGURATION. STEP 4 -CONNECT BATTERY ( ( ( ( 12 VOLT CONNECTION 12 VOLT CONNECTION ONLY ONLY) ) ) ) 12 VOLT CONNECTION 12 VOLT CONNECTION ONLY...

  • Page 25: Alternate Configuration

    ALTERNATE CONFIGURATION 612-65000-00 (VSD 5000)/612-65001-00 (VSD 6000-10000) NOTE: NOTE: NOTE: NOTE: IN THIS CONFIGURATION, ACTUATORS ARE PLACED ON THE MOTOR SIDE AND THE IN THIS CONFIGURATION, ACTUATORS ARE PLACED ON THE MOTOR SIDE AND THE IN THIS CONFIGURATION, ACTUATORS ARE PLACED ON THE MOTOR SIDE AND THE IN THIS CONFIGURATION, ACTUATORS ARE PLACED ON THE MOTOR SIDE AND THE ASC IS MOVED TO THE BATTERY TRAY.
  • Page 26 STEP 1 -UPPER BRACKET PLACEMENT (FIG.1) GUIDE BRACKET ON CANOPY RAIL WILL BE POSITIONED OVER CORNER POSTS CLOSEST TO LIFT MOTOR AND BATTERIES. HINGE BRACKET ON CANOPY RAIL WILL BE POSITIONED OVER OPPOSITE CORNER POSTS. GUIDE GUIDE GUIDE GUIDE BRACKET IS BRACKET IS BRACKET IS BRACKET IS...
  • Page 27 STEP 3 -ASSEMBLE CANOPY VERTICAL GUIDES (FIG. 1) PLACE ½-13 x 1” BOLT AND WASHER IN VERTICAL GUIDE (FIG. 2) SLIDE CANOPY VERTICAL GUIDES OVER CANOPY LEGS NEAREST TO MOTOR PLACE NUT ON BOLT OVER GUIDE. POSITION THE VERTICAL GUIDE 5 INCHES 5 INCHES 5 INCHES FROM 5 INCHES...
  • Page 28 FIG. 4...
  • Page 29 STEP 4 -ATTACH ACTUATORS PLACE ACTUATORS INTO UPPER AND LOWER BRACKETS (FIG.1 AND FIG.2). ATTACH USING 3/8-16 x 2 ½” BOLTS AND 3/8-16 NYLOCK NUTS (FIG.1 AND FIG. 2). ACTUATOR MOTORS MUST FACE TOWARDS INSIDE OF LIFT AS SHOWN BELOW. ACTUATOR MOTORS MUST FACE TOWARDS INSIDE OF LIFT AS SHOWN BELOW.
  • Page 30 FIG. 2 FIG. 3 FIG. 4...
  • Page 31 STEP 5 -ALTERNATE ASC MOUNTING (FIG. 1) PLACE ASC MOUNTING BRACKET ON BATTERY TRAY. TIGHTEN BOLT ON INSIDE OF TRAY (FIG. 2). ATTACH ASC TO BRACKET WITH NUT AND BOLT (FIG. 3). FIG. 2 FIG. 1 FIG. 3...
  • Page 32 STEP 6 -ATTACH CONTROL BOX PLACE 1/2-13 X 1 1/4" CUSTOM BOLT INTO NUT TRACK ON SHORE SIDE OF PIVOTING POST AT NEAREST AVALABLE LOCATION (FIG 1). PLACE CONTROL BOX BRACKET ON CUSTOM BOLT, AND PLACE NUT ON BOLT. TORQUE TO 60 FT/LBS (FIG 2). NOTE THAT THE BOX HANGS INSIDE THE LIFT. FIG.
  • Page 33 INSTALLATION ALTERNATE CONFIGURATION WIRING VSD 5000 AND VSD 6-10000 STEP 1 -ACTUATOR WIRING ARRANGE WIRE SUCH THAT EACH ACTUATOR HAS A MALE AND FEMALE CONNECTOR (FIG.1). FIG. 1...
  • Page 34 STEP 2 -ATTACHING WIRING ROUTE WIRING AS SHOWN TO PREVENT WIRING DAMAGE (FIG. 1). THE CABLE WITH THE GREY END RUNS TO THE FAR ACTUATOR AND THE CABLE WITH THE BLACK ENDS RUNS TO THE NEAR ACTUATOR. BATTERY WIRE MUST RUN ALONG BALL SCREW AND ALL ACTUATOR WIRES MUST GO OVER THE PIVOT BRACKET (FIG.
  • Page 35 FIG. 3 FIG. 2 FIG. 4 FIG. 5 FIG. 6 FIG. 7...
  • Page 36 STEP 3 -CONNECTING ACTUATORS CONNECT EACH ACTUATOR WITH RESPECTIVE CONNECTORS. WIRING IS CONSTRUCTED SUCH THAT THERE IS ONLY ONE CORRECT CONFIGURATION. STEP 4 -CONNECT BATTERY ( ( ( ( 12 VOLT 12 VOLT 12 VOLT CONNECTION 12 VOLT CONNECTION CONNECTION CONNECTION ONLY ONLY ONLY...

This manual is also suitable for:
