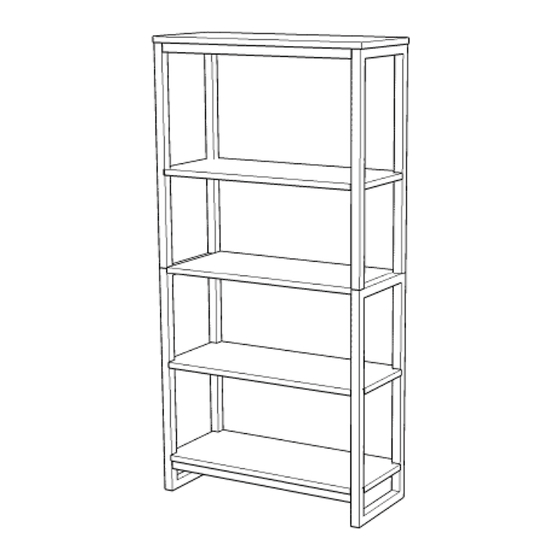

Home Styles Barnside 5053-76 Manual

88 5053 76
Shelf
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
Part List
A.
Top
1 Pc.
B.
Shelf
1 Pc.
C.
Shelf
1 Pc.
D.
Shelf
2 Pcs.
Hardware List
Hex Wrench
1 Pc.
Small Hex Wrench
1 Pc.
E.
Side Frame
1 Pc.
M6x16
Head Cap Bolt
41 Pcs.(+1 extra)
Home Styles Consumer Assistance: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319
F.
Side Frame
1 Pc.
I.
Back Stretcher
2 Pcs.
J.
Front Stretcher
1 Pc.
Spring Washer
M6x16
41 Pcs. (+1 extra)
Tapered
Head Cap Bolt
6 Pcs. (+1 extra)
G. H.
Side Frame Side Frame
1 Pc. 1 Pc.
K.
Stretcher
1 Pc.
L.
Stretcher
2 Pcs.
Flat Washer
41 Pcs. (+1 extra)
Tools recommended for assembly : Level
Adjustable Pin
8 Pcs. (+1 extra)
