IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

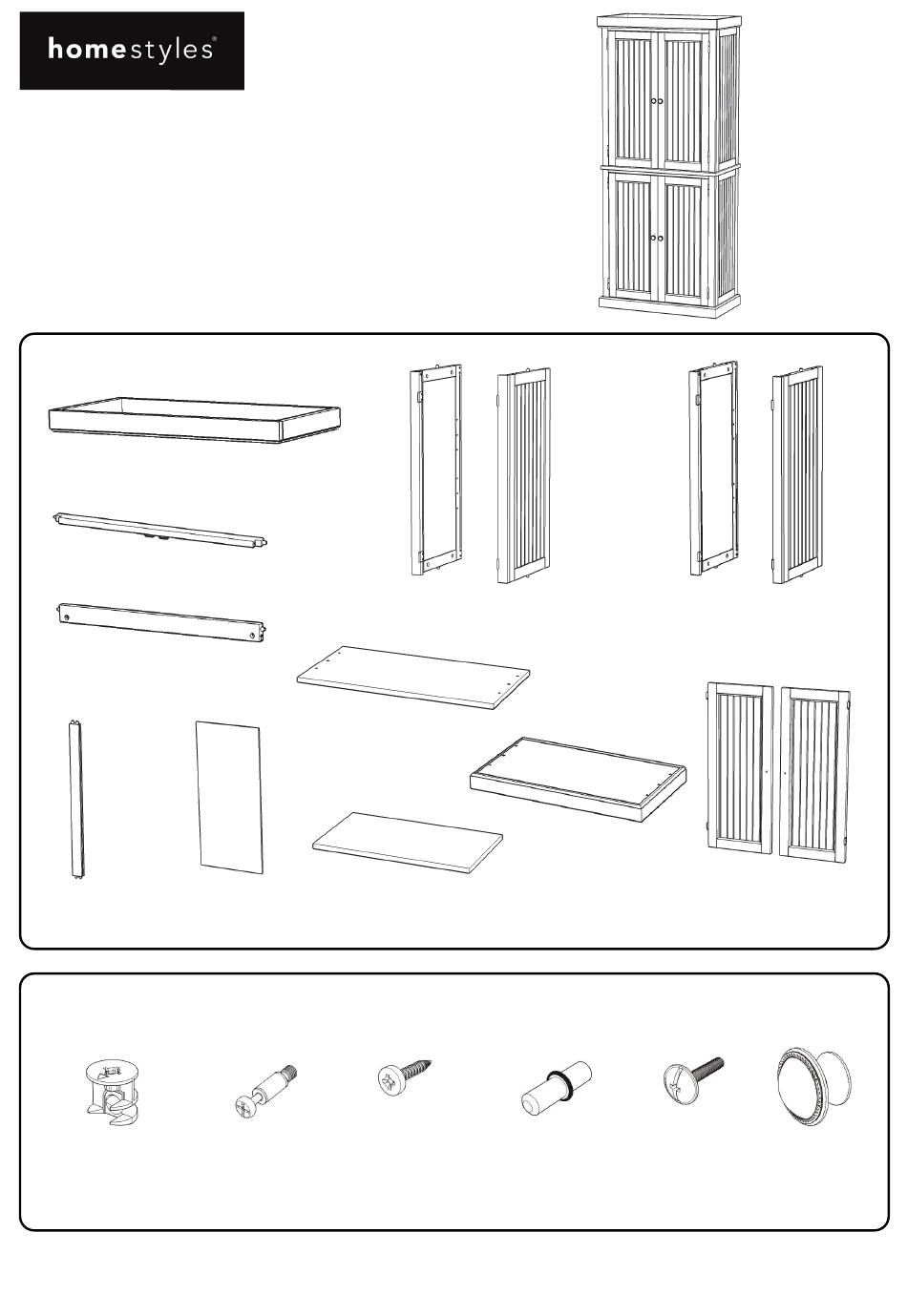

Part List

A.
Top
1 pc.
F.
Front Stretcher
2 pcs.
G.
Back Stretcher
4 pcs.
H.
I.
Back Upright
Back Panel
2 pcs.
4 pcs.

Hardware List

Cam Lock
28 pcs. (+4 extra)
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5022 65

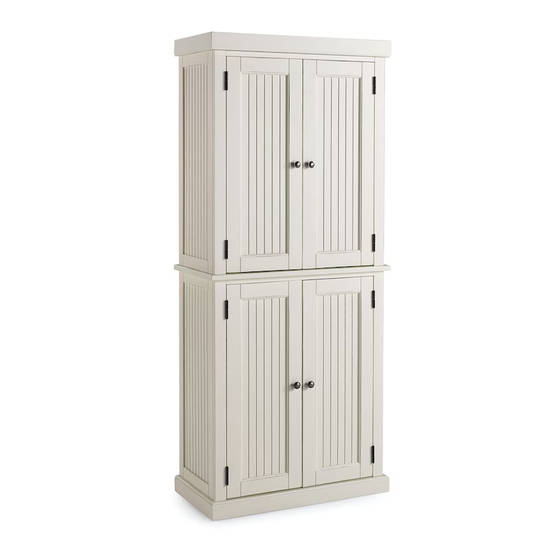

Pantry
B.
Side Panel
1 pc.
L.
Shelf
4 pcs.
M3.5x16
Cam Lock Screw
28 pcs. (+1 extra)
16 pcs. (+1 extra)
Side Panel
1 pc.
J.
Top
1 pc.
K.
Base
1 pc.
Adjustable Pin
16 pcs. (+1 extra)
888-680-7460, 877-831-0319
C.
D.
Side Panel
1 pc.
M.
Door
2 pcs.
M4x25
Machine Screw
4 pcs.
E.
Side Panel
1 pc.
N.
Door
2 pcs.
Knob
4 pcs.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 88 5022 65 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Styles 88 5022 65

  • Page 1 28 pcs. (+4 extra) 28 pcs. (+1 extra) 16 pcs. (+1 extra) 4 pcs. 4 pcs. 16 pcs. (+1 extra) Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
  • Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Cam Lock Screw Cam Lock Screw STEP 1...
  • Page 3 Assembly Instructions 3/6 Cam Lock STEP 2 Attach Front Stretcher (F) and Back Stretcher (G) to Side Panel (B) with Cam Locks. (See Figure 2) Slide Back Panels (I) and Back Upright (H) to Back Stretcher (G). Attach Back Stretcher (G) to unit with Cam Lock.
  • Page 4 Assembly Instructions 4/6 Cam Lock STEP 4 Attach Doors (M) and (N) to unit by sliding the door lift hinges into side panel lift hinges. (See Figure 3) Attach Top (J) to unit with Cam Locks. Figure 3 Cam Lock STEP 5 Attach Front Stretcher (F) and Back Stretcher (G) to Side Panel (D)
  • Page 5 Assembly Instructions 5/6 STEP 6 Attach unit from Step 5 to unit from Step 4 with Cam Locks. Attach Doors (M) and (N) to unit by sliding the door lift hinges into side panel lift hinges. Cam Lock Attach Top (A) to unit with Cam Locks. STEP 7 Attach Knobs to Doors (M) and (N)
  • Page 6 Assembly Instructions 6/6 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 9 Anchor in wall Wall Screw Pre-drilled hole Bracket Place unit at desired location. on wall at top of unit 3/8”...
  • Page 7 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
