IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Top
1 pc.
G.
Middle Panel
1 pc.
H.
Base
1 pc.
Cam Lock
24 pcs. (+4 extra)
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
5004 692
-

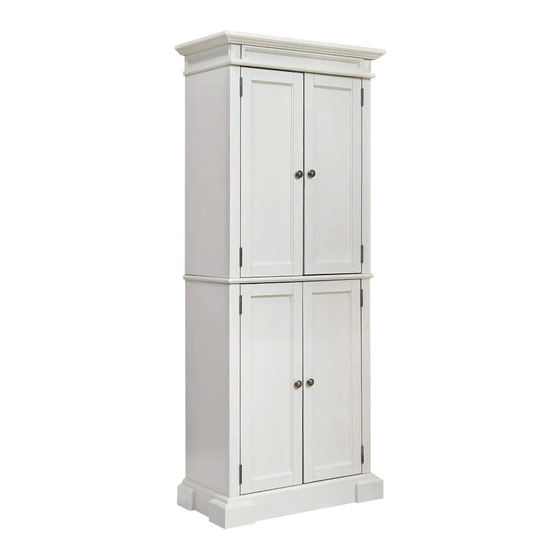

Pantry
B.
Side Panel
2 pcs.
D.
Back Stretcher
4 pcs.
I.
Shelf
4 pcs.
M3.5x16
Wood Screw
Cam Lock Screw
24 pcs. (+1 extra)
16 pcs. (+1 extra)
C.
E.
Side Panel
Back Upright
2 pcs.
2 pcs.
J.
Door
2 pcs.
M4x25
Adjustable Pin
Machine Screw
16 pcs. (+1 extra)
4 pcs.
888-680-7460, 877-831-0319
F.
Back Panel
4 pcs.
K.
Door
2 pcs.
Knob
4 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 5004 692
Summary of Contents for Home Styles 5004 692
- Page 1 24 pcs. (+4 extra) 24 pcs. (+1 extra) 16 pcs. (+1 extra) 16 pcs. (+1 extra) 4 pcs. 4 pcs. Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8” Drill Bit Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Make sure unit is level before tightening these screws. Ÿ The unit must be level to work properly. Use the included adjustable levelers to level. Cam Lock Screw STEP 1 Insert Cam Lock Screws into...
- Page 3 Assembly Instructions 3/6 STEP 2 Cam Lock Attach Back Stretcher (D) to Side Panel (B) with Cam Lock. (See Figure 2) Attach Back Upright (E) to Stretcher (D). Slide Back Panels (F) into position. Attach Back Stretcher (D) to unit with Cam Lock. Attach Side Panel (C) to unit with Cam Locks.
- Page 4 Assembly Instructions 4/6 Cam Lock STEP 4 Attach Back Stretcher (D) to Side Panel (B) with Cam Lock. (See Figure 2) Attach Back Upright (E) to Stretcher (D). Slide Back Panels (F) into position. Attach Back Stretcher (D) to unit with Cam Lock. Attach Side Panel (C) to unit with Cam Locks.
- Page 5 Assembly Instructions 5/6 STEP 6 Cam Lock Insert Adjustable Pins into Adjustable Pin side panels at desired level. Place Shelves (I) into position. Attach Doors (J) and (K) to unit by sliding door hinges into side panel hinges. Attach Knobs to Doors (J) and (K) with Machine Screws.
- Page 6 Assembly Instructions 6/6 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 8 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location.
- Page 7 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
