IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
A.
Cabinet
1 pc.
D.
Shelf
2 pcs.
E.
Shelf
2 pcs.
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
Tool(s) required for assembly: Phillips screwdriver, Level, Drill (8 volts or less), 3/8" Drill Bit
home
5050-13

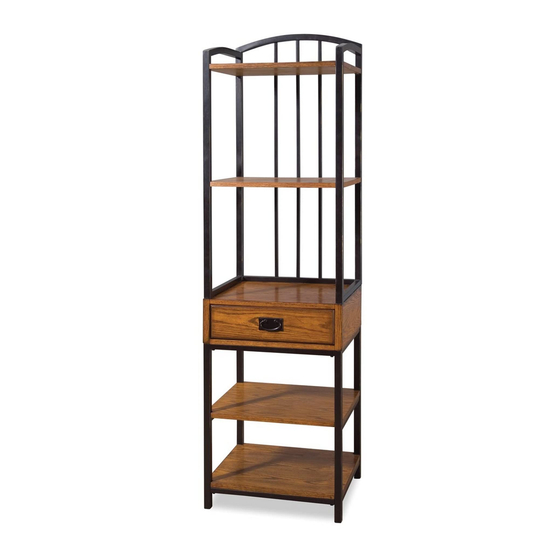

Media Tower
M6x19
Head Cap Bolt
14 pcs. (+1 extra)
Flat Washer
12 pcs. (+1 extra )
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
B.
Rail
4 pcs.
F.
Side Frame
2 pcs.
M4x32
Spring Washer
Wood Screw (long)
12 pcs. (+1 extra )
16 pcs. (+1 extra)
M6x45
M4x12
Wood Screw (short)
Tapered Head Cap Bolt
4 pcs. (+1 extra)
12 pcs. (+1 extra)
888-680-7460
C.
Side Frame
2 pcs.
G.
Back Frame
1 pc.
M6x45
Headless Bolt
2 pcs. (+1 extra)
Bracket
2 pcs.
Advertisement
Related Manuals for Home Styles 5050-13
Summary of Contents for Home Styles 5050-13
- Page 1 5050-13 Media Tower IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 Assembly Instructions 2/7 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions / 3 7 STEP 3 Slide Shelf (D) into unit. Attach Shelf (D) to unit with Wood Screws (long). Wood Screw (long) Figure 2 Drawer Stop STEP 4 Remove drawer from Cabinet (A). Rotate drawer stop into position. (See Figure 2)
- Page 4 Assembly Instructions / 4 7 STEP 5 Place Cabinet (A) upside down Wood Screw (long) on a soft cloth. Attach unit to Cabinet (A) with Flat Washers, Spring Washers and Head Cap Bolts. Head Cap Bolt Insert Wood Screws (long) into Spring Washer pre-drilled holes unit.
- Page 5 Assembly Instructions / 5 7 STEP 7 Attach Side Frame (F) and Shelves (E) to Back Frame (G) with Tapered Head Cap Bolts and Wood Screws (short). Tapered Head Cap Bolt Wood Screw (short) Wood Screw (short) Tapered Head Cap Bolt STEP 8 Headless Bolt Attach Side Frame (F) to unit...
- Page 6 Assembly Instructions / 6 7 Figure 3 Bracket Head Cap Bolt Tapered Head Cap Bolt Wood Screw (short) STEP 9 Place upper unit onto base unit. Attach Brackets to unit with Head Cap Bolts, Tapered Head Cap Bolts and Wood Screws (short). (See Figure 3) Level unit by adjusting the adjustable levelers on bottom of unit.
-
Page 7: Hardware List
Assembly Instructions / 7 7 IMPORTANT Ÿ To help reduce the risk of the unit tipping over, the Tipover Restraint must be installed following these instructions exactly. STEP 10 Anchor in wall Wall Screw Pre-drilled hole Bracket on wall at top of unit Place unit at desired location. - Page 8 Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, home styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
-
Page 9: Part List
5050-06 Media Console IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble. - Page 10 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 11 Assembly Instructions 3/5 Flat Washer Wood Screw Spring Washer Head Cap Bolt STEP 3 Slide lower Shelf (E) into unit. Attach lower Shelf (E) with Flat Washers, Spring Washers, Head Cap Bolts and Wood Screws. STEP 4 Place Cabinet (A) upside down on a soft cloth. Attach unit to Cabinet (A) with Flat Washers, Spring Washers, Head Cap Bolts and Wood Screws.
- Page 12 Assembly Instructions 4/5 Wood Screw for drawer Dowel STEP 5 Place Drawer Fronts (F) face down on a soft cloth. Insert Dowels into Drawer Fronts (F). Attach Drawer Fronts (F) to Drawer Boxes (G) with Wood Screws for drawer. Machine Screw Handle STEP 6 Turn unit over to its upright position.
- Page 13 Assembly Instructions 5/5 IMPORTANT To help reduce the risk of the unit tipping over, the Tip-over Restraint must be installed following these instructions exactly. STEP 7 Wall Screw Pre-drilled hole Anchor in wall Bracket at top of unit on wall Place unit at desired location.
- Page 14 Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, home styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
