IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
Hardware List
Hex Wrench
1 pc.
Small Hex Wrench
1 pc.
For assembly see instructions in carton 5092 942.
home
5092-941

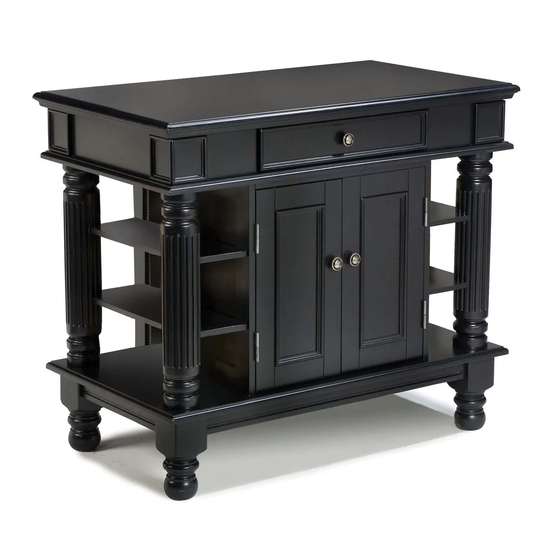

Kitchen Island
M6x35
Cam Lock Screw
Head Cap Bolt
4 pcs. (+1 extra)
16 pcs. (+1 extra)
M6x50
Cam Lock
Head Cap Bolt (long)
4 pcs. (+2 extra)
4 pcs. (+1 extra)
styles Customer Service: www.homestylesfurniture.com,
servicedesk@homestylesfurniture.com,
A.
Top
1 pc.
F.
Foot
4 pcs.
Flat Washer
4 pcs. (+1 extra)
Spring Washer
4 pcs. (+1 extra)
-
888-680-7460
Adjustable Pin
4 pcs. (+1 extra)
M4x20
Knob
Machine Screw
6 pcs.
6 pcs.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Styles 5092-941
Summary of Contents for Home Styles 5092-941

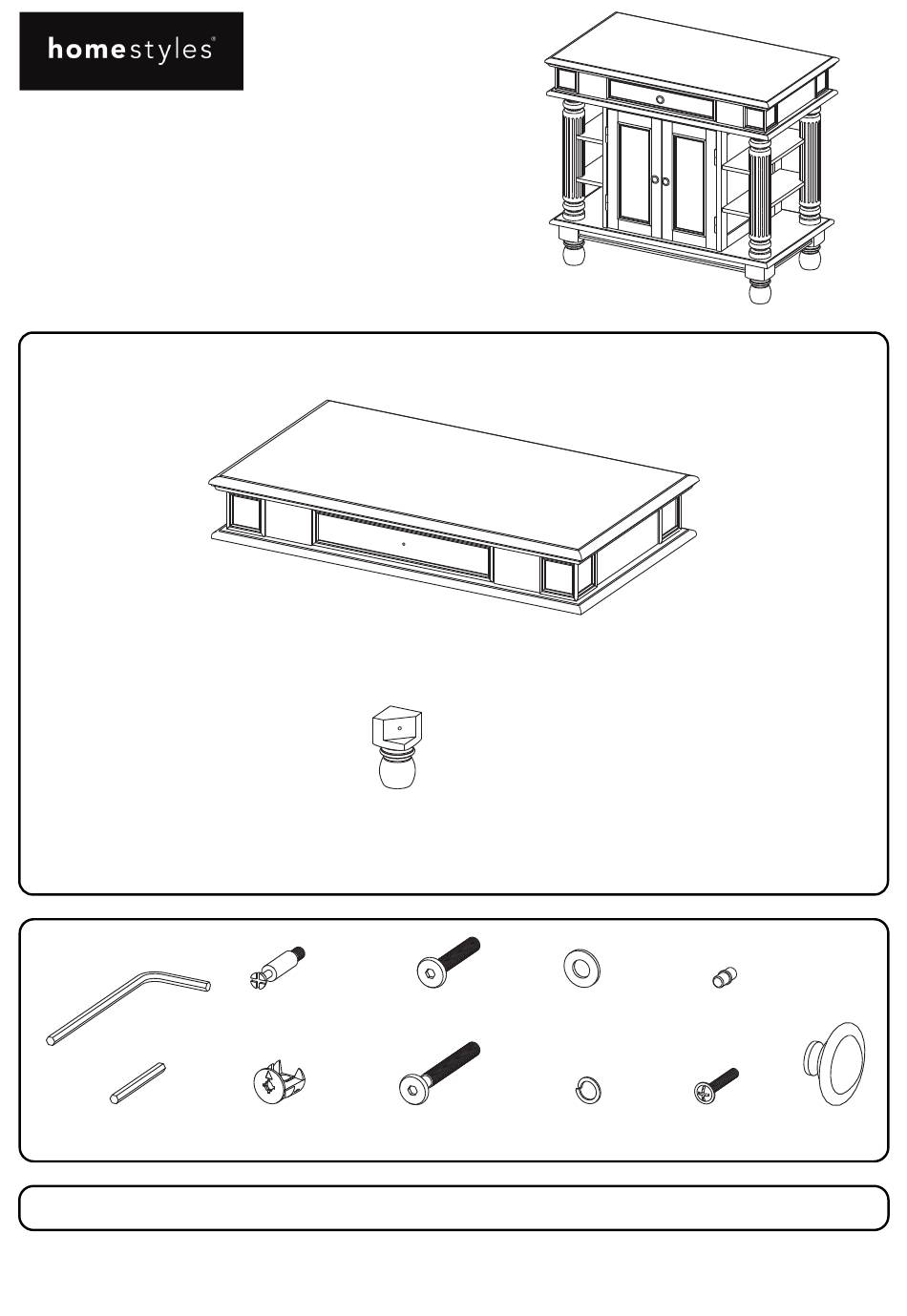

- Page 1 5092-941 Kitchen Island IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
- Page 2 5092 942 Kitchen Island IMPORTANT Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed. Do not use power tools above 8 volts to assemble.
- Page 3 Assembly Instructions 2/6 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 4 Assembly Instructions 3/6 STEP 3 Attach Side Panels (C) to Rails (B) with Cam Lock Cam Locks. (See Figure 2) Figure 2 STEP 4 Place Top (A) upside down on a soft cloth. Attach unit to Top (A).
- Page 5 Assembly Instructions 4/6 STEP 5 Head Cap Bolt Arrow label Orientate Stretchers (L) with Arrow labels pointing in same direction as the notches in Posts ( ) and ( ), then attach Stretchers (L) to Posts (D) and (E) with Head Cap Bolts.
- Page 6 Assembly Instructions 5/6 Head Cap Bolt STEP 7 Attach Base (K) to unit with Head Cap Bolts. Flat Washer Spring Washer Head Cap Bolt (long) STEP 8 Attach Feet (F) to unit with Flat Washers, Spring Washers and Head Cap Bolts (long). (See Figure 4) Figure 4...
- Page 7 Assembly Instructions / 6 6 Knob Machine Screw Adjustable Pin STEP 9 Turn unit over to its upright position. Insert Adjustable Pins into side panels at desired level. Place Shelf (J) into position. Attach Doors (H) and (I) to unit by sliding door hinges into side panel hinges. (See Figure 5) Attach Knobs to Doors (H) and (I) with Machine Screws.
- Page 8 Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, home styles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
