IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.
Part List
I.
Leg
1 pc.
M.
Side Panel
2 pcs.
Cartons 88 5004 941, 942 are also needed for assembly.
Tool(s) required for assembly:
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
88 5004 943

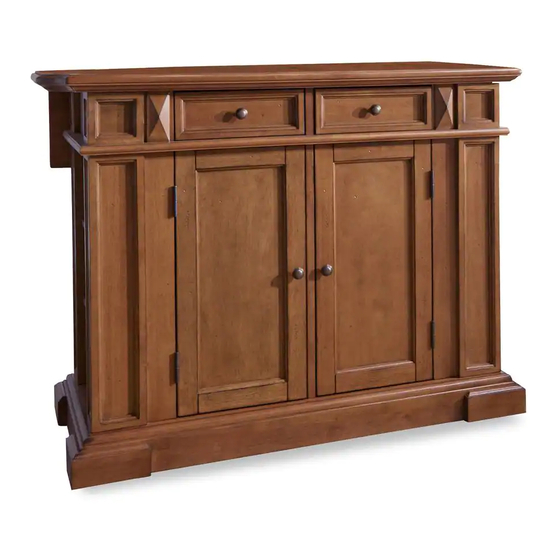

Kitchen Island
J.
Leg
1 pc.
O.
Shelf
4 pcs.
Phillips screwdriver,
Level
K.
Leg
1 pc.
P.
Door
1 pc.
888-680-7460, 877-831-0319
L.
Leg
1 pc.
Q.
Door
1 pc.
Advertisement
Table of Contents
Related Manuals for Home Styles 88 5004 943
Summary of Contents for Home Styles 88 5004 943
- Page 1 1 pc. Shelf Door Door Side Panel 4 pcs. 1 pc. 1 pc. 2 pcs. Cartons 88 5004 941, 942 are also needed for assembly. Tool(s) required for assembly: Phillips screwdriver, Level Home Styles Customer Service: www.homestyles-furniture.com, servicedesk@homestyles-furniture.com, 888-680-7460, 877-831-0319...
- Page 2 Assembly Instructions 2/5 IMPORTANT Ÿ Use a soft cloth between these parts and the floor. Ÿ Do not use power tools above 8 volts to assemble. Ÿ Do not tighten all the bolts until each part is properly assembled. Ÿ The unit must be level to work properly.
- Page 3 Assembly Instructions 3/5 STEP 3 Head Cap Bolt Attach unit from Step 2 and Middle Panel (E) to Base (H) with Head Cap Bolts. (See Figure 3) Figure 3 Head Cap Bolt STEP 4 Attach Legs (I) and (J) to Base (H) with Head Cap Bolts. Slide Side Panels (M) into position.
- Page 4 Assembly Instructions 4/5 Head Cap Bolt Knob Machine Screw Adjustable Pin STEP 5 Attach Rails (F) to unit with Head Cap Bolts. Attach Adjustable Pins into side panels and middle panel at the desired level. Slide Shelves (G) into place. Attach Knobs to Doors (P) and (Q) with Machine Screws.
- Page 5 Assembly Instructions 5/5 Figure 6 Figure 7 Wood Screw Knob Machine Screw STEP 6 Attach Top Unit (A) to Leaf Top (B) with Wood Screws. (See Figure 6) Remove the Drawers in Top Unit (A), attach Knobs with Machine Screws. (See Figure 7) Head Cap Bolt STEP 7...
- Page 6 Buff with a dry clean cloth. Home Styles will provide replacements free of charge for missing or damaged hardware or parts within 30 days of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retail affiliate, Home Styles is under no obligation to provide replacement parts.
