Summary of Contents for Digitus DA-70894

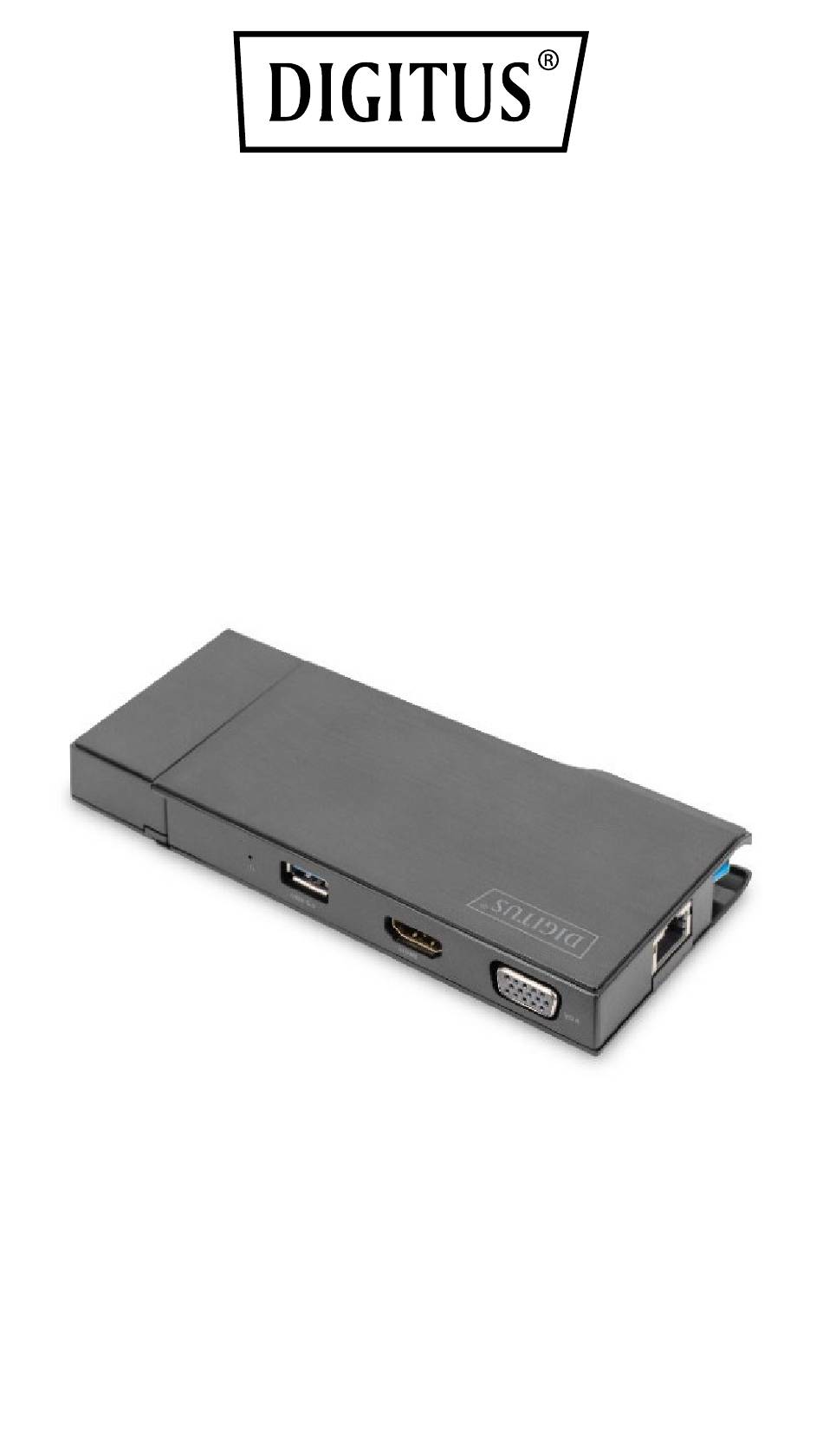

- Page 1 Universal Docking Station, USB 3.0, Travel Quick Installation Guide DA-70894...

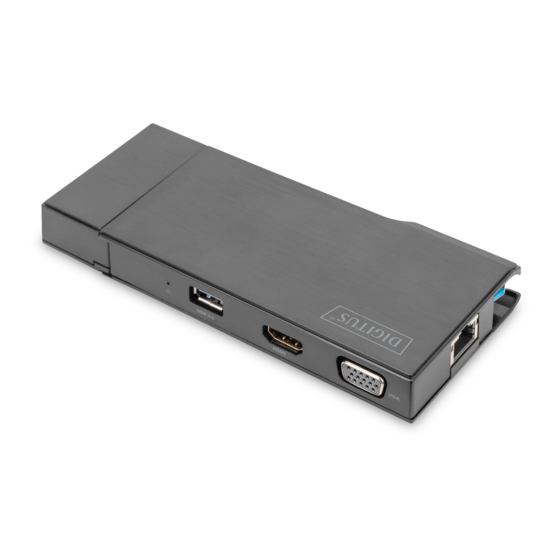

- Page 2 1. Introduction With the Universal Travel Docking Station, USB 3.0 from DIGITUS® you always have the most important interfaces with you. The docking station extends your notebook with seven additional ports. It offers two video interfaces (HDMI and VGA). The highest possible supported resolution (HDMI): 2560 x 1140@50Hz.
-
Page 3: Package Contents
1.1 Package Contents 1x USB 3.0 Docking Station 1x USB-A to USB-C Adapter 1x micro USB to USB-A cable (60cm) 1 x Quick Installation Guide 1.2 Specifications Supports 2560 x1440@50Hz resolution (HDMI) The video output capabilities depend on your notebook’s ... -
Page 4: Hardware Installation
2. Hardware Installation 2.1 Mode One (Data Transfer) Step 1: Connect the Mini Dock to a compatible Computer Step 2: Attach USB peripherals to the Mini Dock with Card Reader Combo 2.2 Mode Two (Data Transfer and USB power) Step 1: Connect the Mini Dock to a compatible Computer and connect the USB Power Cable... -
Page 5: Software Installation
Step 2: Attach USB peripherals to the Mini Dock with Card Reader Combo 3. Software Installation You can visit http://www.displaylink.com/downloads and download the latest drivers Windows Setup It is represented in the Microsoft Windows Task Tray and allows you to easily connect from http://www.displaylink.com/downloads/windows Double-click on the downloaded exe file start to run Setup Note: On some operating system, you will encounter a User Control... - Page 6 1. Click Install 2. Please wait while Windows configures the Displaylink Core Software. Your screen may temporarily go black or flash during this process. 3. When finished, the installation screen will disappear, and you will be returned to your desktop. Note: On some computers, you may need to reboot before being able to use your USB-C dock.
- Page 7 3.1 Configurations (Windows 10) 3.1.1 Audio Setting 1. From the taskbar, click the Displaylink Icon, then click Audio Setup 2. Choose Speaker...
- Page 8 3. Choose Microphone 3.1.2 Video Setting 1. From the taskbar, click the Displaylink Icon, then click Video Setup. 2. Select Display and choose Orientation to select Extend desktop to this display...
- Page 9 3.1.3 Advanced Display Mode 1. From the taskbar, click the Displaylink Icon, then click video Setup 2. Select Advanced Display Settings and choose a recommended resolution 3.1.4 Uninstalling the Driver The uninstallation will be slightly different depending on your operating system Please take these steps to uninstall the Driver on Windows From Start Menu, open Control Panel.
- Page 10 Click Yes A message may appear to state which software packages will also be uninstalled Click Yes to uninstall the packages that use Displaylink Core Software The uninstaller automatically uninstalls the software Once uninstalled, you will be prompted to reboot. Click Yes to complete the uninstall 3.2 Configurations (Mac OS X) 3.2.1 Introduction...
- Page 11 3.2.3 Connecting Displays to Your Mac 1. You have installed the MAC Driver 2. Connect each display to the device You can now connect up to 4 additional displays with an extra dock. Example setups include: Example One: 1. Connect Macbook Pro to the powered dock 2.
- Page 12 3.2.4 Mac OS X Setting 1. Open system preferences 2. Click Displays and configure...
- Page 13 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
