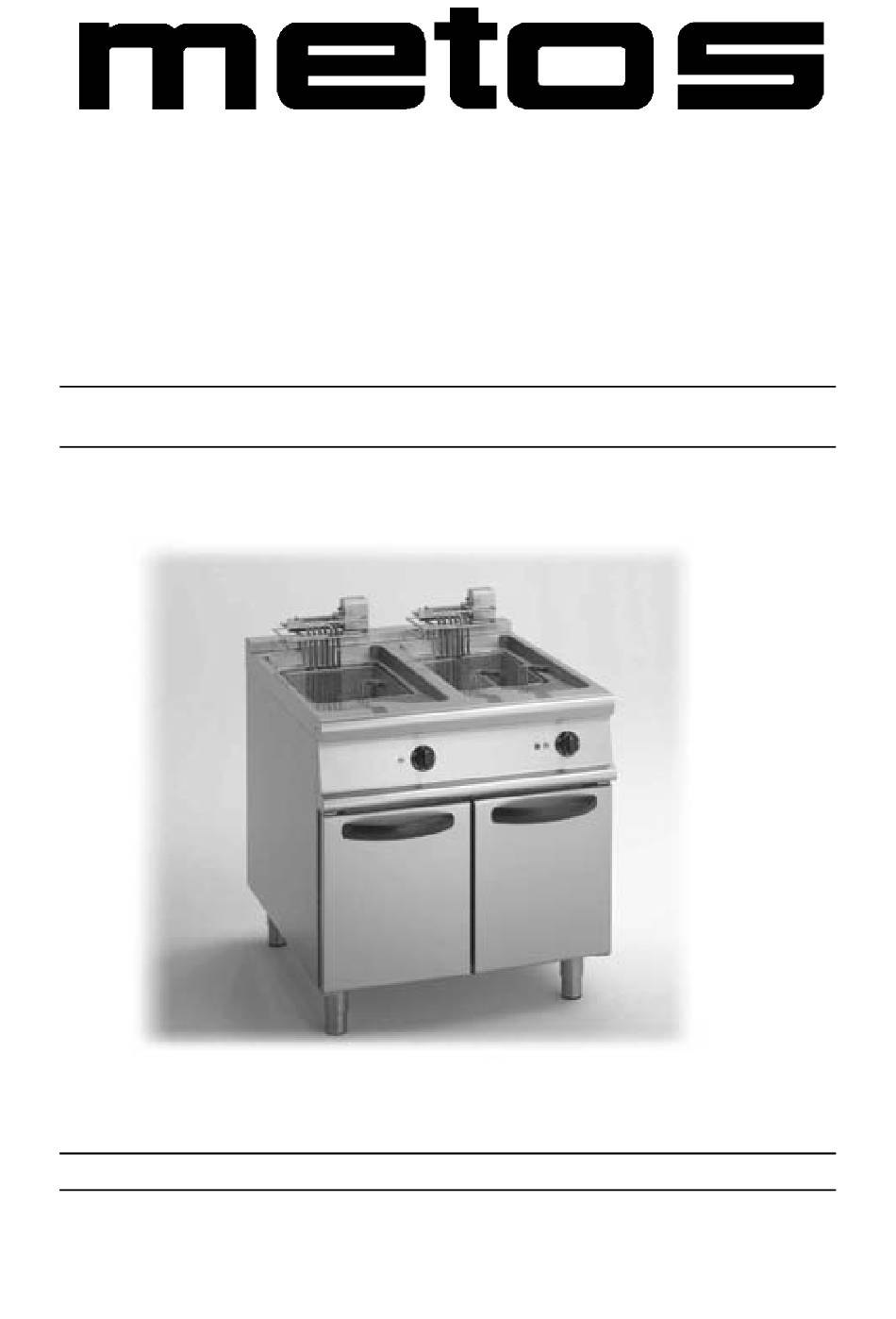

ELECTRIC DEEP FAT FRYERS
Serie900
TYPE: 92/04 FRE20L, 92/04 FRE15L, 93/04 FRE 10L, 94/04 FRE20L
User manual
S/N:
Valid from:29. 06. 2004
Rev.: 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metos 900 Series

  • Page 1 ELECTRIC DEEP FAT FRYERS Serie900 TYPE: 92/04 FRE20L, 92/04 FRE15L, 93/04 FRE 10L, 94/04 FRE20L User manual S/N: Valid from:29. 06. 2004 Rev.: 1.0...
  • Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
  • Page 4 1.7.2004 Rev. 1.0...
  • Page 5: Table Of Contents

    1.7.2004 Rev. 1. General information ..................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................2 1.3 Checking correspondence between the appliance and the manual ........ 2 2. Safety ......................3 2.1 Using the appliance safely ..................... 3 2.2 Safety instructions in the event of a fault ..............
  • Page 6 1.7.2004 Rev. 5.6 Disposing of packaging materials ................16 5.7 Positioning ........................16 5.8 Electrical connections ....................17 5.8.1 General information ..................... 17 5.8.2 Connecting a type "Y" power lead to the appliance’s terminal block ....18 5.9 Staff training ........................ 19 5.10 Rating plate ........................
  • Page 7: General Information

    1.7.2004 Rev. 1.0 General information 1. General information Read the instructions in this manual carefully, as they contain important information on how to install, use and service the appliance safely, properly, and effectively. Keep this manual in a safe place so that it can be used as reference by other operators of the appliance.
  • Page 8: Symbols Used On The Appliance

    1.7.2004 Rev. 1.0 General information 1.2 Symbols used on the appliance This symbol on a part warns the user that there are electrical terminals behind it. There- fore, the concerned part should only be removed by qualified personnel. 1.3 Checking correspondence between the appliance and the manual The rating plate of the appliance shows its serial number.
  • Page 9: Safety

    1.7.2004 Rev. 1.0 Safety 2. Safety 2.1 Using the appliance safely Being an appliance designed for professional use only, it should be operated by qualified personnel exclusively. Never leave the deep fat fryer unattended while in operation. Cooking with old and filthy oil is a safety risk; make sure that you always use fresh or purified oil.
  • Page 10: Safety Instructions In The Event Of A Fault

    1.7.2004 Rev. 1.0 Safety 2.2 Safety instructions in the event of a fault Always keep the lid close at hand, in an easily accessible place. Should oil catch fire, use the lid as first extinguishing means and then smother the fire with a fire blanket.
  • Page 11: Functional Description

    1.7.2004 Rev. 1.0 Functional description 3. Functional description 3.1 Application of the appliance The deep fat fryer is intended to cook fresh or deep-frozen products and to fry half-cooked products continuously. 3.1.1 Prohibited use/Use for unintended purposes The deep fat fryer is not designed for use as a bain-marie or pasta cooker. The manufacturer cannot be held liable for any faults caused by defective installation or inappropriate use of the appliance.
  • Page 12: Operating Principle

    1.7.2004 Rev. 1.0 Functional description 3.3 Operating principle Oil is heated to the desired temperature by sheathed heating elements that are immersed into the oil and can withstand both mechanical and thermal stresses. Heating elements can be easily lifted up and fully swung out to clean the tank. Oil temperature is controlled by a thermostat and can be selected from 110°C to 190°C (230°F to 374°F) (item 1 in ) and at intermediate values.
  • Page 13: Operating Instructions

    1.7.2004 Rev. 1.0 Operating instructions 4. Operating instructions 4.1 Prior to use 4.1.1 Preparing the appliance for use Before cooking food for the first time, we recommend cleaning the appliance --and espe- cially the tanks-- thoroughly. Remove all packaging materials and adhesive films from the deep fat fryer very carefully.
  • Page 14: Using The Appliance

    1.7.2004 Rev. 1.0 Operating instructions 4.2 Using the appliance 4.2.1 Filling the tank with oil First of all, check the drain valve is closed (item 1 in Fig. 2) Fig. 2 Lever to open\close the drain valve Drain valve Fill the tanks with good quality deep-frying oil up to the maximum level mark (see item 2 in Fig.
  • Page 15: Switching On The Appliance

    1.7.2004 Rev. 1.0 Operating instructions Use liquid deep-frying oil only. If you should use solid fat to fry, melt it in a separate pan before using it to avoid over- heating the heating elements, which could result in a fire hazard. During normal operation, oil level should always be kept between the maximum and min- imum level marks.
  • Page 16: Switching Off The Appliance

    1.7.2004 Rev. 1.0 Operating instructions 4.2.4 Switching off the appliance To switch off the deep fat fryer, turn the thermostat to position "0". Now, the power indi- cator light will also go out. 4.2.5 Safety thermostat — wait for a few minutes so that oil temperature drops below 180°C (356°F); —...
  • Page 17: Emptying The Tank

    1.7.2004 Rev. 1.0 Operating instructions 4.2.6 Emptying the tank Empty the tank as follows: • insert the drain hose pipe (item 1 in Fig. 5) into the drain valve and turn the hose pipe to lock it as shown in Fig.5; •...
  • Page 18: After-Use Care

    1.7.2004 Rev. 1.0 Operating instructions 4.3 After-use care 4.3.1 Cleaning Before cleaning, turn off the appliance and disconnect power supply to it by switching off the safety switch located upstream of the appliance. Wait until the deep fat fryer has cooled down before you start cleaning it. Drain all oil from the tank, see chapter "Emptying the tank"...
  • Page 19 1.7.2004 Rev. 1.0 Operating instructions Rust If you need to remove rust stains, contact manufacturers of industrial detergents to find a suitable product. Industrial descaling products can also be used to that end. After using the descaler and rinsing off the appliance with clean water, an alkaline detergent may be required to neutralize any acid compounds left on the surface.
  • Page 20: Idle Period

    1.7.2004 Rev. 1.0 Operating instructions 4.3.2 Idle period If the appliance will remain idle for a certain period of time, clean it and wipe it dry first, and then apply a film of a suitable product (such as vaseline oil spray or similar products) to protect it.
  • Page 21: Installation

    1.7.2004 Rev. 1.0 Installation 5. Installation 5.1 General information The manufacturer cannot be held liable for any injuries to persons or damage to property resulting from installation errors or from inappropriate use of the appliance and is not re- sponsible for any faults caused by defective installation. In such cases the warranty shall be null and void.
  • Page 22: Possible Environmental Interference

    1.7.2004 Rev. 1.0 Installation 5.3 Possible environmental interference If the appliance is installed in the immediate vicinity of other electric units, ensure that they do not interfere with each other. They should all have independent power supplies. If the appliance is installed with its sides next to flammable walls (made of wood or sim- ilar materials) or to heat-sensitive walls (made of plasterboard or similar materials), suit- able protective measures should be taken to keep such walls undamaged.
  • Page 23: Electrical Connections

    1.7.2004 Rev. 1.0 Installation 5.8 Electrical connections 5.8.1 General information The appliance must always be connected to an earthing (grounding) system while in op- eration. The appliance is pre-set to be connected to the electrical switchboard. Before connecting the appliance to the power supply network check: •...
  • Page 24: Connecting A Type "Y" Power Lead To The Appliance's Terminal Block

    1.7.2004 Rev. 1.0 Installation 5.8.2 Connecting a type "Y" power lead to the appliance’s terminal block The power lead can only be replaced by the manufacturer’s technical support service or by a technician having similar qualification (the appliance is supplied complete with pow- er lead).
  • Page 25: Staff Training

    1.7.2004 Rev. 1.0 Installation 5.9 Staff training Train personnel in the operation of the appliance by referring to the user’s manual and hand them over the manual as well. 5.10 Rating plate The rating plate showing the specifications of the corresponding model is applied in the position shown in the installation and connection drawings and includes the data listed be- low: Manufacturer:...
  • Page 26: Troubleshooting

    1.7.2004 Rev. 1.0 Troubleshooting 6. Troubleshooting If the appliance fails to work, first of all check for blown fuses (overload protection) in the fuse box found in the electrical switchboard. Have the overload protection device checked by a qualified technician. This appliance contains no parts that can be repaired by the user.
  • Page 27: Technical Specifications

    1.7.2004 Rev. 1.0 Technical specifications 8. Technical specifications Wiring diagram ........Installation drawings......Technical specifications table....
  • Page 28 SC00329: wiring diagram 92/04FRE15L - 3/N/PE ~400V 50 Hz...
  • Page 29 1.7.2004 Rev. 1.0 Technical specifications LE00331: legend of the wiring diagram SC00329 92/04FRE15L 3/N/PE ~400V 50 Hz Letter code Codes Descriptions Specifications 8219601 Control thermostat 100 - 180°C - 3F 8219602 Safety thermostat 245°C - 3F 9000481 Heating element 13000W - 230V A038506 Line pilot lamp 400V - 150°C...
  • Page 30 6SC00470: wiring diagram 92/04FRE20L - 3/N/PE ~400V 50 Hz...
  • Page 31 1.7.2004 Rev. 1.0 Technical specifications 6LE00435: legend of the wiring diagram 6SC00470 92/04FRE20L 3/N/PE ~400V 50 Hz Letter code Codes Descriptions Specifications 8219601 Control thermostat 100 - 180°C - 3F 8219602 Safety thermostat 245°C - 3F A039800 Limit micro switch A038506 Line pilot lamp 400V - 150°C...
  • Page 32 SC00328: wiring diagram 93/04FRE - 3/N/PE ~400V 50 Hz...
  • Page 33 1.7.2004 Rev. 1.0 Technical specifications LE00330: legend of the wiring diagram SC00328 93/04FRE 3/N/PE ~400V 50 Hz Letter code Codes Descriptions Specifications B1-2 8219601 Control thermostat 100 - 180°C - 3F B16-17 8219602 Safety thermostat 245°C - 3F B31-32 A039800 Limit micro switch A038506 Line pilot lamp...
  • Page 34 6SC00471: wiring diagram 94/04FRE - 3/N/PE ~400V 50 Hz...
  • Page 35: Technical Specifications

    1.7.2004 Rev. 1.0 Technical specifications 6LE00436: legend of the wiring diagram 6SC00471 94/04FRE 3/N/PE ~400V 50 Hz Letter code Codes Descriptions Specifications B1-2 8219601 Control thermostat 100 - 180°C - 3F B16-17 8219602 Safety thermostat 245°C - 3F B31-32 A039800 Limit micro switch E1-2 A038506...
  • Page 36 1.7.2004 Rev. 1.0 Technical specifications Installation drawing 92/04 FRE20L Description Cable fitting Distance between feet Tank dimensions Rating plate...
  • Page 37 1.7.2004 Rev. 1.0 Technical specifications Installation drawing 92/04 FRE15L Description Cable fitting Distance between feet Tank dimensions Rating plate...
  • Page 38 1.7.2004 Rev. 1.0 Technical specifications Installation drawing 93/04 FRE Description Cable fitting Distance between feet Tank dimensions Rating plate...
  • Page 39 1.7.2004 Rev. 1.0 Technical specifications Installation drawing 94/04 FRE Description Cable fitting Distance between feet Tank dimensions Rating plate...
  • Page 40: Voltage Specification

    1.7.2004 Rev. 1.0 Technical specifications Item Type Voltage Specification Volume with package 92E20L,92E15L 0,54 m³ Volume with package 0,76 m³ Volume with package 1,02 m³ Total weight 92E20L 82 kg Total weight 92E15L 78 kg Total weight 103 kg Total weight 152 kg Number and capacity of tanks 92E20L...
