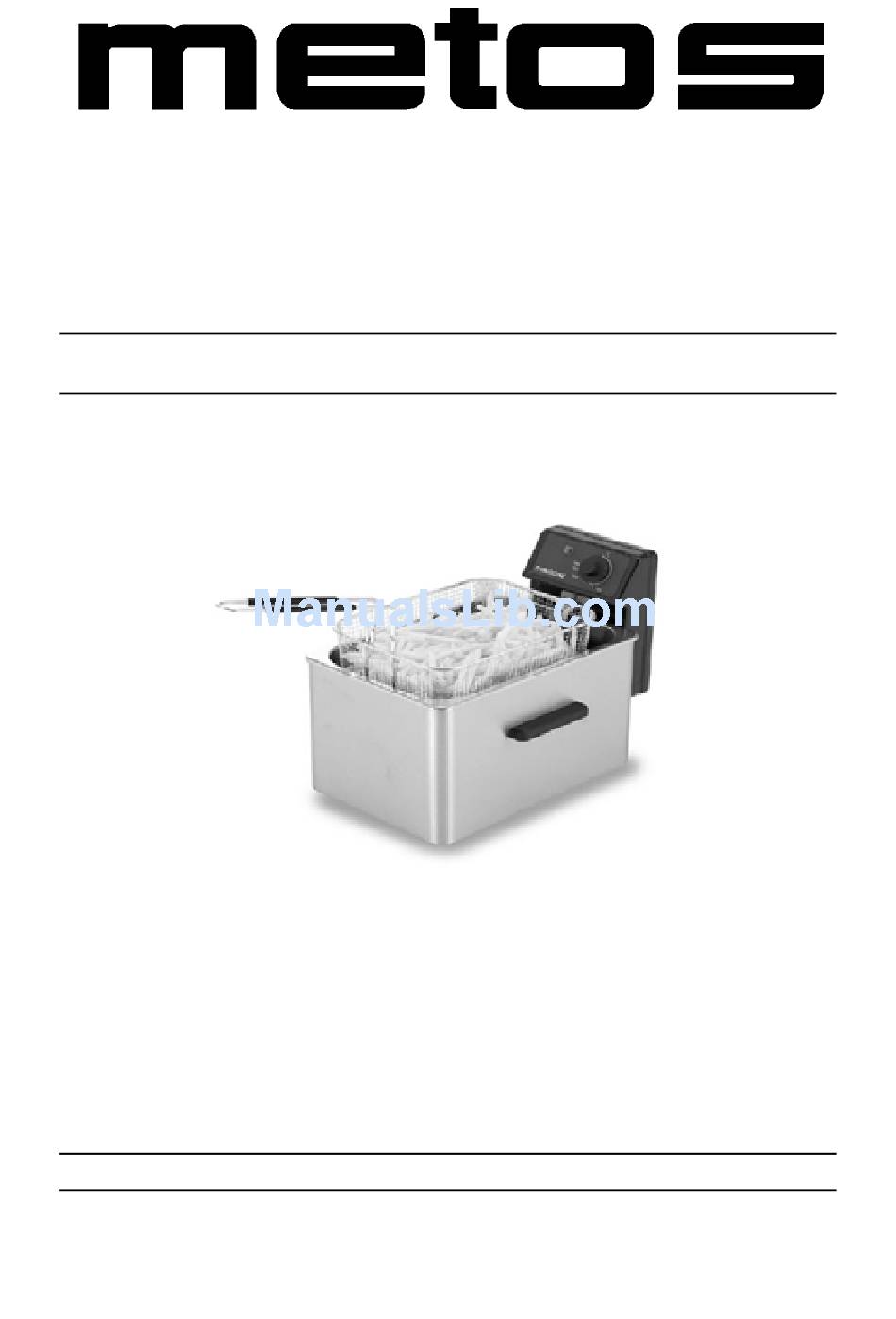

- Page 1 FRYER COUNTERTOP MODELS TYPE: FT4 Eco, FT6 Eco Installation and Operation Manual S/N: Rev.: 2.1...
- Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
- Page 4 4.2.2002 Rev. 2.1...
-
Page 5: Table Of Contents
4.2.2002 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking the relation of the appliance and the manual ..........1 2. Safety ......................2 2.1 Safety use of the appliance .................... 2 2.2 Safety instructions in case of malfunction .............. - Page 6 4.2.2002 Rev.
-
Page 7: General
4.2.2002 Rev. 2.1 General 1. General Carefully read the instructions in this manual as they contain important information re- garding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations. -
Page 8: Safety
4.2.2002 Rev. 2.1 Safety 2. Safety 2.1 Safety use of the appliance The fryer should never be allowed to work empty. Should this happen by mistake, the safety thermostat will cut off the fryer. An overfilled basket or or filled with products that are too wet (eg. ice crystals on frozen food) will make the oil froth and this will reduce the quqlity of the fried food! If oil catches fire, use the cover to extinguish the flames. -
Page 9: Functional Description
4.2.2002 Rev. 2.1 Functional description 3. Functional description 3.1 Operating principle 3.1.1 Construction Cover Basket. Tank. Handle Control box Thermostat knob Signal light, orange Heating element Safety thermostat (in control box) Safety swirtch Connection cable Rating plate... -
Page 10: Operation Instructions
4.2.2002 Rev. 2.1 Operation instructions 4. Operation instructions 4.1 Before using the appliance 4.1.1 Preparing the operation Before using the fryer for the first time: clean the tank thoroughly. 4.2 Operation 4.2.1 Operation procedures • Remove the cover (1) of the tank. •... -
Page 11: Frying
4.2.2002 Rev. 2.1 Operation instructions • Turn the thermostat knob to a maximum of 100°C, heat for 1 minute, then turn the knob back to 0. Repeat this operation until the fat has become liquid. 4.2.2 Frying • Choose the temperature with the selector (6), ideal temperature is 180 °C •... -
Page 12: After Use
4.2.2002 Rev. 2.1 Operation instructions • If the safety thermostat cut off often, call the service. If the heating elements are not correctly on their place, the fryer does not warm up. Check that the micro switch works. 4.3 After use 4.3.1 Daily cleaning •... -
Page 13: Installation
4.2.2002 Rev. 2.1 Installation 5. Installation 5.1 Electrical connections Electrical connection of the machine must be done by an authorized person only accord- ing to the local laws and rules. Check that the supply voltage corresponds to the voltage specified in the rating plate of the fryer. - Page 14 4.2.2002 Rev. 2.1 Installation...
-
Page 15: Technical Specifications
4.2.2002 Rev. 2.1 Technical specifications 7. Technical specifications FT4,6 Eco wiring diagram (valid until 29.11.1999) FT4,6 Eco wiring diagram (valid from 30.11.1999) FT4 Eco insatallation drawing FT6 Eco installation drawing... - Page 16 FT4,6 Eco wiring diagram (valid until 29.11.1999)
- Page 17 FT4,6 Eco wiring diagram (valid from 30.11.1999)
- Page 18 4.2.2002 Rev. 2.1 Technical specifications FT4 Eco insatallation drawing...
- Page 19 4.2.2002 Rev. 2.1 Technical specifications FT6 Eco installation drawing...
- Page 20 4.2.2002 Rev. 2.1 Technical specifications Item Type Volt- Specification Oil capacity 3,5-4,0l Oil capacity 5,0-7,0l Oil capacity 8,0-9,5l Power 2,3kW Power 4,6kW Power 6,9kW Supply cable 3x1 mm Supply cable 4x1,5mm Supply cable 5x1,5mm Supply cable length 1,5m Supply cable length Supply plugg Supply plugg Weight nt...
