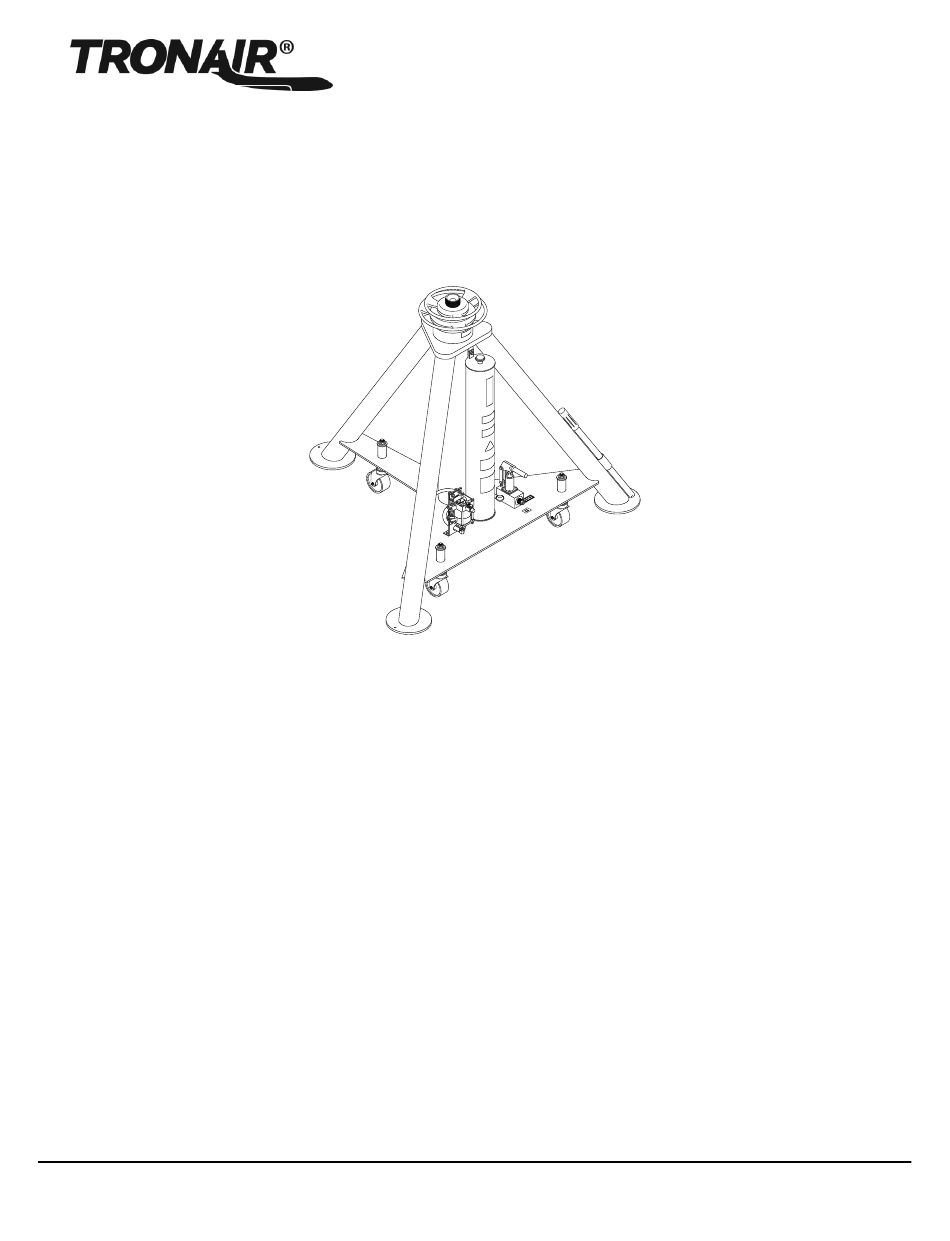

- Page 1 OPERATION & SERVICE MANUAL Model: 02A7843-0112 25 Ton Single Stage Jack 01/2004 - Rev. 04 Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 3 Model: 02A7843-0112 25 Ton Single Stage Jack TABLE OF CONTENTS PAGE DESCRIPTION .................................. 1 USAGE....................................1 SPECIFICATIONS ................................1 ASSEMBLY INSTRUCTIONS ............................1 GENERAL INSTRUCTION ..........................1 PRE-USE CHECKS ............................1 OPERATING INSTRUCTIONS ............................1 JACK INSTRUCTIONS ............................1 MAINTENANCE ................................2 SERVICING JACK ..............................
-
Page 4: Specifications
25 Ton Single Stage Jack This product can not be modified without the written approval of Tronair, Inc. Any modifications done without written approval voids all warranties and releases Tronair, Inc., it suppliers, distributors, employees, or financial institutions from any liability from consequences that may occur. -
Page 5: Pneumatic Pump
Model: 02A7843-0112 25 Ton Single Stage Jack MAINTENANCE GENERAL All maintenance and/or repair work should be done using good workmanship practices and proper tools. The work area should be clean and free of dirt. When O-rings and backup rings are removed, every effort should be made to avoid the contact of tools with the critical surfaces of parts. -
Page 6: Troubleshooting
GUARANTEES/LIMITATION OF LIABILITY Tronair products are warranted to be free of manufacturing or material defects for a period of one year after shipment to the original customer. This is solely limited to the repair or replacement of defective components. This warranty does not cover the... -
Page 7: Parts List
Model: 02A7843-0112 25 Ton Single Stage Jack NOTES: Those items designated as kits contain all hardware necessary for installation. Unless otherwise listed, all replacement bolts are to be Grade 5 or better. Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. - Page 8 Model: 02A7843-0112 25 Ton Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TF-1043-06*22.5 Assembly, Hose N-2016-05-S Tee, Swivel Nut Run N-2004-15-S Elbow, Extra Long, 90 Male...
- Page 9 Model: 02A7843-0112 25 Ton Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description K-3438 Kit, Reservoir Replacement; consists of: N-2412-09 Connector, Barbed Hose N-2208-01-S Tee, Male Branch TF-1047-04*06.5...
- Page 10 Model: 02A7843-0112 25 Ton Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description TF-1043-06*25.0 Assembly, Hose TF-1047-04*10.0 Hose, Push-on J-3415-01 Bracket, Air Pump N-2410-01 Elbow, 90 Male...
- Page 11 Model: 02A7843-0112 25 Ton Single Stage Jack Parts List When ordering replacement parts/kits, please specify model, serial number and color of your unit. Item Part Number Description R-1885 Screw, Extension H-2326 Nut, 30 Ton Stop G-1151-109210 Screw, Socket Head Cap, 1/2-13 x 1" long...
- Page 12 Model: 02A7843-0112 25 Ton Single Stage Jack H-1173 Valve Illustration CAUTION! Valve H-1173 must be installed so that the arrow on top of handle is pointing in the direction of the air flow; towards the pump. Incorrect installation may result in valve failure. Valve may not block incoming air and jack will continue to rise.
- Page 13 APPENDIX I HC-1751 Hand Pump Parts List...
- Page 15 Model: HC-1751 3250 Hand Pump Parts List With Illustrations 08/2001 – Rev. OR Tronair, Inc. Phone: (419) 866-6301 | 800-426-6301 1 Air Cargo Pkwy East Web: www.tronair.com Swanton, OH 43558 Email: sales@tronair.com...
- Page 17 Model: HC-1751 3250 Hand Pump Parts List This pump is compatible with MIL-PRF-5606 / MIL-H-83282 Hydraulic Fluids only. Reference Parts List Illustration on following page. Item Part Number Description 5M1-000-001 Body, Pump 506-000 Half, Flange 18-000 Screw, Socket Head Cap Not Shown H-1009-01 Handle...
-
Page 18: Parts List Illustration
Model: HC-1751 3250 Hand Pump Parts List Illustration This pump is compatible with MIL-PRF-5606 / MIL-H-83282 Hydraulic Fluids only. WARNING Item 2 is a preset relief valve. Do Not disassemble this valve. Replacement parts are available as a preset relief valve assembly. 08/2001 | Rev. - Page 19 APPENDIX II Haskel Manufacturer Data...
