Crystal socket Q1 below:

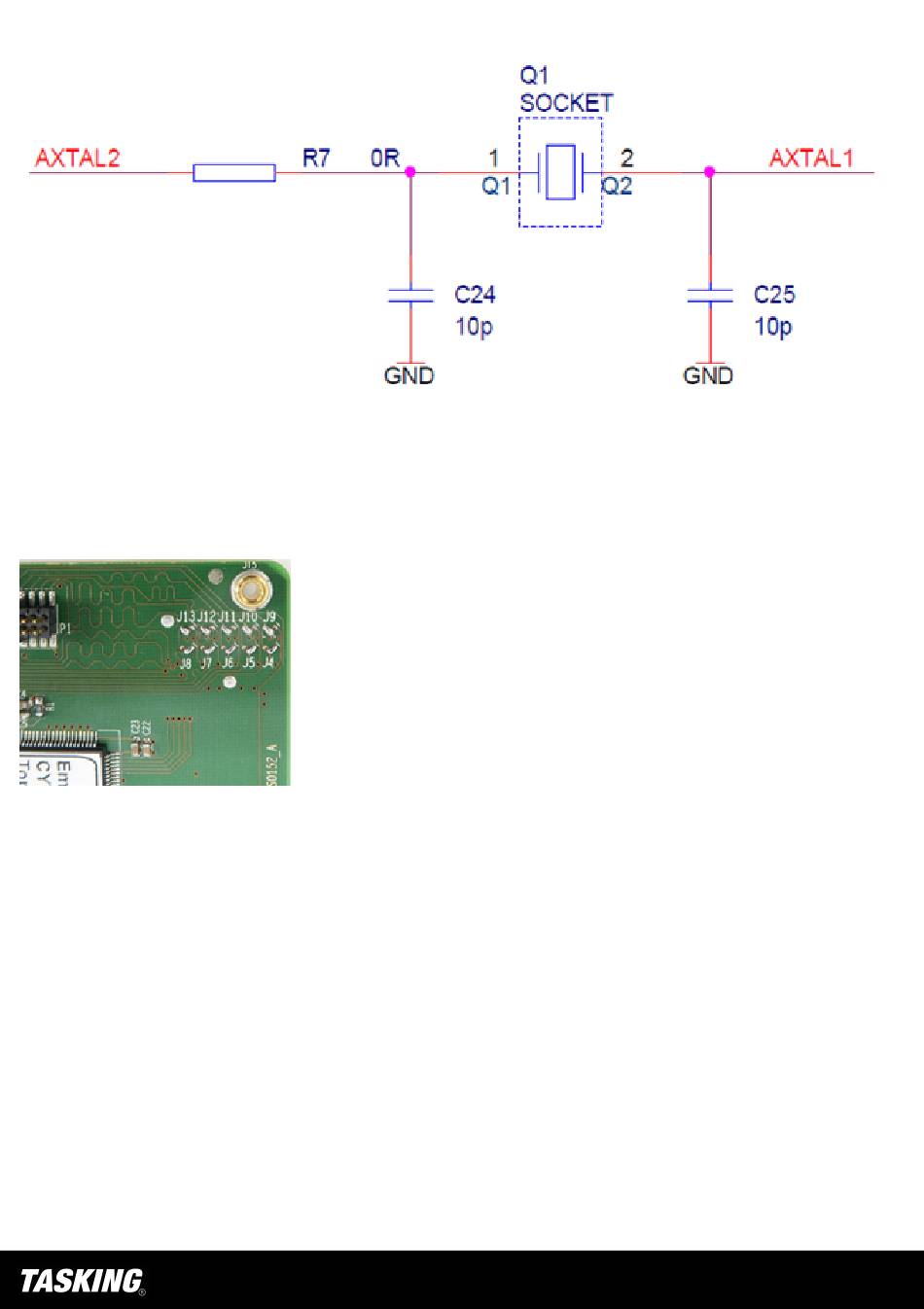

J4 - J13: Trace port configuration
Soldered jumpers are by default placed to connect ARM CoreSight 20 connector trace signals to
port P18 (J9 – J13). If P18 on user target board is used for any other purpose than trace,
Emulation Adapter allows changing the trace source to port P22 (J4 – J8) with relocation of the
jumpers.
