- Page 1 XAG® RevoCast 2.0 P100 Version User Manual Version 1.0...
- Page 2 To User Dear user, thank you for choosing XAG's products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us If you have any questions about this document, please contact our Technical Support team via email:...
-
Page 3: Safety Guidelines
Calibrate with the granules to be spread. • It is NOT allowed to use a non-XAG granule container, covert the container on your own or increase its capacity in that it may result in malfunctions, inefficient operations, or damage to the product, which are not covered by the warranty. -
Page 4: List Of Items

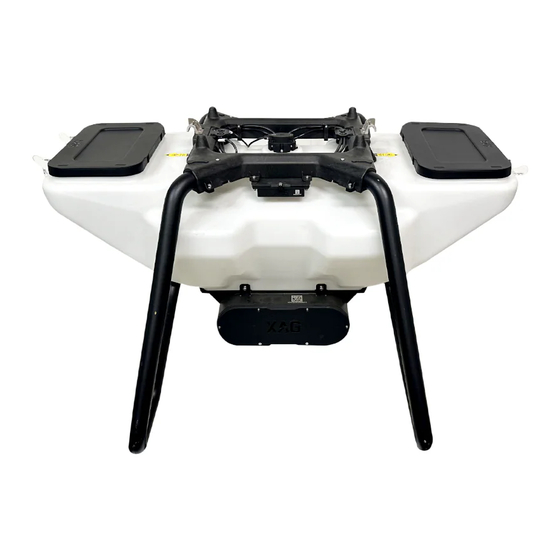

Introduction XAG® RevoCast 2.0 (RevoCast system) is an all-new upgrade based on XAG® RevoCast 1.0. Combining with XAG® P100 Agricultural Drone, it satisfies demands under various scenarios, from spreading seeds and fertilizers to providing feed for fish and shrimp in aquaculture, thus offering intelligent, precision, efficient, and flexible production solutions. -
Page 5: Before Installation
① Fill the liquid tank with soapy water or the laundry/water mixture. Start spraying manually within the XAG One App to clean pesticide residues in the RevoSpray system. ② Fill the liquid tank with clean water. Start spraying manually to wash off residual soapy water or the laundry powder/water mixture in the RevoSpray system. -
Page 6: Installation
Quick-Release Knob ③ Cable Organizer Spraying Bar Nozzle Signal Cable ④ Installation Install RevoCast System Lift the airframe, place it onto the RevoCast system, and line up the holes on the bottom of the airframe with the bosses on the top of the RevoCast system. -
Page 7: Connect Cables
Lock the hasp on the airframe to the hook on the RevoCast system. Connect Cables Connect the mount cable and the RevoSpray cable. Affix them to the cable holder under the battery compartment. Mount Cable RevoCast Cable www.xa.com... -
Page 8: Maintenance
Maintenance After operation, clean the RevoCast system timely to avoid granules adhesion, foreign matter entanglements, clogs, inaccurate measurement, etc., which affect its proper functioning. Rinse RevoCast System ① Detach the spreading disc signal cable. ② Unlock the hasps of both quick-release units. ③... - Page 9 Maintenance of Screw Feeder ① Check the screw feeder for wear regularly. If the wear depth exceeds 2 mm (the original diameter is 79 mm), please replace it timely. ② Check if the cross slot is clean and free of foreign matters. Screw Feeder Cross Slot Fit Quick-Release Unit...
-
Page 10: Specifications
Please remove it and try again. Install the quick release units in accordance with the sign of "L" and "R", which are NOT interchangeable. Specifications Model M4RC-60B-P Compatible with XAG® P100 Agricultural Drone Dimensions 983×873×573 mm Net Weight 13kg Rated Capacity of Granule Con-... - Page 11 06. To the maximum extent permitted by law, XAG shall not be liable for all losses caused by your im- proper operation. Also, XAG shall not be liable for any indirect, consequential, punitive, accidental, special or exemplary damages, including any loss incurred as a result of your purchase, use, or in- ability to use the product, even if you have been advised of the possibility of such loss.
