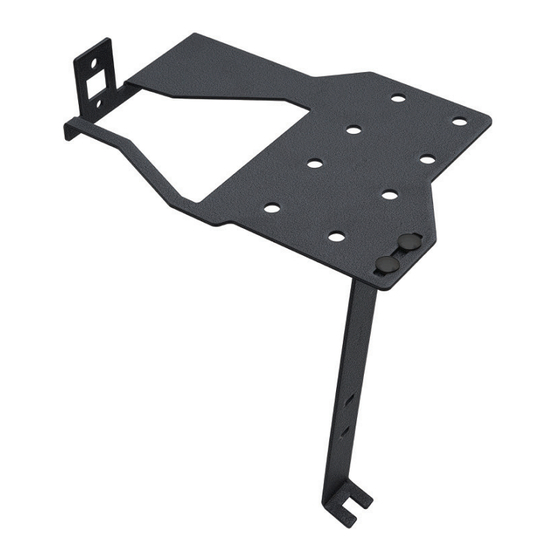

- Page 1 Product image FORD BRONCO COMPRESSOR BRACKET Installation Instructions Part Number: AC1001 YEAR MAKE MODEL ENGINE 2021 2023 FORD BRONCO L4 2.3L TURBO 2021 2023 FORD BRONCO V6 2.7L TWIN TURBO...
-
Page 2: Parts Included
PARTS INCLUDED Product image ITEM PART NO. DESCRIPTION X-11181 Compressor bracket X-11182 Compressor support bracket X-6143 M8 x 1.25mm x 20mm Steel Square-Neck Carriage Bolt X-8046 M8 x 1.25mm Nylon Insert Locknut X-6011 1/4" Washer X-8014 BLK Zip tie RECOMMENDED TOOLS Ratcheting Wrench Extension 8mm Socket... -
Page 3: Before You Begin
Injen accessory systems excluding the lter element. Any and all warranty coverage is limited to the repair or replacement of the defective part only, at Injen Technology’s discretion. The warranty does not cover incidental or consequential damages, nor does it cover the cost of installation or removal of the defective part or its replacement. Proof of purchase is required. - Page 4 1. Attach the compressor to the bracket, 2. Ensure the compressor is mounted in 3. There are 3 nuts securing the passenger then secure the compressor with 4 bolts. the correct direction. side coil over top hat. Remove the nut that (Bracket shown up side down) is closest to the engine.
- Page 5 Failure to check the alignment and adjust the accessory system can cause damage that will void the warranty. Injen Technology is not responsible for any damages caused by/from improper installation. 13. Ensure all nuts and bolts are properly secured.
