H
N
WARNING: FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS AND NOT USING THE PRO-
VIDED HARDWARE MAY DAMAGE THE INTAKE SYSTEM, ENGINE AND COMPONENTS!!!
*Do not attempt to install the intake system while the engine is hot.
Severe burn could result from touching hot engine components!
Report any defective or missing parts to the authorized Injen dealer you purchased this product from. Before installing any parts of this system,
please read the instructions thoroughly. If you have any questions regarding installation, please contact your Injen Technology dealer. Installation
DOES require some mechanical skills. A qualified mechanic is always recommended.
A Limited Lifetime Warranty to the original purchaser against defects in material and workmanship on all Injen intake systems excluding the filter element.
Any and all warranty coverage is limited to the repair or replacement of the defective part only, at Injen Technology's discretion. The warranty does not
cover incidental or consequential damages, nor does it cover the cost of installation or removal of the defective part or its replacement. Proof of purchase
is required.
Page 1 EVO2001
244 Pioneer Place Pomona California 91768 U.S.A Office: (909) 839-0706 FAX: (909)839-0427 Email:Tech@injen.com WWW.INJEN.COM
Instruction Manual
A
G
C
P/N:EVO2001
Make: Scion/Subaru/Toyota
Model: FRS/BRZ/86
Year: 2013-2017
Engine: 2.0L Boxer 4 Cyl.

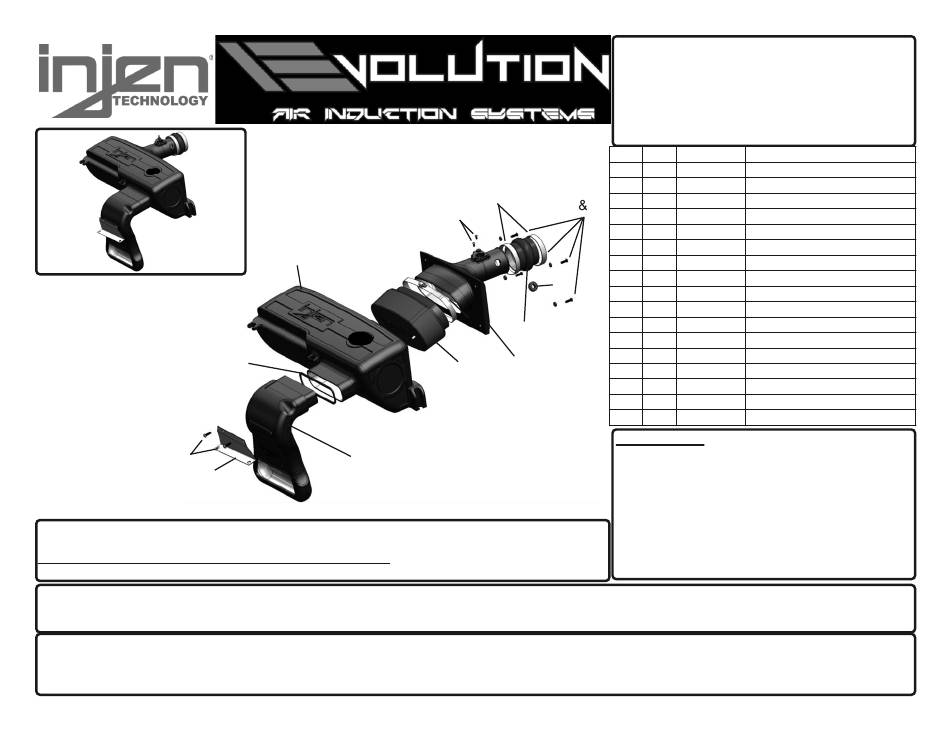

EXPLODED VIEW
Item QTY.
A
B
E
L
M
C
P
D
E
F
G
H
K
I
J
K
F
L
M
B
D
N
P
CAUTION:
System should be removed in any wet climate
conditions. Failure to comply with the above
warning may cause water to be absorbed into
the engine through the filter causing serious
damage to your engine. Injen Technology as-
sumes no liablity to damages to your engine
due to water entering your engine through the
Injen Intake system
Vehicle Application:
P/N
Discription
#15103
Air box housing
1
#15102
Air box plenum
1
#15104
Scoop
1
#1131
Web Nanofiber Dry filter
1
#4004
2
#48 clamps
#3209
1
3.00" hump hose
#3211
1
Scoop Gasket
#6083
2
M6X10mm cap screws
#8040
1
Vinyl plug
Not used
1
#8026
Grommet
#6100
4
M6x20mm phillips screws
#8047
4
Rubberized washers
#20124
1
Scoop Bracket
#6047
M4x10mm Button head screws
2

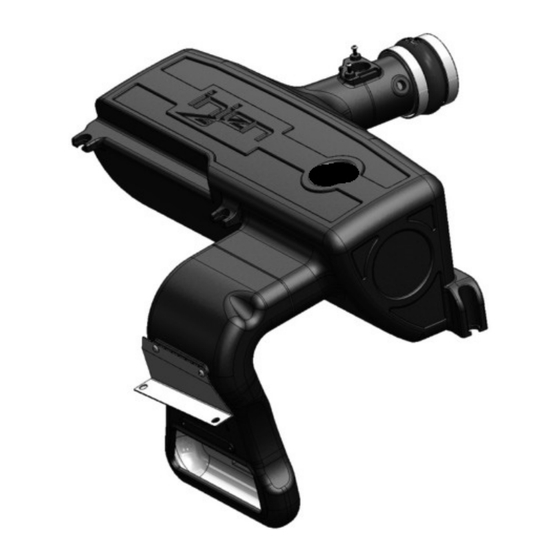

Injen Technology Ram Air Intake
Advertisement
Related Manuals for injen technology Evolution EVO2001
Summary of Contents for injen technology Evolution EVO2001
- Page 1 A Limited Lifetime Warranty to the original purchaser against defects in material and workmanship on all Injen intake systems excluding the filter element. Any and all warranty coverage is limited to the repair or replacement of the defective part only, at Injen Technology’s discretion. The warranty does not cover incidental or consequential damages, nor does it cover the cost of installation or removal of the defective part or its replacement.
- Page 2 Instruction Manual P/N:EVO2001 NOTE: This intake kit may not work on vehicles with the following aftermarket modifications. •Aftermarket Intercooler piping •Aftermarket intercooler •Turbo upgrade •Modified body panels •Suspension & Chassis modifications The SuperNano-Web filter media is a dry synthetic media that outperforms the competition. The media itself is a proprietary base blend of synthetics and cellulose.
- Page 3 Instruction Manual P/N:EVO2001 This line will not be used Loosen the clamp on the Sound Tube 3. With pliers, pull back the crank Stock box shown in this picture. resonator. Loosen the clamp on the intake DISCONNECT BATTERY BEFORE case line from the intake fitting. tube and re-move the sound tube.
- Page 4 Instruction Manual P/N:EVO2001 Gasket 16. Install the ram scoop to the front 14. Push back radiator support 13. Locate the 2 remaining bolts on 15. Install the provided gasket to of the vehicle between the bumper allowing for the install of the injen ram bottom of the radiator support in front the ram scoop.
- Page 5 Instruction Manual P/N:EVO2001 hump hose 26. Install the filter to the intake Secure and tighten using 25. Install the 3” hump hose with 27. Install the plenum to the air plenum, secure and tighten using 8mm clampsprovided to the intake phillips screwdriver.
- Page 6 3. If there are no issues, continue to enjoy your added performance from the Injen performance Intake kit. 4. Injen Technology recommends you periodically check clearance and adjust if needed! Failure to check the alignment and adjust the intake can cause damage that will void the warranty. Injen Technology is not responsible for any damages caused by/from improper installation.
