injen technology SP1230 Quick Start Manual

Part number SP1230
2013-2020 Subaru BRZ
2013-2016 Scion FR-S
2017-2020 Toyota 86
2.0L 4cyl

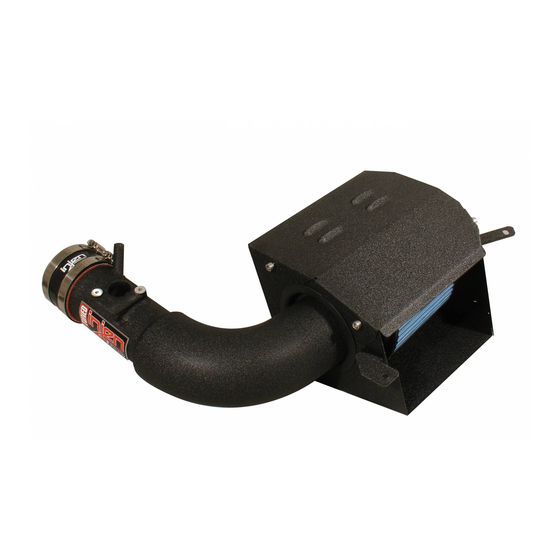

1- 1 intake system
3.5" Web nanofiber Dry filter
1-
1- Heat Shield
1- Heat Shield Cover
1- 3" straight hose
2- 048 Clamps
#
5- M6 button head screws (#6083)
2- M4 button head screws
3- M6x16mm Hex screws
1- M6 flange nut
3- Fender washers
1- 1.5" vinyl plug
1- Rubber Trim @13.5"L (#6023)
Note: All parts and accessories now
sold on-line at :
"injenonline.com"
Note: The C.A.R.B Exempt sticker must
be attached under the hood in a man-
ner such that it is easily viewed by an
emissions inspector.
CARB E.O. 2013-2014 models only
Figure 1
Figure 2
"The World's First Tuned air Intake System!"
Factory safe air/fuel ratio's for Optimum performance
Injens tuning process covered by three U.S. Patents
Congratulations! You have just purchased the best engineered,
dyno-proven cold air intake system available.
Please check the contents of this box immediately.
Report any defective or missing parts to the Authorized Injen
Technology dealer you purchased this product from.
Before installing any parts of this system, please read the instructions
(#1021)
thoroughly. If you have any questions regarding installation please
(#11086)
contact the dealer you purchased this product from.
(#11087)
Installation DOES require some mechanical skills. A qualified
mechanic is always recommended.
(#3044)
*Do not attempt to install the intake system while the engine is hot.
(#4004)
The installation may require removal of radiator fluid line that may be
hot.
Injen Technology offers a limited lifetime warranty to the original
(#6047)
purchaser against defects in materials and workmanship. Warranty
(#6005)
claims must be handled through the dealer from which the item was
(#6002)
purchased.
(#6010)
Injen Technology 244 Pioneer Place Pomona, CA 91768 USA
(#8040)
Note: This intake system was Dyno-tested with an Injen filter and
Injen parts. The use of any other filter or part will void the
warranty and CARB exemption number.
Parts and accessories are available on line at "Injenonline.com
Warning: Manufactures attempting to duplicate Injen's
1- Calibration Method for Air Intake Tracts for Internal Combustion Engines.
2- Calibration Device for Air Intake Tracts for Internal Combustion Engines.
3- Calibration Method and Device for Air Intake Tracts having Air Fusion Inserts
Note: Injen strongly recommends that this system be installed by a
professional mechanic.
NOTE: DISCONNECT BATTERY BEFORE
INSTALLATION! THIS WILL RESET AND
Cyborg Intake System
Please check the contents of this box immediately.
patented process will now face legal action.
MR Technology Step down process:
START FUEL-TRIMS AT ZERO!
Covered under Patent# 7,359,795
Published and patent pending
Published and patent pending
