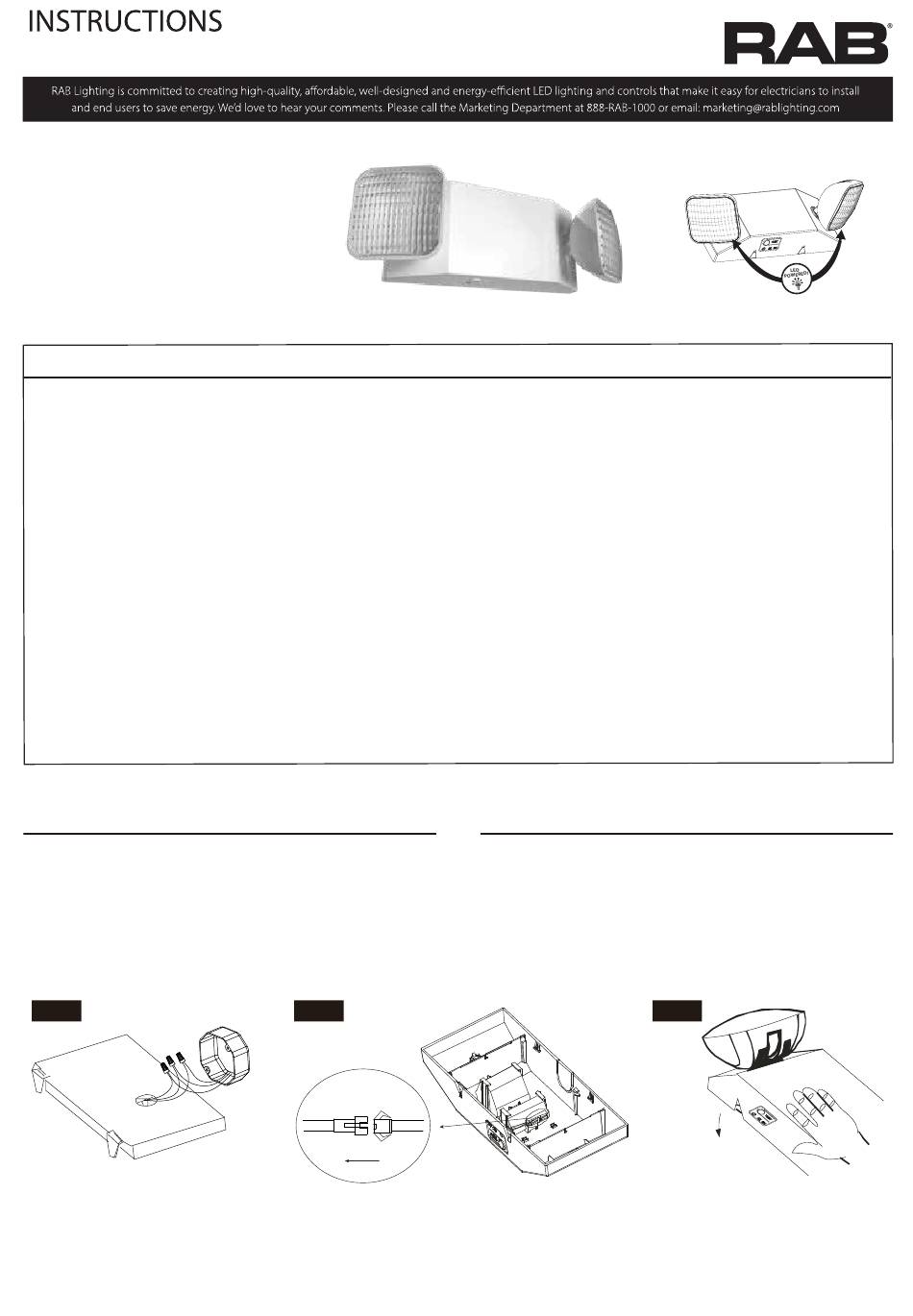

RAB EM Instructions

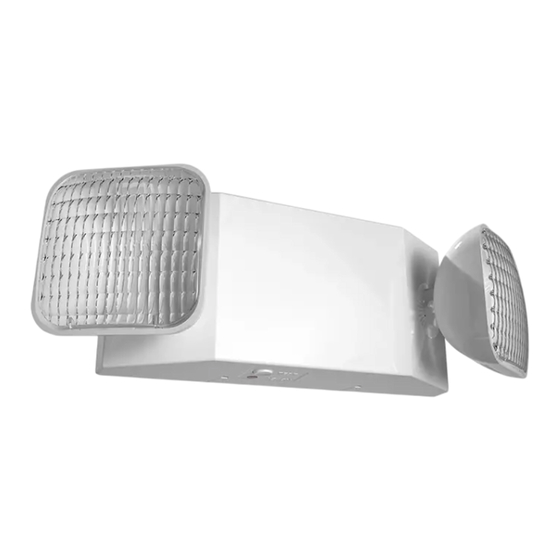

EM EMERGENCY LIGHTING
M I PORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. R TAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
IMPORTANT:
Let the battery charge up for at least 24 hours.Then normal operation of this unit should take effect. To check, press the " TEST "
button. The LED lamps on the unit should turn ON. During an electrical power failure, the led lamps will automatically come on
for a minimum of 90 minutes. In accordance with NFPA 101, your emergency lighting system must be tested monthly for a
minimum of 30 seconds and annually for 90 minutes. Refer to your local codes for any additional requirements that may apply.

IMPORTANT SAFEGUARDS:

When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Do not use outdoors.
2. Equipment should be mounted in locations and at heights where it will not be subject to tampering by unauthorized personnel.
3. Do not mount near gas or electric heaters.
4. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
5. Do not use this equipment for anything other than its intended use.
6. Servicing of this equipment should be performed by qualified personnel.
7. Disconnect AC power before servicing.

J-BOX MOUNTING INSTALLATION

1. Feed fixture leads through the back plate and connect to AC power
supply (Fig. 1). For 120V use black and white wires and for 277V, use
red and white wires.
2. Attach back plate to J-Box and secure with screws.
3. Complete the battery connection. (Fig. 2)
4. Align snaps and push housing directly onto the back plate (Fig. 3).
Apply continuous AC power and press "TEST" button to check light.
Fig: 1
J-Box
WARNING:
Unused wires must be capped using enclosed wire nuts.
EM
E
Fig: 2
BATTERY CONNECTOR
PLUG IN

CONDUIT INSTALLATION

1. Secure back plate to wall surface . Route wires through hole in
conduit flange and make conduit connection. For 120V, use black
and white wires and for 277V, use red and white wires.
2. Complete the battery connection (Fig. B).
3. Align snaps and push housing directly onto the back plate (Fig. C).
Apply continuous AC power and press "TEST" button to check light.
Fig: 3
