RAB ECOMBO34 Instructions

ECOMBO34 EXIT/EMERGENCY LIGHT
ECOMBO34
M I PORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. R TAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.

IMPORTANT SAFEGUARDS:

When using electrical equipment, basic safety precautions should always be followed including the following:
IMPORTANT:
The battery in this unit may not be fully charged. After electricity is connected to the unit for at least 24 hours, then normal operation of
turn on.
In accordance with NFPA 101, your emergency lighting system must be tested monthly for a minimum of 30 seconds and annually for 90
minutes. Refer to your local codes for any additional requirements that may apply.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Do not use outdoors.
2. Equipment should be mounted in locations and at heights where it will not be subject to tampering by unauthorized personnel.
3. Do not mount near gas or electric heaters.
4. Cap unused wires with enclosed wire nuts or other approved method.
5. Do not use this equipment for anything other than its intended use.
6. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
7. Disconnect AC power before servicing and installation.
8. Consult local building code for approved wiring and installation.
9. Use caution when servicing batteries.
11. Make sure wire terminations are secure and leads are properly tucked in appropriate wire channels.
Note: UL recommended maximum mounting height is 19.8-ft.

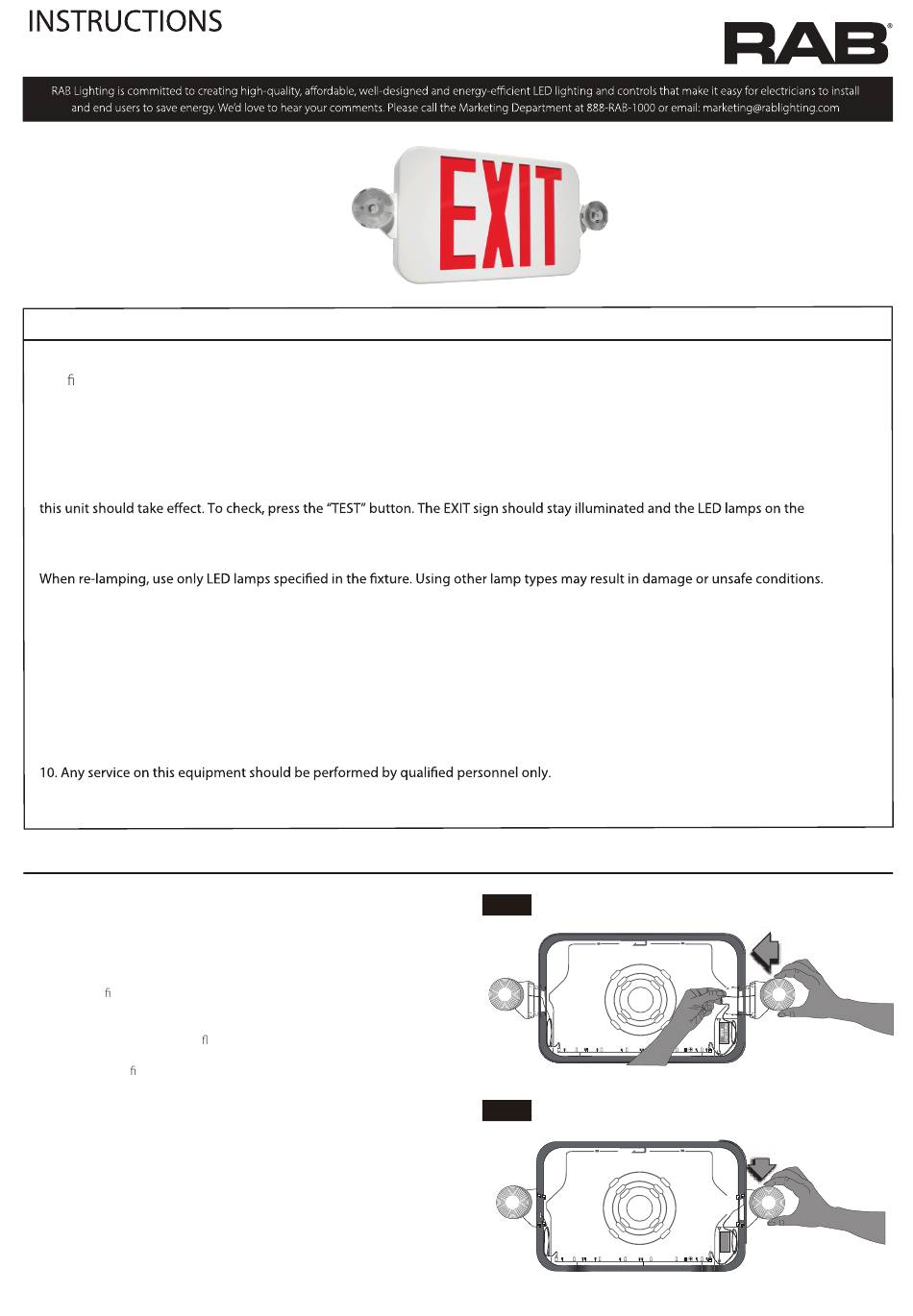

Wall Mount Installation

1. De-energize the circuit at the junction box where the exit sign is to be
installed.
2. Remove the exit sign stencil and set aside. Remove the hardware and LED
Lamp heads and set aside. Remove and discard the plastic canopy and
mounting plate.
3. Drill out the appropriate mounting pattern and the wire pass hole in the EXIT
back plate to t the junction box being used.
4. Feed the red, black and white wires through the center.
5. Remove side mounting hole plug on right side. Knockout lamp head
mounting hole on left side with athead screwdriver.
6. Feed blue and yellow lamp head wire through side lamp head mounting
hole(Fig 1). Attach rst lamp head to housing by aligning tabs on lamp
head assembly to lamp head mounting slots on frame of housing (Fig 2).
Gently push lamp head down toward bottom of housing to lock into place.
An audible click should be heard. Repeat to install remaining lamp head.
7. Feed lamp head wires in appropriate wire channel and connect lamp head leads
to the exit sign lamp board.
8. Reference wiring diagram and make proper electrical connections at the
junction box in the metal housing.
9. Fastsdden back plate to junction box cover.
10. Connect battery only after continuous AC power can be provided to the unit.
11. Remove proper Chevron(s) as required.
12. Secure face plate to housing.
E
Fig: 1
Fig: 2
unit should
Insert in Slots
Click Down
