RAB EXIT34-RG Instructions

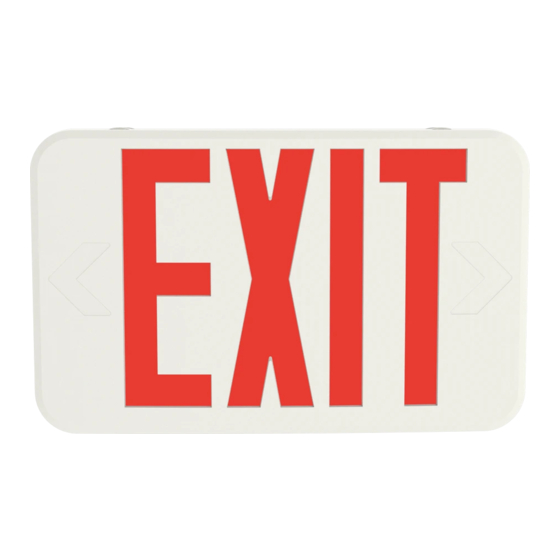

EXIT34-RG EMERGENCY EXIT SIGN
EXIT34-RG
EXIT34-RG/E
M I PORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. R TAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is
required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
• When re-lamping, only use lamps specified in the exit sign. Using other lamp types may result in damage to the unit or unsafe
conditions.
• Battery in this unit may not be fully charged. After electricity is hooked up to unit, let the battery charge for at least 24 hours.
Normal operation of this unit should then take effect.
IMPORTANT SAFEGUARDS:
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
• Do not use outdoors.
• Do not mount near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized
personnel.
• The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Do not use this equipment for other than its intended use.
• Before wiring to power supply, turn off electricity at fuse or circuit breaker.
• Consult local building code for approved wiring and installation.
• Installation and servicing should be performed by qualified personnel.

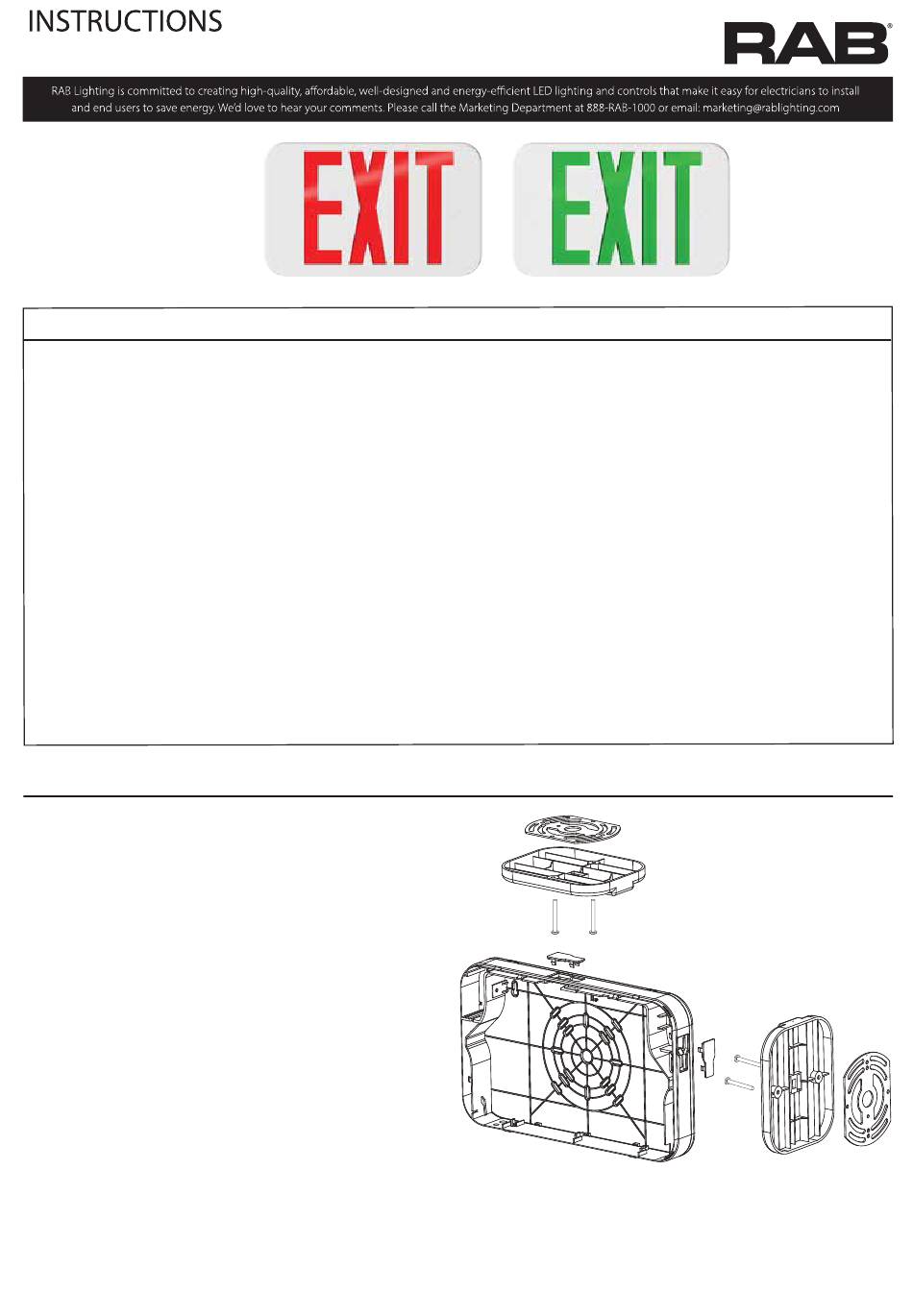

Ceiling and End Mount Installation
1. Remove EXIT stencil from housing, set aside.
2. Place screws (provided) in holes on the canopy.
3. Remove the desired mounting hole plug located on theframe of
the sign. For ceiling mount, hole plug will be located on the top
of the housing. For wall mount, hole plug will be located on the
side of the housing.
4. Place canopy tab through the mounting hole of the housing until
the flat portion of the canopy is touching the housing frame. Lock
the canopy into place by sliding the canopy, without turning,
toward smaller end of the mounting hole until the tab is fully
engaged and locked into place. Once canopy is in the locked
position there will not be any side-to-side movement of the canopy.
5. Route EXIT input wires through canopy and through metal
mounting plate.
6. Make wiring connection. For 120V, use black and white wires. And
for 277V, use red and white wires. WARNING: Properly insulate the
unused lead with a wire nut (provided) or other approved means.
7. Push wire connections into the J-Box. Secure mounting plate to
junction box (hardware not included).
8. Secure the canopy to the steel mounting plate with screws installed in step 2.
9. Remove proper chevron(s) as required. When removing chevrons it may be helpful to remove the
color diffuser panel to allow easier access to the chevrons. If removing color diffuser panel it is important to
remember to reinstall the diffuser panel, securing with diffuser retention caps once chevron(s) have been removed.
10. Connect battery only after continuous AC power can be provided to the unit.
11. Secure face plate(s) to the housing.
12. Apply continuous AC power and press"TEST" button to check operation. See operation (battery back-up) for testing procedures.
Interchangeable red or green lettering
E
HOLE PLUG-
REMOVE FOR
CEILING MOUNT
MOUNTING PLATE
CANOPY
HOLE PLUG-
REMOVE FOR
WALL MOUNT
CANOPY MOUNTING PLATE
