Activates the RF attenuator function when pushed
and held.
Reverses the SET mode display in SET mode.
PAGER/CODE SQUELCH SWITCH [PGR/CS]
(pgs. 33, 34)
Selects the function of an optional UT-55 DTMF
ENCODER/DECODER UNIT.
- Activates the pager or code squelch function.
- Selects standby for optional Mic or External DTMF
Remote when pushed and held.

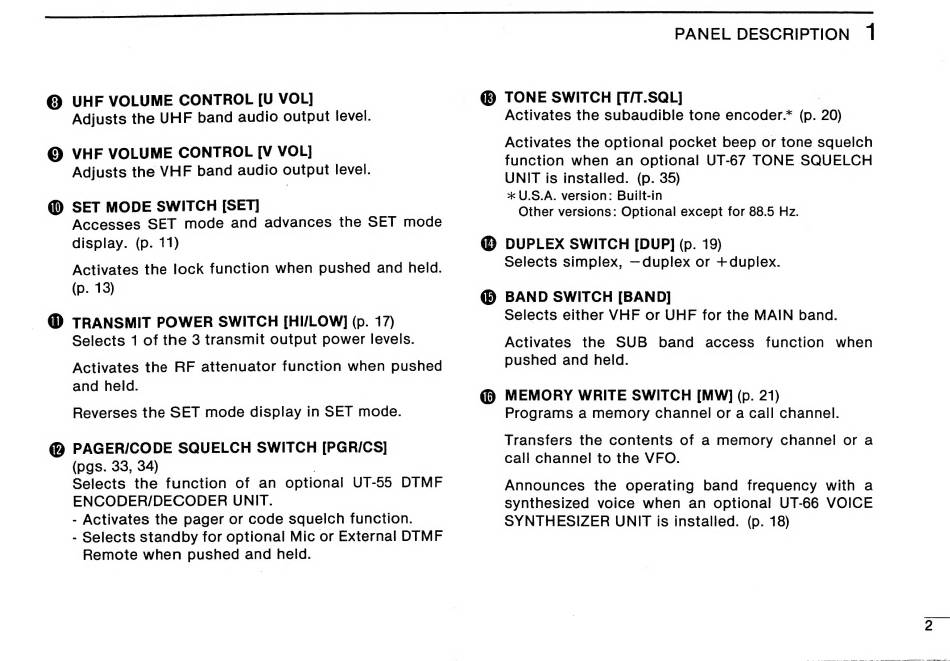

PANEL DESCRIPTION 1
(D TONE SWITCH [T/T.SQL]
Activates the subaudible tone encoder.* (p. 20)
Activates the optional pocket beep or tone squelch
function when an optional UT-67 TONE SQUELCH
UNIT is installed. (p. 35)
** U.S.A. version: Built-in
Other versions: Optional except for 88.5 Hz.
DUPLEX SWITCH [DUP] (p. 19)
Selects simplex, —duplex or -- duplex.
BAND SWITCH [BAND]
Selects either VHF or UHF for the MAIN band.
Activates the SUB band access function when
pushed and held.
MEMORY WRITE SWITCH [MW] (p. 21)
Programs a memory channel or a call channel.
Transfers the contents of a memory channel or a
call channel to the VFO.
Announces the operating band frequency with a
synthesized voice when an optional UT-66 VOICE
SYNTHESIZER UNIT is installed. (p. 18)
