1 PANEL DESCRIPTION
lll Function display
17 18 19 (20)
DUP— TSQL te
REMOTE——-@
foo L [PGRE Sat}-—@ -
® =m
BUSY PRIO ATT
a ,,- | LOW
®
@ au0maBELEENOEE Us | SK) / Z | (SUB }—@
© © ©0064

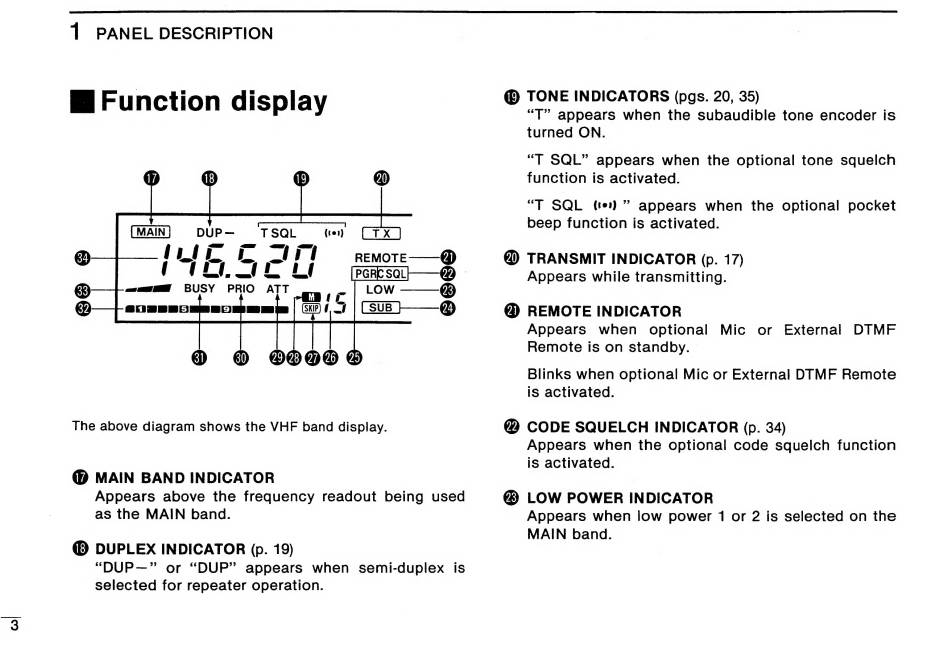

The above diagram shows the VHF band display.
@ MAIN BAND INDICATOR
Appears above the frequency readout being used
as the MAIN band.
(D DUPLEX INDICATOR (p. 19)
"DUP—" or "DUP" appears when semi-duplex is
selected for repeater operation.
(p TONE INDICATORS (pgs. 20, 35)
"T" appears when the subaudible tone encoder is
turned ON.
"T SQL" appears when the optional tone squelch
function is activated.
@ TRANSMIT INDICATOR (p. 17)
Appears while transmitting.
@ REMOTE INDICATOR
Appears when optional Mic or External DTMF
Remote is on standby.
Blinks when optional Mic or External DTMF Remote
is activated.
@ CODE SQUELCH INDICATOR (p. 34)
Appears when the optional code squelch function
is activated.
€9 LOW POWER INDICATOR
Appears when low power 1 or 2 is selected on the
MAIN band.
