Icom IC -2410A Instruction Manual page 45

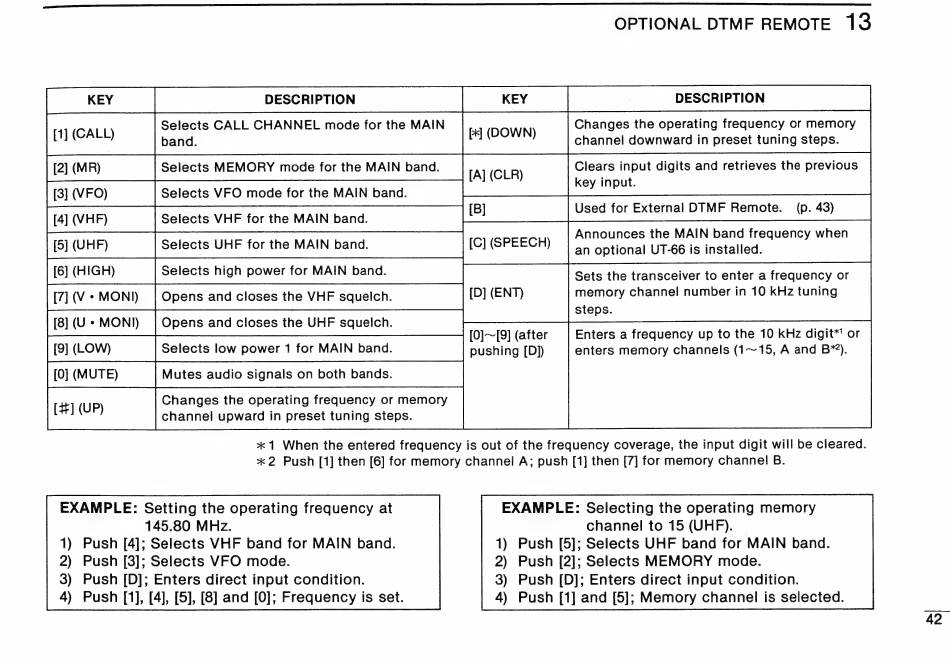

OPTIONAL DTMF REMOTE 13
KEY DESCRIPTION | DESCRIPTION
key input.
Used for External DTMF Remote. (p. 43)
Announces the MAIN band frequency when
[5] (UHF) Selects UHF for the MAIN band. [C] (SPEECH) | an optional UT-66 is installed.
[6] (HIGH) Selects high power for MAIN band. Sets the transceiver to enter a frequency or
[D] (ENT)
memory channel number in 10 kHz tuning
steps.
[0]--[9] (after
pushing [D])
Enters a frequency up to the 10 kHz digit" or
enters memory channels (1— 15, A and B").
* 1 When the entered frequency is out of the frequency coverage, the input digit will be cleared.
* 2 Push [1] then [6] for memory channel A; push [1] then [7] for memory channel B.
EXAMPLE: Setting the operating frequency at
145.80 MHz.
1) Push [4]; Selects VHF band for MAIN band.
2) Push [3]; Selects VFO mode.
3) Push [D]; Enters direct input condition.
4) Push [1], [4], [5], [8] and [0]; Frequency is set.
EXAMPLE: Selecting the operating memory
channel to 15 (UHF).
1) Push [5]; Selects UHF band for MAIN band.
2) Push [2]; Selects MEMORY mode.
3) Push [D]; Enters direct input condition.
4) Push [1] and [5]; Memory channel is selected.
