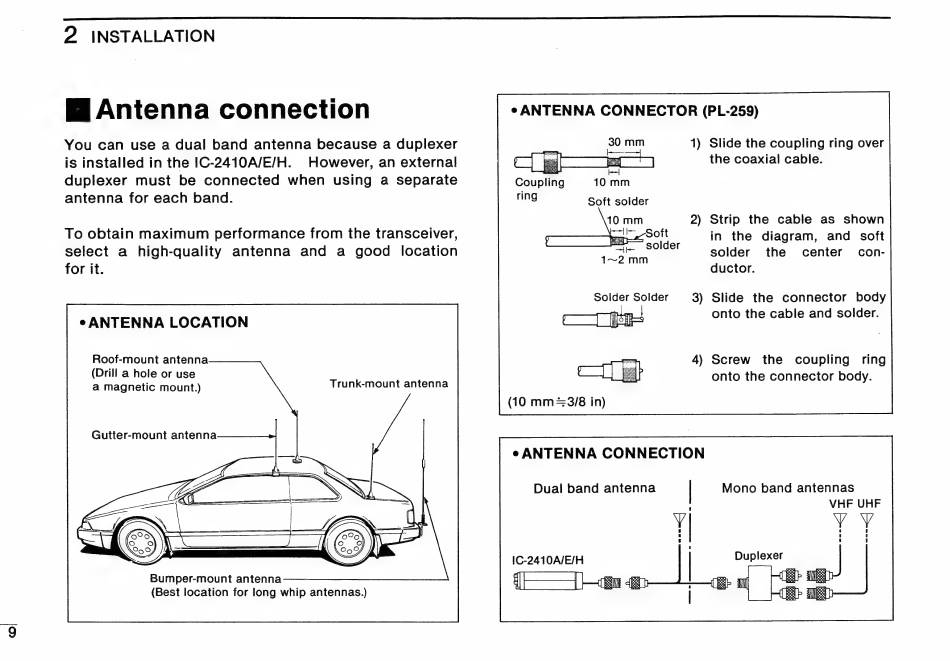

2 INSTALLATION
B Antenna connection
You can use a dual band antenna because a duplexer
is installed in the IC-2410A/E/H. However, an external
duplexer must be connected when using a separate
antenna for each band.
To obtain maximum performance from the transceiver,
select a high-quality antenna and a good location
for it.
e ANTENNA LOCATION
Roof-mount antenna
(Drill a hole or use
a magnetic mount.)
Trunk-mount antenna
Gutter-mount antenna
«« UL. ——————
P =
ee E CE (C
=
Bumper-mount antenna
(Best location for long whip antennas.)
* ANTENNA CONNECTOR (PL-259)
1) Slide the coupling ring over
T the coaxial cable.
Caurs
ring
Soft solder
10 mm 2) Strip the cable as shown
s zz a Soft i i
[— — — VB solder in the diagram, and soft
solder the center con-
1—2 pm
ductor.
Solder Solder 3) Slide the connector body
| onto the cable and solder.
4) Screw the coupling ring
onto the connector body.
Mono band antennas
VHF UHF
