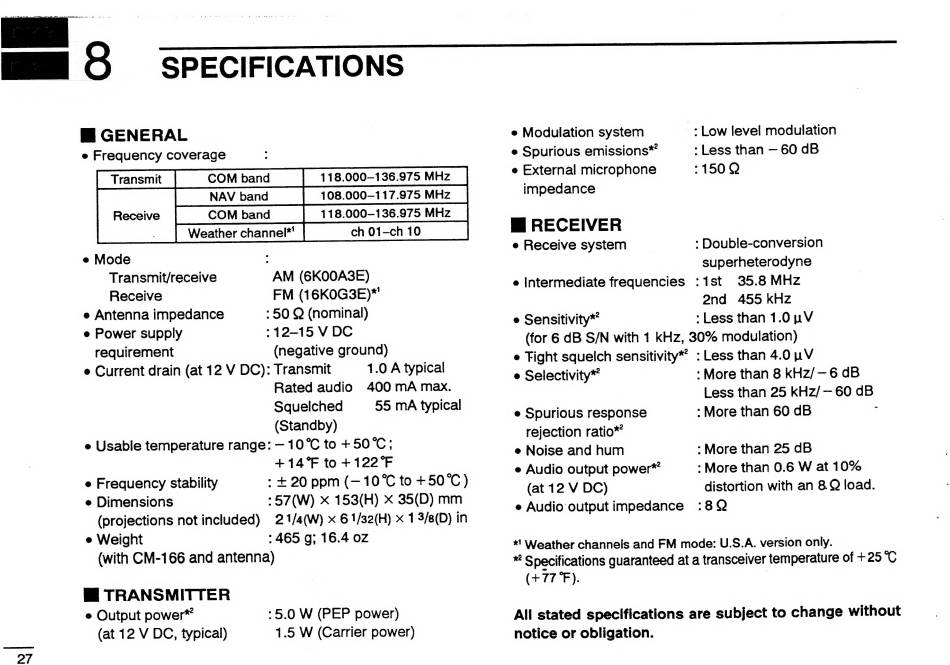

Specifications - Icom IC-A22 Instruction Manual

EN б
Ш GENERAL
e Frequency coverage
e Mode І
Transmit/receive
AM (6KOOA3E)
Receive
FM (16KOG3E)*
e Antenna impedance
: 50 Q (nominal)
e Power supply :12-15 V DC
requirement
(negative ground)
Nl TRANSMITTER
e Output power"
(at 12 V DC, typical)
: 5.0 W (PEP power)
1.5 W (Carrier power)
+ Low level modulation
: Less than — 60 dB
e Modulation system
e Spurious emissions*
e External microphone :150Q
impedance
Ш RECEIVER
e Receive system
: Double-conversion
superheterodyne
e Intermediate frequencies
:1st 35.8 MHz
2nd 455 kHz
e Audio output impedance :8Q
