B Flying To A Vor Station - Icom IC-A22 Instruction Manual

21

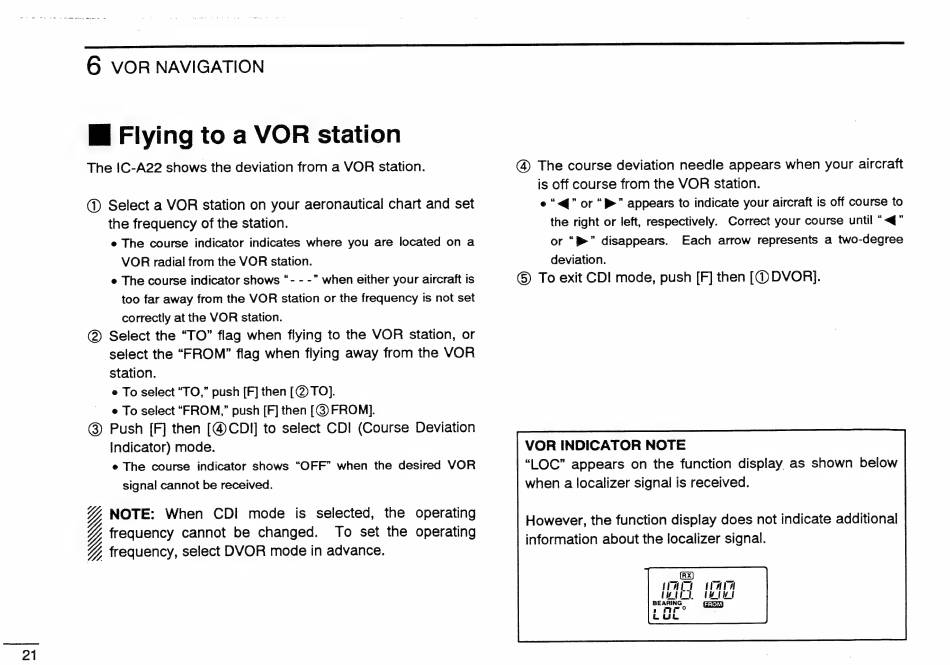

The IC-A22 shows the deviation from a VOR station.
e The course indicator indicates where you are located on a
VOR radial from the VOR station.
e The course indicator shows "- - -" when either your aircraft is
too far away from the VOR station or the frequency is not set
correctly at the VOR station.
©) Select the "TO" flag when flying to the VOR station, or
select the "FROM" flag when flying away from the VOR
station.
e To select "TO," push [F] then [@ TO].
e To select "FROM," push [F] then [@ FROM].
Push [F] then [( CDI] to select CDI (Course Deviation
Indicator) mode.
e The course indicator shows "OFF" when the desired VOR
signal cannot be received.
©
NOTE: When CDI mode is selected, the operating
frequency cannot be changed. To set the operating
equency, select DVOR mode in advance. ALLL
(4) The course deviation needle appears when your aircraft
is off course from the VOR station.
e "<4" or ">" appears to indicate your aircraft is off course to
the right or left, respectively. Correct your course until "<q"
or ">" disappears. Each arrow represents a two-degree
deviation.
(5) To exit CDI mode, push [F] then [CO DVOR].
VOR INDICATOR NOTE
"LOC" appears on the function display as shown below
when a localizer signal is received.
However, the function display does not indicate additional
information about the localizer signal.
