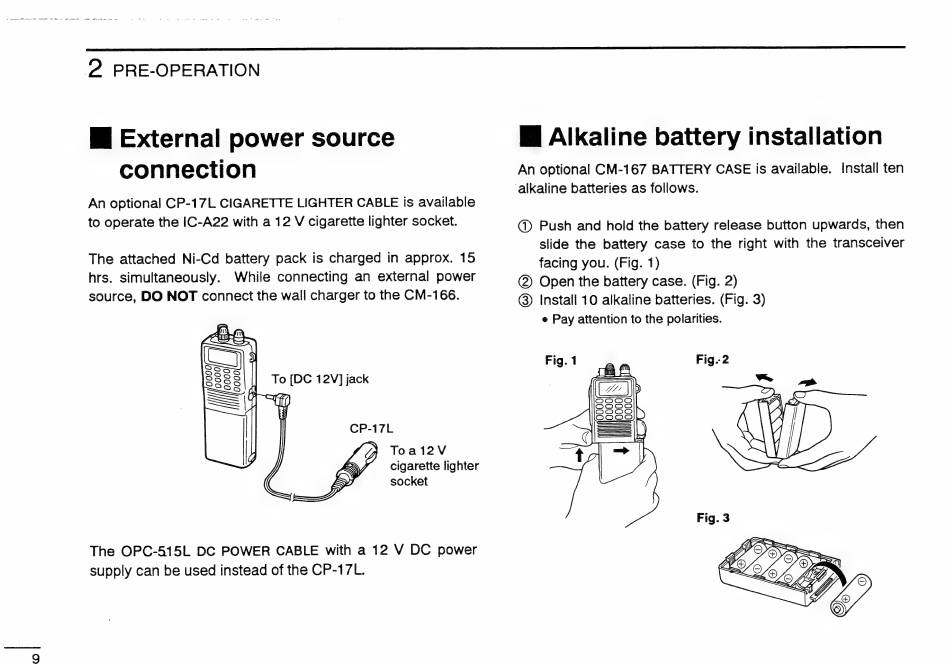

2 PRE-OPERATION
ll External power source
connection
An optional CP-17L CIGARETTE LIGHTER CABLE is available
to operate the IC-A22 with a 12 V cigarette lighter socket.
The attached Ni-Cd battery pack is charged in approx. 15
hrs. simultaneously. While connecting an external power
source, DO NOT connect the wall charger to the CM-166.
Toa12V
cigarette lighter
socket
The OPC-515L DC POWER CABLE with a 12 V DC power
supply can be used instead of the CP-17L.
An optional CM-167 BATTERY CASE is available. Install ten
alkaline batteries as follows.
@ Push and hold the battery release button upwards, then
slide the battery case to the right with the transceiver
facing you. (Fig. 1)
(2) Open the battery case. (Fig. 2)
(9 Install 10 alkaline batteries. (Fig. 3)
e Pay attention to the polarities.
Fig..2
Fig. 3
