1 PANEL DESCRIPTION

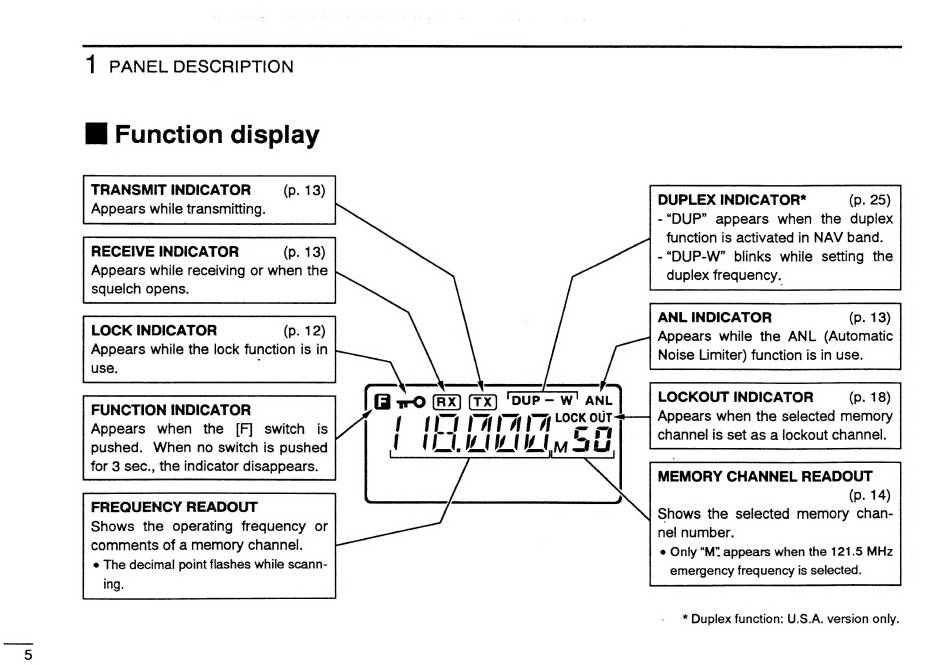

Ш Function display
TRANSMIT INDICATOR (p. 13)
Appears while transmitting.
DUPLEX INDICATOR* (p. 25)
- "DUP" appears when the duplex
function is activated in NAV band.
- "DUP-W" blinks while setting the
duplex frequency.
RECEIVE INDICATOR (p. 13)
Appears while receiving or when the
squelch opens.
ANL INDICATOR (p. 13)
Appears while the ANL (Automatic
Noise Limiter) function is in use.
LOCK INDICATOR (p. 12)
Appears while the lock function is in
use.
LOCKOUT INDICATOR (p. 18)
Appears when the selected memory
channel is set as a lockout channel.
FUNCTION INDICATOR
Appears when the [F] switch is
pushed. When no switch is pushed
for 3 sec., the indicator disappears.
MEMORY CHANNEL READOUT
(p. 14)
Shows the selected memory chan-
nel number.
e Only "М" appears when the 121.5 MHz
emergency frequency is selected.
FREQUENCY READOUT
Shows the operating frequency or
comments of a memory channel.
e The decimal point flashes while scann-
ing.
* Duplex function: U.S.A. version only.
