- Page 1 Fully Digital Conference System User Manual TS-0305/0305A Before using this system, please read this manual carefully...
- Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
- Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. ● This equipment is only suitable for safe use at altitudes under 2000 meters. Precautions 1.
-
Page 4: Table Of Contents
EB SETTING OF SIGN IN FUNCTION 4.21 W ................... - 12 - EB SETTING OF UNIT AUDIO PARAMETERS 4.22 W ................- 13 - EB BROWSING OF UNIT BASIC INFORMATION 5. TS-0305/TS-0305ADisplay Operation Instruction..............- 14 - - 3 -... - Page 5 5.1 S ............................- 14 - TARTUP 5.2 M ......................- 15 - ICROPHONE MANAGEMENT 5.3 M ........................- 16 - ENU INTERFACE 5.4 S ........................- 16 - ERVICE INTERFACE 5.5 S ........................- 17 - YSTEM SETTINGS 5.6 A ......................... - 17 - UDIO SETTINGS 5.7 I ..........................- 18 -...
-
Page 6: Product Description

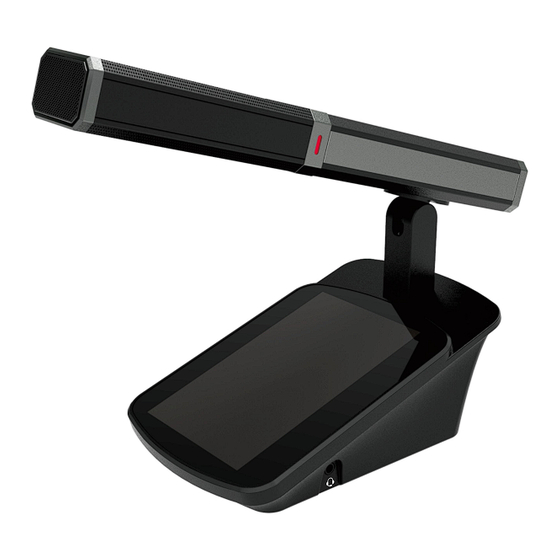

It adopts the dual-port network cable hand-in-hand connection, instead of the traditional six-pin aviation cable, which greatly facilitates the construction and wiring. 2. Product Description TS-0305/TS-0305A Third-generation dual-channel touch-screen chairman/delegate unit 2.1 Features 1. Adopt a 4.3-inch full-color touch screen. -
Page 7: Product Interface Introduction
9. Built-in independent web server, support four language switching, and adjustment of microphone ID number, microphone sensitivity, microphone EQ and other parameters. 10. Support the function of speech countdown and speech timekeeping. 11. Support the internal feedback suppression function, voice control function, and adjustable sensitivity of the voice control. -
Page 8: Specification
2.3 Specification Model TS-0305/TS-0305A Microphone type Electret condenser microphone Microphone directivity Cardioid polar pattern Frequency response 80Hz~16KHz Input impedance 1KΩ Sensitivity -33±1.5dB(0dB=1V/Pa,at1KHz) Max SPL 120dB(THD>3%) >80dB(A) Crosstalk >70dB Dynamic range >80dB <0.3% Max power consumption 3.0W Standard IEC60914 Power supply... -
Page 9: Connection Diagram
Connection Diagram - 8 -... -
Page 10: Ts-0305/Ts-0305A Operating Instruction
4. TS-0305/TS-0305A Operating Instruction 4.1 Startup (1) Startup picture: the application version number and kernel version number will be displayed on the startup picture. 4.2 Unit type (1) The chairman unit has a microphone button and a priority button, which can turn on/off the microphone, perform priority right, initiate sign-in and voting, sign-in, vote, etc. -
Page 11: Audio Settings And Headphone Output
4.8 Audio settings and headphone output TS-0305/TS-0305A has two left and right earphone channels, which can be used to listen to 63+1 channels. On the audio setting page, you can select the channel number of the left and right channels, and adjust the corresponding volume. -
Page 12: The Unit Supports The Icmp Protocol And Can Perform Ping Packet Related Operations
the IP address are fixed at 172.16; the next two bytes will be the high 8 bits and the low 8 bits of the ID number. (2) For example: if the ID number is 1, the IP address is 172.16.0.1; if the ID number is 100, the IP address is 172.16.0.100;... -
Page 13: Web Setting Of Unit Id Number
4.17 Web setting of unit ID number (1) Reset the unit ID, and the IP address of the unit will change. (2) After setting, you need to log into the web page according to the IP address bound to the new ID to conduct parameter settings. -
Page 14: Web Browsing Of Unit Basic Information
4.22 Web browsing of unit basic information (1) Version number. (2) MAC address. (3) Unit type. - 13 -... -
Page 15: Ts-0305/Ts-0305Adisplay Operation Instruction
5. TS-0305/TS-0305ADisplay Operation Instruction 5.1 Startup 1. After the microphone is powered on, the unit screen displays "System is loading...", as well as the kernel software version number and application software version number. The startup picture is as follows: 2. After the boot is completed, enter the homepage, the interface is as follows:... -
Page 16: Microphone Management
5.2 Microphone management The microphone on/off is controlled by the conference management, and its permissions are configured by the conference controller. Please refer to the conference mode description of the controller for the logic of use. Press the MIC power switch to power on/off the microphone, and the unit interface is as follows: ①... -
Page 17: Menu Interface
5.3 Menu interface Chairman menu Delegate menu 5.4 Service interface Click "Tea", "Paper and Pen", "Service personnel" to pop up the corresponding service windows, click Cancel to exit the pop-up window and return to the service interface; click OK to send the corresponding service request to the controller and return to the service interface. -
Page 18: System Settings
5.5 System settings Click to enter the system settings interface, you can view the current device type (chairman/delegate), IP address, ID number, voting permission, sign-in permission, application version number, kernel version number and other information. The slide bar below can slide to adjust the brightness of the screen. -
Page 19: Initiate Voting
5.7 Initiate voting When the voting permission is enabled, click Start voting and all microphones enter the voting mode; click Voting result to display the previous voting result. Initiate voting Chairman Delegate Voting result After the voting is completed, the voting result of this time will be updated. 5.8 Initiate sign-in When the sign-in permission is enabled, the chairman machine clicks Start sign-in and all online microphones enter the sign-in mode. -
Page 20: Language Settings
Chairman signed in successfully Delegate signed in successfully 5.9 Language settings Click Language settings to enter the language switching interface, click the corresponding language button, and it will switch to the corresponding language. It supports four languages switching between Chinese, English, Russian and French. 5.10 Regular voting initiated by the PC Select an option, and a check mark will appear behind the option, and the item you have selected will be displayed in the prompt bar above the option. -
Page 21: Five-Key Ranking Initiated By The Pc
5.11 Five-key ranking initiated by the PC Click an option, and a check mark will appear behind the option, and the item you have selected will be displayed in the prompt bar above the option. 5.12 Evaluation function The evaluation function initiated by the PC. - 20 -... -
Page 22: Sms Notification
5.13 SMS notification - 21 -... -
Page 23: Fire Alarm
5.14 Fire alarm 5.15 Native ID Click Set to modify the native ID; each time you press Set, the native ID will automatically +1. - 22 -... -
Page 24: Precautions For Use
TS-0305 unit cannot be directly connected to the computer network port, which will cause the computer to burn. The network port of the TS-0305 microphone unit does not support POE power supply, and it is forbidden to connect to a POE switch. -
Page 25: Conference Pc Software
7. Conference PC software 7.1 Software installation 1. Double click "Digital conference client", and then click “next” and “finish” as prompted. 2. Server settings Before usage, it is required to finish some necessary settings of the fully digital conference system. The main settings are as follows: ①... -
Page 26: System Operation
Step 2: double click 【 Internet protocol (TCP/IP) 】 , and enter the setting interface of the IP address. And then enter the related information of the computer IP according to the controller IP, as shown in the figure below. Step 3: modify the IP address. - Page 27 2.4 Click “Test”, if it gives a prompt that the connection failed, please check whether the entered IP is the same as the IP of the conference controller and whether the network cable is disconnected. 3. After logging in, enter “conference room layout”, click “Scan online devices”, and then click “Save”. 4.
- Page 28 5. Click “conference list” to create a conference. 6. For the created conference, you can click “Edit” to create voting and sign-in. - 27 -...
- Page 29 7. After the conference is created, click “Participant”, select the participants, and then click “simulated seating” to arrange the seats of them. Finally, click “start the conference”. - 28 -...
- Page 30 8. Click “system configuration”, and you can set the configuration of the system, such as “use the camera”. In this way can it support settings and using of video tracking. - 29 -...
- Page 31 9. Click “use the camera” in system configuration, and a camera management interface will pop up. And then select different video channels and the preset positions of the corresponding microphones. 10. As for more details about the PC software, please refer to the user manual. Log into the conference software, click the help icon in the upper right corner and then the user manual will pop up - 30 -...
- Page 32 Fully Digital Conference System - 31 - Version 0.1...
