Page 1: User Manual
Intelligently digital conference system User Manual TS-0690 Before using the system, please read this manual first... - Page 2 NOTE: This manual only as an instructions for user, not for service purposes. From the date of issue, if the function or technical parameters change later, another supply mentary instruction will be added, the details can be inquired to the manufacturers. This manual is a product manufacturer Copyright, unauthorized and any entity or individual shall not take part or all the contents as commercial purposes.
- Page 3 SAFETY OPERATIONAL GUIDANCE In order to make sure the correct operation and safety using, please comply with the following conditions when installation, operating and maintenance. 1) Make sure the connection of the ground wire is well enough when installation. Do not use two-core plug. And make sure the input voltage of power supply is as same as the one marked on the main controller.
- Page 4 1. Introduction of Digital Conference System About ITC Digital Conference System ◆ Digital conference system is another high-tech professional product after multimedia central control products and audio-video matrix products. It includes discussion units, simultaneous interpretation system, IR voice distribution, remote telephone conference, voting and camera tracking etc.
- Page 5 ◆ Supporting TS and TH series conference controller at the same time and compatible with three kinds of camera tracking controllers: TH-0580, TH-9000M and TS-0690. ◆ The tracking controller has a function of screen freeze, and the period of screen freeze could be set by the software.

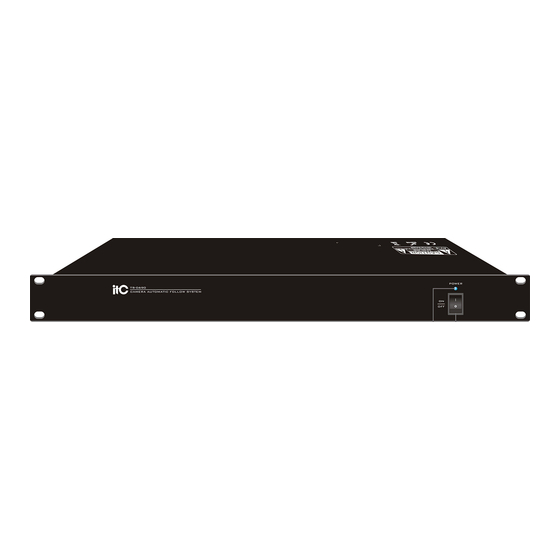

- Page 6 3. TS-0690 Auto Video Tracking Controller Functions 1) Power—Power indicator. 2) Power switch. 1) Power input, supporting AC 100-240V input. 2) To the ground. 3) VIDEO INPUTS—connecting 6 camera video signal input. 4) VIDEO OUTPUTS—output RCA, BNC, VGA3 camera video signal.
- Page 7 4. Technical Specifications Model Auto Video Tracking Controller Technical specifications Video Gain 0 dB 150MHz (-3dB),full-loading Video Bandwidth 0 -10MHz:≤+/- 0.1dB 0 -30MHz:≤+/- 0.5dB multi-channel to single channel -50dB @ 5 MHz, -45dB @ 10 MHz cross talk <1.28 degree，3.58MHz Differential phase I/OS Differential phase error 0.1%, 3.58-4.43MHz...
- Page 8 Model Auto Video Tracking Controller Technical specifications serial control interface 9-pin female type D RS-232 interface Baud rate and protocol Baud rate: 9600, data bit: 8 bits, stop bit: 1, without parity check bit specifications power supply AC100-240V 50～60Hz(power switching) temperature of storage and operating:-20°～...
- Page 9 5.4 Getting the information of code switching 1) Turning the code switching on the rear panel of the unit, re-up electricity of the unit, click "achieve" on the PC software to get the code switching protocol of the camera tracking controller, Baud rate and the type of camera. Checking whether the protocol, Baud rate and camera type are as same as the real setting of the camera connection.
- Page 10 5.7 The invoking, delete and setting of camera presetting Choosing the camera protocol, input camera address and presetting position to control the unit. 5.8 Setting the presetting position of the unit 1) Choosing the right protocol, camera address, presetting position, unit address, adjusting the camera position via the up and down keys to the right unit, then click "Setting"...
- Page 11 5.8.2. Baud rate testing You could control the camera well by changing the Baud rate on the PC. 5.8.3 Controlling the cameras with different addresses You could test several cameras together by changing the physical address of the camera and then by controlling its moving in PC software. 5.8.4 The effect of system linking Connecting one conference main controller, several conference discussion units and the PC, then open the PC software to set the ID number and the presetting...
- Page 12 6 Attachment 1) Setting the adjustable ID number, after setting one unit, ID number will add one automatically to make the presetting bits conveniently. 2) Open the software to read the real data of the machine. You could also read the output Baud rate, model name selection and the DPI of the camera.
- Page 13 Setting the screen freeze period: Setting the screen freeze period: Setting the DPI Setting the DPI: 800*600 00 01 FF 10 00 fd 00 01 0E Setting the DPI: 1024*768 00 01 FF 10 00 fd 00 02 0F Setting the DPI: 1024*768 00 01 FF 10 00 fd 00 03 10 The three Pelcd_D...
- Page 14 2. In both main conference controllers of TS serials and TH series, if the desk-top camera is by Pelcd_D protocol, the presetting bits should be set from 1 to 128 and the panoramic bit should be set at number 127 D number of ID number Presetting...
- Page 15 4. In both main conference controllers of TS serials and TH series, if the ceiling mount camera is by Pelcd_D protocol, the presetting bits should be set from 1 to 61 and it is adjustable. D number of ID number Presetting Function Directive...
