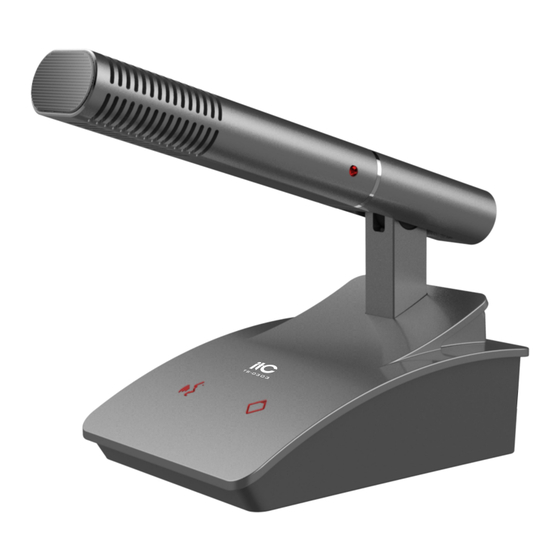

- Page 1 Fully Digital Conference System User Manual TS-0303/0303A Before using this system, please read this manual carefully...
- Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
- Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. ● This equipment is only suitable for safe use at altitudes under 2000 meters. Precautions 1.
- Page 4 5. Agreement Please strictly follow the instructions in this manual. The software, hardware and appearance of this product will be upgraded and updated continually. The above changes will be made without notice. Non-professional maintenance personnel, do not remove the product, to avoid damage and electric shock.
-
Page 5: Table Of Contents
2.3 S ............................8 PECIFICATIONS 3. System connection diagrams........................9 3.1 C 1........................9 ONNECTION DIAGRAM 3.2 C 2........................9 ONNECTION DIAGRAM 4、TS-0303/TS-0303A operation instructions..................10 4.1. D ..................10 IGITAL ANALOG DUAL BACKUP FUNCTION 4.2. U ............................10 NIT TYPE 4.3. C ......................10 ONFERENCE MANAGEMENT 4.4. -
Page 6: Descriptions
1. Descriptions The system adopts ITC original network communication and digital transmission processing technology, which are completely independent intellectual property rights of our company. The application of these two technologies to conference system has made a new breakthrough in the whole field. -
Page 7: Function Introduction
Long- distance transmission will not have any impact on the sound quality. 8. Support PC software microphone control and voice control function. 9. The chairman unit has the priority to close the speaking of the delegate unit. 10. Support the adjustment of microphone ID number, microphone sensitivity, microphone EQ and other parameters. -
Page 8: Specifications
2.3 Specifications Model TS-0303/TS-0303A Microphone type Gold-plated capacitive dual-tone head Microphone directionality Cardioid Frequency response 80Hz~16KHz Microphone input impedance 1KΩ Sensitivity -38 dBV/Pa 120dB (THD>3%) Maximum SPL >80dB(A) Crosstalk >70dB Dynamic Range >80dB <0.1% 2.5W Maximum power consumption Standard IEC60914... -
Page 9: System Connection Diagrams
3. System connection diagrams onnection diagram 1 3.1 C Remarks: Similar to hand in hand conference unit, no backup. onnection diagram 2 3.2 C Remarks: TS-W100 controller+ 02 series microphones+ TS-0303 digital-analog dual backup system. -
Page 10: 4、Ts-0303/Ts-0303A Operation Instructions
4、TS-0303/TS-0303A operation instructions 4.1. Digital-analog dual backup function Analog backup link: connect the mixer to output audio through a three-core XLR; They can be used independently from the conference controller, but only have a switch microphone function at this time; the indicator light is blue when the switch is on. -
Page 11: Fire Alarm
4.5. Fire alarm When the controller sends a fire alarm message, the red light on the microphone rod will flash until the controller cancels the alarm. If it is canceled, the unit returns to the state before the alarm. 4.6. Timed speech and speech timing This function needs to be controlled by the conference PC software. -
Page 12: Set Unit Id Number On Web
Chinese and English language switching on the web side. 4.14. Set sign-in, voting function on web page This function is required to be set in non-sign-in mode and non-voting mode. Generally, it is set before the meeting. (TS-0303 has no voting function and is reserved). -
Page 13: Set Unit Audio Parameters On Web Page
4.15. Set unit audio parameters on web page On this page, you can set the microphone speaker volume (TS-0303 without speakers, reserved function), microphone sensitivity, microphone EQ and others. -
Page 14: View Unit Basic Information On Web Page
4.16. View unit basic information on web page On this page, you can view basic information such as version number / MAC address / unit type. - Page 15 Fully Digital Conference System VersionV0.1...
