- Page 1 Intelligent digital conference system User Manual TS-0622 TS-0622A Please Read This Manual Before Operation...
- Page 2 NOTE: This manual only as an instructions for user, not for service purposes. From the date of issue, if the function or technical parameters change later, another supply mentary instruction will be added, the details can be inquired to the manufacturers. This manual is a product manufacturer Copyright, unauthorized and any entity or individual shall not take part or all the contents as commercial purposes.
- Page 3 SAFETY OPERATIONAL GUIDANCE In order to make sure the correct operation and safety using, please comply with the following guidance during installation, operating and maintenance. 1) Make sure the connection of the ground wire is well enough when installation. Do not use two-core plug.
- Page 4 1. Intelligent digital conference system Description About the ITC intelligent digital conference system ◆ Intelligent digital conference system is another high-tech professional product series followed with the Multimedia control products and audio and video matrix product, which including discussion, simultaneous interpretation, the infrared voice distribution, remote telephone meeting, voting and camera tracking system.
- Page 5 2. Features ◆ with discussion. Voting and sign-in function. ◆ Using special 8 pins high-density aviation connector. ◆ Heart-shaped directivity capacitive sound with double color lamp and turn red for speech. ◆ 2m connector cables. ◆ with the knob type plug rod. ◆...

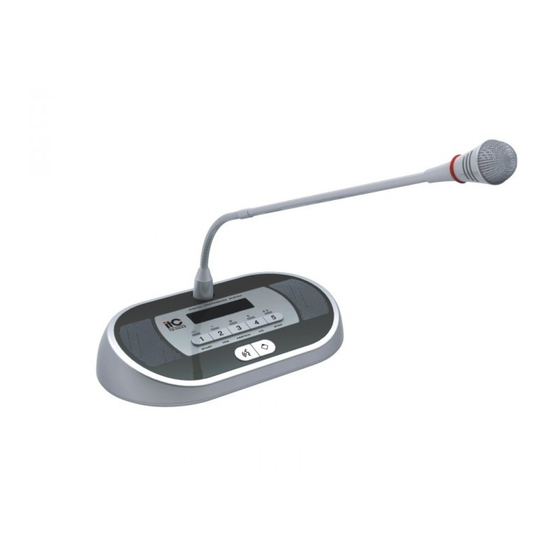

- Page 6 3. Product functions introduction TS-0622 TS-0622A ① Load speaker ② MIC connector Unit 8 pins air interface foot function description：...
- Page 7 Shut off function-long-press chairman unit microphone open key for 3 seconds, the speech unit. Would all be closed ⑥ Microphone priority button. Chairman unit (TS-0622) unique priority, press this button at any time to cancel permission to speak is to speak on behalf of all units, and open the MIC unit of the President.
-
Page 8: System Connection Diagram
Sign-in to the interface. Then press F2 key and move to bottom left to view the shortcut menu, and select Sign-in item. The ON/OFF indicator on TS-0622/ TS-0622A will begin to flash. When pressing ON/OFF button on the mic, the indicator will be on. - Page 9 After inputting background music by the conference controller, you could hear music from the speaker built-in TS-0622/TS-0622A when the mic is not used. But once the mic is used, the speaker will stop playing music. If connect the headphone or record interface, the speaker will...
- Page 10 Picture 1 Picture 2 Picture 3 Picture 4...
-
Page 11: Specification
5. Specification Model TS-0622 TS-0622A Power supply DC24V(powered by controller) Unit connector 8 pins particular connector Power consumption Earphone output 9dBu, 8-32Ω, 3.5mmMiniature socket Speaker power ≤2W Speaker type high directivity Electret Directivity Cardioid type S/N Ratio > 80dB Crosstalk attenuation >...
