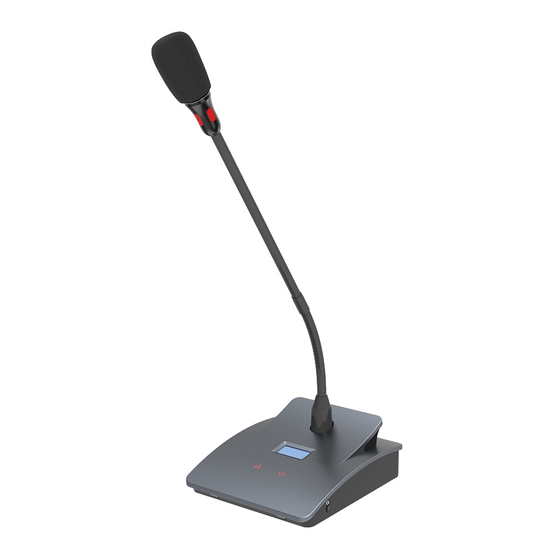

- Page 1 Wifi Digital Conference System User Manual TS-W302/W302A Before using this system, please read this manual carefully...
- Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
- Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. ● This equipment is only suitable for safe use at altitudes under 2000 meters. Precautions 1.
- Page 4 5. Agreement Please strictly follow the instructions in this manual. The software, hardware and appearance of this product will be upgraded and updated continually. The above changes will be made without notice. Non-professional maintenance personnel, do not remove the product, to avoid damage and electric shock.
-
Page 5: Table Of Contents
CONTENT 1. System introduction........................- 5 - 2. Product introduction........................- 5 - ............................- 5 - EATURE .......................- 6 - RODUCT FUNCTION INTRODUCTION ............................ - 7 - PECIFICATION 3. System connection diagram......................- 8 - 4. Instruction............................- 9 - 4.1. B ............................ -
Page 6: System Introduction
1. System introduction The wireless all-digital conference system adopts ITC’s original network communication and digital transmission processing technology with completely independent intellectual property rights. The digital technology and network technology are applied to the conference system products. The perfect combination of wireless wifi and wired all-digital makes new breakthrough in the conference field. -
Page 7: Product Function Introduction
13. Built-in lithium battery, battery capacity supports 15 hours of continuous speech. 14. Built-in antenna to greatly improves WIFI network transmission efficiency. 15. Support TYPE-C port for upgrade program and online charging. Product function introduction TS-W302 Chairman controller: TS-W302A Delegate controller: 1.0.96 inch OLED screen; 2. Power switch button;... -
Page 8: Specification
Specification Model TS-W302/TS-W302A Microphone type Cardioid directional electret Frequency response 80Hz~16KHz Microphone input impedance 1 k Ω Sensitivity -46dBV/Pa Maximum SPL 100dB(THD>3%) >80dB(A) Crosstalk >70dB Dynamic range >80dB < 0.1% Maximum power consumption Standard IEC60914 Power supply 18650 lithium battery... -
Page 9: System Connection Diagram
3. System connection diagram - 8 -... -
Page 10: Instruction
4. Instruction 4.1. Boot Turn on the power of the controller to start the conference system, and the controller will display on the screen"System Loading...", The page is as follows: The approximate connection time is 5 seconds, and the touch screen will display the WIFI wireless conference system after the boot is complete. -
Page 11: Fire Alarm
If the current controller is to be turned on, the microphone light turns green and the display shows as follows: If the delegate controller is in the application mode, the microphone light turns green, and the screen displays as follows: ※... -
Page 12: System Status Page
4.4. System status page In the boot state and in the conference mode, short press the power button to query the SSID and the version number of the device connected to the AP. The page is as follows: 4.5. Wireless AP drop detection function Turn off the wireless AP power or the AP network cable fails for about 10 seconds, the controller interface will pop up the following dialog box. -
Page 13: Wifi Ssid And Password Modification
4.7. WIFI SSID and password modification In the boot state, the USB port of the wireless controller is connected to the PC. Then use the SSID to modify the software. After the modification is successful, the wireless controller will prompt the following interface, and it will automatically shut down after 2 seconds. -
Page 14: Charge, Battery Level And Wifi Signal Strength Indication
4.10. Charge, battery level and WIFI signal strength indication WIFI signal strength, a total of 4 white bars, no signal means no icon: There are 4 bars in full charge, the icon is: The icon of the charging plug is: 4.11. -
Page 15: Sign-In Mode Display
When PC software sets speech countdown： 4.14. Sign-in mode display When the PC enters the sign-in mode, or the wired chairman controller initiates the sign-in, the controller enters the sign-in mode. In this mode, the mic light of the controller that has not checked in will flash, and the following figure shows that the mic button becomes the check-in function. -
Page 16: Low Signal Prompt
4.16. Low signal prompt When the signal of the controller is low, it cannot be used normally, but it is not connected with AP When disconnecting, there will be the following prompt. When the signal reaches the normal value, the controller usage returns to normal. 4.17. -
Page 17: Conference Pc Software Introduction
System management includes sub-modules: user management, controller configuration, etc. Due to the limited space of this manual, the specific operating instructions of the conference system software will not be introduced in detail here. For details, please refer to the "ITC Full Digital Conference System Software User Manual". -
Page 18: Appendix
※Appendix： Microphone frequency response curve Microphone cardioid directivity curve - 17 -... - Page 19 Wifi Digital Conference System V0.1 - 18 - Version 0.1...
