- Page 1 Fully Digital Congress System User Manual TS-0203 TS-0203A Before using this system, please read this manual carefully...
- Page 2 User Manual Fully Digital Congress System Notice: This manual is only used as the operation instructions of users, not for the maintenance service. After issuing, if any changes of functions or related data, will offer additional explanation, please ask the supplier for more details. This manual belongs to its manufacturer’s copyright, without permission, any agent or person cannot take parts of manual or all contents as a business purpose.
- Page 3 User Manual Fully Digital Congress System Important Explanation Warming In order to make sure the reliable operation and the users’ safety, please comply with the followed matters when installing, using and maintaining. ● If appear any abnormal situations as below, please turn off the power supply immediately, pull out and contact with your nearby dealer promptly.
-
Page 4: Table Of Contents
User Manual Fully Digital Congress System CONTENTS Contents...............................4 1. System introduction..........................5 1.1 System Description........................5 1.2 System connection diagram...................... 5 2. Product Description..........................6 2.1 Function Features........................6 2.2 Each part function introduction ....................7 2.3 Main technical parameters......................7 3. Operating instructions ......................... 8 3.1 Power on............................ -
Page 5: System Introduction
1. System Introduction 1.1 System Description Full digital conference system adopts the ITC original with completely independent intellectual property rights of network communication and digital transmission processing technology, digital technology and network technology was applied to conference system products, so it have a new breakthrough changed in the conference field. -

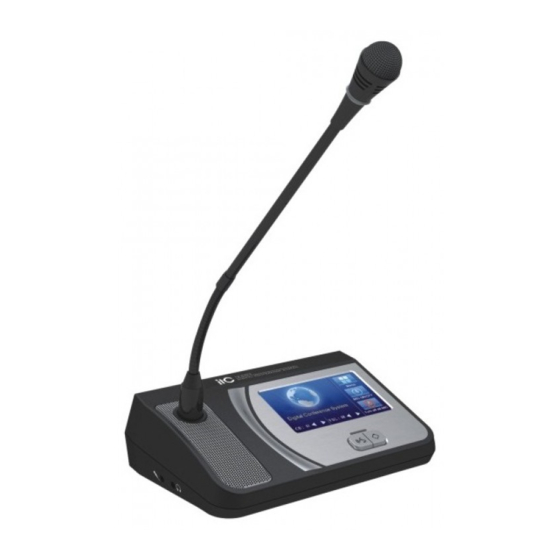

Page 6: Product Description
Fully Digital Congress System 2. Product Description TS-0203 is chairman unit, TS-0203A is delegate unit, it has the function of discussion, vote, IC card attendance, video tracking. Delicate and elegant desktop type, very modernize design. Have a key, a vote and IC card inserted into the interface, 4.3 inch TFT true color touch screen, the... - Page 7 ⑤ Microphone on behalf of unit key. ⑥ 4.3 inch touch screen. ⑦ chairman unit microphone on the key. ⑧ chairman unit microphone priority button. Specifications Model TS-0203/TS-0203A Microphone Types Heart-shaped directivity electret Microphone Frequency Response 80Hz~16KHz Input Impedance 1KΩ...
-
Page 8: Power On
Size(L*W*H) 218X135X63mm Installation Desktop 3. TS-0203/0203A Operation Manual 3.1 Booting Power on the host system to start the meeting, unit machine screen display "System Loading ...", the start up page as follows. After completion of the boot LOGO interface touch screen display, if the machine is not normal, you can not automatically switch to LOGO interface. -
Page 9: Unit Type
User Manual Fully Digital Congress System Chairman unit Delegate unit 3.2 Unit Type Chairman unit has a microphone key and priority key, touch screen, turn off all delegate microphones, english switch, channel switch, volume control, brightness adjustment, tea application initiating attendance and voting, attendance and voting response operations. Representative unit has microphone key, but without priority key, you can switch the microphone on the touch screen, in English and switching, channel switch, volume control, brightness adjustment, tea apply, attendance and voting response operations. -
Page 10: Sign In
User Manual Fully Digital Congress System In NORMAL mode, exceed the number of delegate units will go into a wait state. By pressing the priority button of Chairman of the machine , turn off the microphone for all delegate and chairman unit open the mic. Representative unit is shown below: 3.4 Sign in Going into the menu page of Chairman unit, press the "launch sign"... -
Page 11: Vote
User Manual Fully Digital Congress System 3.5 Vote Enter the chairman unit menu page, press the launch vote button to enter the vote menu page, then you can choose to view the results of the last vote. Press the Start button to vote to initiate the hardware three key vote. -
Page 12: Channel Selection
User Manual Fully Digital Congress System 3.6 Channel selection Chairman unit and delegate unit on the page icon LOGO channel switching current audio listening, you can choose to listen to different sound channels manually (with power-down save function), where 0 is the original sound output channel, and the remaining 15 for translators machine output channels. -
Page 13: Audio Adjustment
User Manual Fully Digital Congress System will display the countdown time remaining presentation, the time to automatically shut down after phone, timing speech only for the delegate unit effectively, the chairman of the unit is invalid; when speech timekeeping, PC specify the unit to speech timekeeping unit time accounting has spoken. 3.10 Audio Adjustment This function requires a PC software control to switch from the meeting, please refer to PC user manual in details.. -
Page 14: Screen Brightness Adjustment
User Manual Fully Digital Congress System Chairman unit Delegate unit 3.14 Screen brightness adjustment Chairman unit enter the menu page, click on "Brightness Adjustment" button to adjust the screen brightness chairman unit, the screen brightness adjustment range of chairman unit is: 0 to 64; brightness adjustment delegate directly unit icons in the lower right corner of the page LOGO chairman unit brightness adjustment delegate 3.15 volume adjustment function... - Page 15 User Manual Fully Digital Congress System Full Digital Congress System VersionV0.2...
