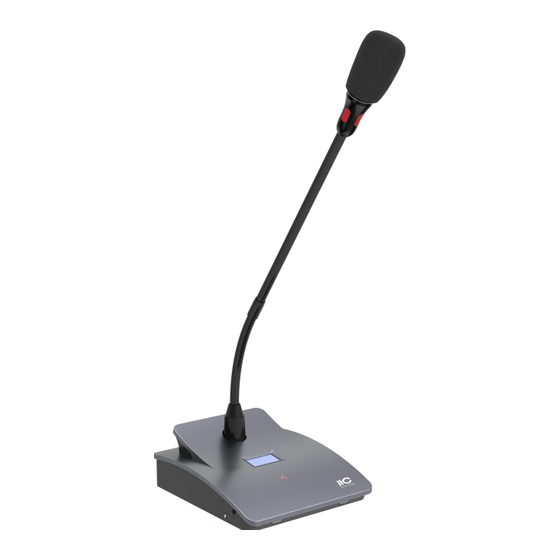

- Page 1 Digital Wi-Fi Conference System User Manual TS-W102/W102A Before using this system, please read this manual carefully...
- Page 2 Notification WARNING To ensure the reliability of the equipment and the safety of personnel, please observe the following when installing, using and maintaining: ● If any of the following conditions are found, please immediately turn off the power, plug out and quickly contact your nearest dealer.
- Page 3 ● This product uses a power plug or appliance input socket as a disconnecting device with the power supply, and must be disconnected if necessary for safety reasons. ● This equipment is only suitable for safe use at altitudes above 2000 meters. Precautions 1.
- Page 4 6. Remarks When TS-W102/102A are not used in a long time, please take out of the machine and charge full of electricity to avoid battery damage if store more than six months.
-
Page 5: Table Of Contents
CATALOG CATALOG..............................5 1. System Introduction..........................6 2. Product Introduction..........................6 ..........................6 UNCTION EATURES ....................7 RODUCT PARTS FUNCTION INTRODUCTION ..........................8 ECHNICAL PARAMETER 3. System connection diagram........................9 4. Operation instruction..........................9 ............................. 10 OWER ON 2. M ........................10 EETING ANAGEMENT 3. -
Page 6: System Introduction
1. System Introduction WIFI Digital Conference System adopts ITC proprietary network communication and digital transmitting procession technology, which is applied with digital technology and network technology. The perfect match of WIFI conference system and Wired Digital Conference System brings breakthrough change to the conference industry. -
Page 7: Product Parts Function Introduction
With simple Type-C to set up SSID and password function to ensure system extension without any connection error. It is with speech timing and clocking functions. With voice control function that it can be turned on intelligently. You can also adjust voice control sensitivity and set up on/off time by PC software. -
Page 8: Technical Parameter
Technical parameter Model Name TS-W102/TS-W102A Microphone Type Cardiotype directivity electret Frequency range 80Hz~16KHz Microphone input impedance 1KΩ Sensitivity -46 dBV/Pa Max SPL 100dB(THD>3%) Signal to Noise Ratio >80dB(A) Crosstalk >70dB Dynamic Range >80dB <0.1% Max Power Consumption Standards IEC60914 Power Supply... -
Page 9: System Connection Diagram
3. System connection diagram... -
Page 10: Operation Instruction
4. Operation instruction 1.Power on When powered on, delegate unit will display “System Loading”. System connecting time is about 5 seconds. “WIFI Conference System” will be displayed after powered on. 2.Meeting Management The switch of all delegate units are controlled by the meeting management, including first in first out, apply, normal and voice control modes. -
Page 11: Fire Alarm
If the current mic is in apply mode, the mic lamp is green. Attention: If you want to realize the approval function on the chairman unit, please add TS-W101 to make it. If the current mic qty is full, the display will show “Mic qty is full”. Press priority button on the chairman unit to close all delegate units, while the chairman unit lamp is red and delegate unit lamps is off. -
Page 12: Wifi Ap Off-Line Detection Function
5.WIFI AP Off-Line Detection Function When AP power supply is turned off or AP network fault more than 10 seconds, dialog box will be prompt on the delegate unit display. If WIFI AP is working normally, delegate unit display will recover to home page. -
Page 13: Repeated Id Detection
Operating steps of revising SSID: 1.Use USB cable to connect the delegate unit and PC when powered on. 2.Press “Search” till “Done button” turned to optional status, which means the connection is in normal status. 3.Input SSID and KEY. (Take SSID default as WIFI_System; take KEY default as itc_sy4b.) 4.Press “DONE”... -
Page 14: Automatically Power Off While Low Battery
11. Automatically power off while low battery. When the power is too low, WIFI delegate unit will remind with “Low Battery” and then shut off. 12. ON/OFF Switch Function Short press button when powered off to turn on the machine. Long press button for 3 seconds when powered on to turn off the machine. -
Page 15: Voting Mode Display
will automatically short off apply status that could not enter apply status. 15. Voting mode display When the PC enter voting mode or chairman unit launches voting order, all delegate units will enter voting mode. Under voting mode, there is no responding button so the unit could not be voting as below image. -
Page 16: Language Setting
18.Language setting You can change the language to Chinese or English via PC software. -
Page 17: Conference Pc Software Instruction
System management includes the sub-modules: user management, host configuration. Due to the limited space in this manual, the specific operation of the digital conference system software instructions here is not mentioned in details, please refer to "ITC Digital Conference System Software User Manual”. - Page 18 Digital Wi-Fi Conference System VersionV0.2...
