Summary of Contents for ITC TS-0605M
- Page 1 Simple Intelligent Conference System User Manual TS-0605M Before using the system, please read this manual first...
- Page 2 NOTE This manual only as an instructions for user, not for service purposes. From the date of issue, if the function or technical parameters change later, another supply mentary instruction will be added, the details can be inquired to the manufacturers. This manual is a product manufacturer copyright, unauthorized and any entity or individual shall not take part or all the contents as commercial purposes.
- Page 3 SAFETY OPERATIONAL GUIDANCE In order to make sure the correct operation and safety using, please comply with the following conditions when installation, operating and maintenance. 1) Make sure the connection of the ground wire is well enough when installation. Do not use two-core plug. And make sure the input voltage of power supply is as same as the one marked on the main controller.
- Page 4 1. Simple Intelligent Conference System overview About ITC Simple Intelligent Conference System Simple Intelligent Conference Host, Using the ITC second generation r&d high-fidelity sound source circuit design,First realize MP3 recording function conference host, Meeting with a variety of mode selection (select the number of speakers, speech mode selection), Easy to use, stable performance, with other conferencing systems work incomparable superiority.
-
Page 5: Function Characteristics

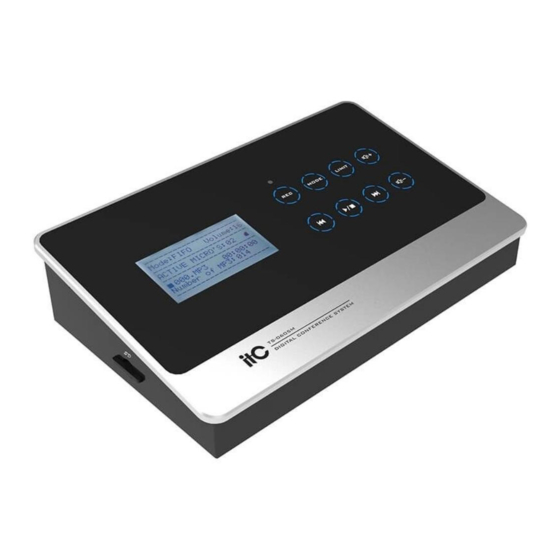

2. Function characteristics Built-in recording function and SD interface With auto setting ID function, easy for operation Adopt digital equalization module and noise reduction processing module for audio processing, to ensure clear and good sound quality. With 1 channel audio input and 1 channel audio output. - Page 6 3. DSC controlled system Description of Product TS-0605M Conference master controller 3.1 Front Panel 1. LCD display screen. 2. Recording button(Touch type) and indicator lights. 3. Mode switch button (Touch type). 4. Phone number switch button (Touch type). 5. Volume+Key (Touch type).
- Page 7 3.2 Back Panel 10. Power switch. 11. 24V/4A Power adapter socket. 12. Conference unit interface is to supply power and communication to conference unit, two way interface, can only connect total 30 units (15 for each way). NOTICE Unit 8 core air connector foot function description 8 P in M A L E 4 85A/ 1 485 B/ 8...
- Page 8 4. Operating Instructions 1) Turn on conference host When turn on conference host,it will show the current meeting mode,microphone number, volume, SD card, if you insert the SD card correctly, it will also show mp3 files. There is three display area from top to bottom in screen, each display area is separated by "-- -- -- "...
- Page 9 - 0603 and TS - 0603A) could open the microphone by voice. When the turn on number of delegate unit reach N,if you turn on more other delegate unit, it will enter waiting mode, the MAX number of waiting unit is N. If you open the microphone of waiting unit,it will exit the waiting state.
- Page 10 (1) Correctly insert SD card, the meeting host display will show the card icon and display "Initializing SD CARD" ,which represents the SD card are in the initialization, during this time the key is no valid, the SD card cannot be removed, otherwise It may cause damage to the SD card and system error.
-
Page 11: Specifications
SD card audio level is not subject to this volume control. 11) Headphone jack Plug in headphones, listen to the audio. 5. Specifications Model TS-0605M Microphone quantity ≤30 Channel Frequency Response 30 ~ 20KHz >75 dB(A) - Page 12 Simple Intelligent Conference System VersionV0.1...
