Page 1: User Manual
Intelligently digital conference system User Manual TS-0604M Before using the system, please read this manual first... - Page 2 NOTE: This manual only as an instructions for user, not for service purposes. From the date of issue, if the function or technical parameters change later, another supply mentary instruction will be added, the details can be inquired to the manufacturers. This manual is a product manufacturer Copyright, unauthorized and any entity or individual shall not take part or all the contents as commercial purposes.
- Page 3 SAFETY OPERATIONAL GUIDANCE In order to make sure the correct operation and safety using, please comply with the following conditions when installation, operating and maintenance. 1) Make sure the connection of the ground wire is well enough when installation. Do not use two-core plug. And make sure the input voltage of power supply is as same as the one marked on the main controller.
- Page 4 1. Intelligent digital conference system overview About ITC intelligent digital conference system ◆ Intelligent digital conference system, the control of products and multimedia audio and video matrix product after high-tech professional product series, which including discussion, simultaneous interpretation, the infrared voice distribution, long-distance telephone meeting, voting, and camera tracking system.
- Page 5 2 Function characteristics ◆ Conference controller can connect to 128 units at maximum, through expanded controller. A completed conference system can access to 4096 units. ◆ Using special 8 core aviation plug connection. ◆ "Hand in hand” concatenated model. ◆ With audio input connector. ◆...

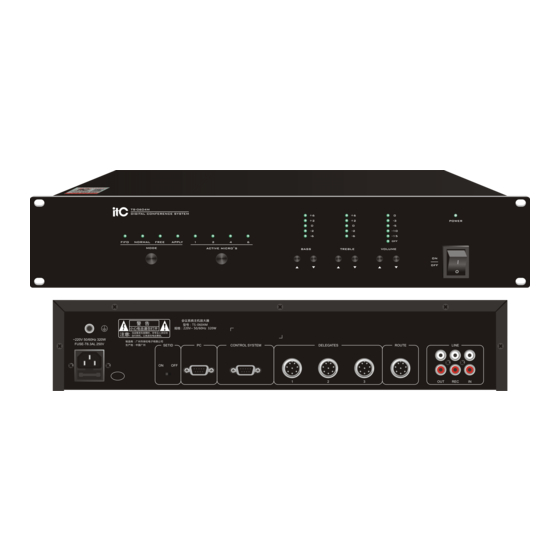

- Page 6 3. DSC controlled system Description of Product TS-0604M Conference master controller 3.1 Front Panel 1) MODE Setting ◆ FIFO Mode,The first open speech unit was shut down by later speech unit after reaching boot number. ◆ Normal mode, After reaching representatives spoke unit number, if representative speak, Automatic enter request to speak.
- Page 7 continue button is invalid. 5) VOLUME —Adjust output volume, through the volume buttons to adjust the output volume increase and decrease, press the volume increase/decrease key to control the volume increase/decrease (Maximum volume/OFF after the continue button is invalid). 6) OFF —Main volume mute lamp, when the volume adjustment choose to "OFF" position, the mute indicator light, the main volume be turned OFF.
- Page 8 3.2 Back Panel 1) POWER INPUT—Input power, support AC100V-240V input. 2) SET ID—conference unit ID set up switch,use for set the conference unit’s ID(Complete ID set after 20 seconds before the next step). 3) PC—Connected to computer serial port, PC software conference management function.
- Page 9 NOTICE: 1. Unit 8 core air connector foot function description 8 P in M A L E 4 85A/ 1 485 B/ 8 GND/2 A + /3 A - /5 B + /6 B - /7 24V+ /4 2. CONTROL SYSTEM COM foot position function description: Foot Signal Description...
- Page 10 4 Operating Instructions According to the following basic equipment and cable connection system A. PC computer B. conference controller TS-0604M C. Embedded Unit TS-0622/TS-0622A 2pcs D. 2 meters reticle 2pcs After connection, please open the controller. (1) Set ID Open controller, The SETID switch to ON,then ID can be set up. Then press ON/OFF key of TS-0622/TS-0622A, light flashing ON the microphone.
- Page 11 have change. Click the end of the sign in, the sign in is completed. (4) Proposal Voting Open the PC software ON the computer, then click the sign-in control (figure 1), enter the sign-in control interface, ON the right to choose sign in model (check-in) then click the start check-in (as shown in figure 3), enter the sign in projection screen.
- Page 12 Figure 2 Figure 3...
- Page 13 Figure 4 5 connection example...
- Page 14 6 Technical parameters Technical parameters TS-0604M Supply power Switching power supply AC100-240V Quiescent dissipation Maximum power 350W Output power ≤110W/24V every road Impedance: 100Ω Audio output way: nonequilibrium impedance: 100kΩ MIC input electronic level: -60 dB way: nonequilibrium 60－16kHz Frequency response Signal to Noise >...
