- Page 1 Intelligently digital conference system User Manual TS-0602 TS-0602A Before using the system, please read this manual first...
- Page 2 NOTE This manual only as an instructions for user, not for service purposes. From the date of issue, if the function or technical parameters change later, another supply mentary instruction will be added, the details can be inquired to the manufacturers. This manual is a product manufacturer copyright, unauthorized and any entity or individual shall not take part or all the contents as commercial purposes.
- Page 3 SAFETY OPERATIONAL GUIDANCE In order to make sure the correct operation and safety using, please comply with the following conditions when installation, operating and maintenance. 1) Make sure the connection of the ground wire is well enough when installation. Do not use two-core plug. And make sure the input voltage of power supply is as same as the one marked on the main controller.
- Page 4 1. Intelligent Digital Conference System Overview Digital Conference System brings the benefits of innovative digital technology to discussion and conference systems. This high-tech series includes discussions and statements, simultaneous interpretation, infrared voice allocation, teleconference, voting, camera tracking system. Adhering to the concept of high system integration, DCS (Digital Conference System) + MCS (Multimedia central control system) work in close compatibility to offer a complete digital conferencing solution.

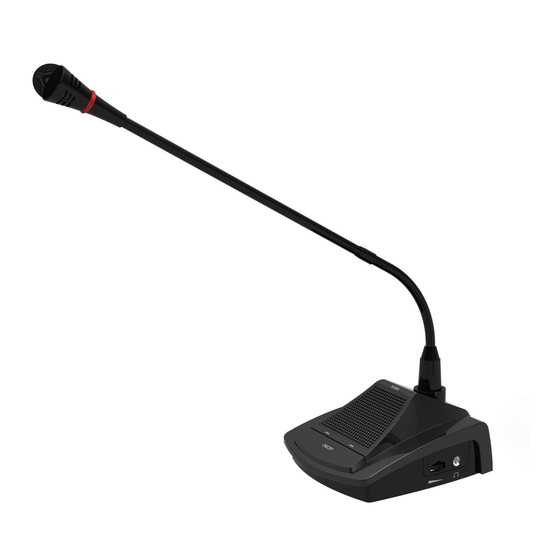

- Page 5 2.2 Nomenclature and functions 1. TS-0602A MIC On/Off. 2. PRIOR - microphone priority button. Chairman Unit (TS-0602) has unique priority; press this button at any time to cancel the speech rights of all delegate units, and turn on the MIC of the chairman unit.
- Page 6 Refer to the above diagram; turn on the conference controller. 1) ID setting Turn on the conference controller, switch SETID to ON; press ON / OFF on TS-0602/0602A, the microphone lights flashes and remains red, indicating that ID of this unit is set; and then press the ON / OFF of the next unit ...
- Page 7 After input background music through the conference host, when the speech function of the MIC is off, the built-in speaker of TS-0602/TS-0602A is active; When the MIC is on, the speaker is muted; When the speech function of the MIC is off, if headphone or recording interface is inserted, the speaker is muted and audio comes out from the headphone and recording port.
-
Page 8: Technical Parameters
Figure 3 3. Technical parameters Model TS-0602 TS-0602A Power DC24V(host power supply) Unit Interface 8 core plug Power consumption Headphone output 9dBu, 8-32Ω, 3.5 mm mini jack Speaker Power ≤2W Microphone type high directivity column diode Projection type heart Signal-to-noise ratio (S/N) >... - Page 9 Intelligently Digital Conference System - 9 - VersionV0.3...
