Bosch Solution 2000 Quick User Manual

Safety
Danger!
Electricity
Injuries due to electricity are possible if the
system is not operated correctly or if the sys-
tem is opened or modified. Never open or
modify the system. Contact your installer if
you want to get your system modified.
Caution!
Sensitive components
!
Damage of sensitive components is possible if
the system is not handled carefully or if the
system is opened or modified.
– Always handle the system carefully.
– Never open or modify the system.
– Please contact your installer if you want to get your
system modified.
Old electrical and electronic equipment
This product and/or battery must be disposed
of separately from household waste. Dispose
such equipment according to local laws and
regulations, to allow their reuse and/or recyc-
ling. This will help in conserving resources, and
in protecting human health and the environ-
ment.
Short information
This manual describes the most important operations of
the Solution 2000 / 3000/ 4000 control panels. It does
not replace the control panel User manual.

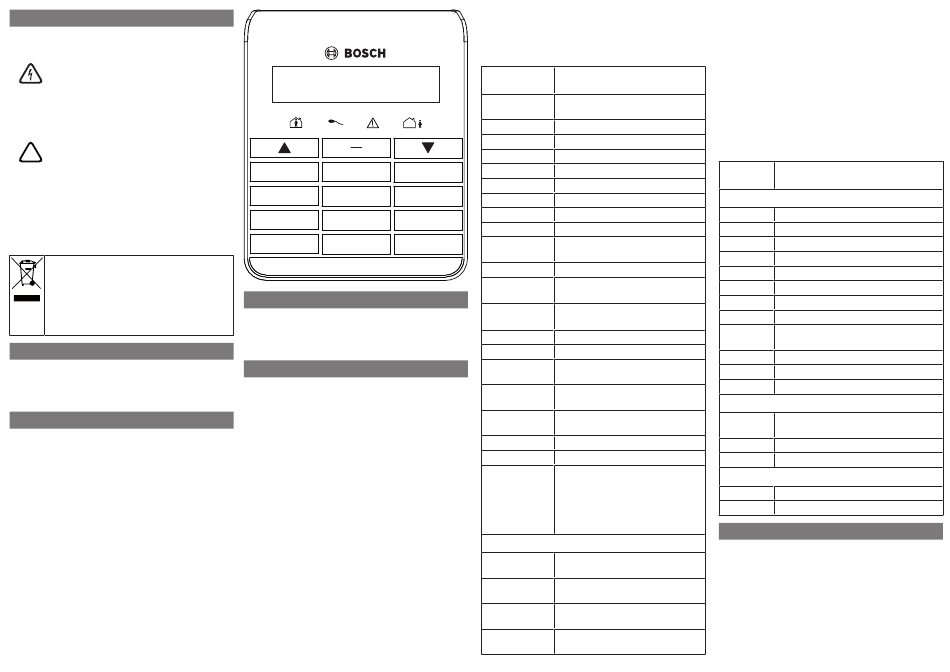

System overview
Recommend to use IUI-SOL-TEXT LCD alphanumeric
keypad to operate the control panel.
Master code default: [2] [5] [8] [0]
Installer code default: [1] [2] [3] [4]
1 2 3
4 5 6
7 8 9
* 0 #
Planning information
Please contact your installer to complete the installa-
tion and programming as instructed in the control panel
Installation manual.
Operation
User menu
It is convenient to operate the system with the LCD al-
phanumeric keypad.
1. Enable the keypad and confirm that the system is in
disarmed status.
2. To enter the menu:
– Users with authority levels can enter their own
user menu by entering the user code (default =
2580) followed by the [-] key.
– Without any codes, users can enter the general
menu by only pressing [-] key.
3. Select the menu and operate according to the menu
prompts.
Example: Change the Master Code
1. Enter the master code, then press [-].
2. Select menu [2][2] (User Code), press [#] to select
U01 - User 01 Name.
3. Enter the new master code, and press [#].
4. Press [-] until "Confirm to Save Parameter Change"
appears, then press [#].
User code command
The system supports 4-digit programmable user code to
execute the following user code commands with the
LCD alphanumeric keypad or LCD icon keypad.
Master/User Function Description
Command
Code+[1][#] Change or Delete User Code and RF
Keyfob
Code+[2][#] Change Domestic Phone Number
Code+[3][#] Change Telco Arm/Disarm Sequence
Code+[4][#] Setting STAY Mode 2 Zones
Code+[5][#] Turn Output On/Off
Code+[6][#] Setting the Date and Time
Code+[7][#] Walk Test Mode
Code+[8][#] Event Memory Recall Mode
Code+[9][#] Duress Disarm
Code+[*] STAY 1 Arm / Disarm or STAY 2 Dis-
arm
Code+[#] AWAY Arm / Disarm
Code+[0][1][*] STAY1 Arm/Disarm Area 1
Or STAY2 Disarm Area 1
Code+[0][2][*] STAY1 Arm/Disarm Area 2
Or STAY2 Disarm Area 2
Code+[0][1][#] AWAY Arm/Disarm Area 1
Code+[0][2][#] AWAY Arm/Disarm Area 2
Code+[9][9][8] System Reset
[9][#]
Code+[9][4][1] Reset Network Module 1
[#]
Code+[9][4][2] Reset Network Module 2
[#]
(only for Solution 4000)
Code+[9][0][#] Cycle door (only via assigned keypad)
Code+[9][1][#] Door commands
1. Cycle
2. Lock
3. Unlock
4. Secure
5. Unsecure
Only with LCD icon keypad
Code+[1][2][3] Inquire Cloud status
[#]
Code+[1][4][1] RF zone diagnose
[#]
Code+[1][4][2] RF keyfob diagnose
[#]
Code+[1][4][3] RF repeater diagnose
[#]
For operating commands executed by the installer code
or no code, please refer to the control panel Quick in-
stallation guide.
Keypad command
You can operate the system with the corresponding
keypad keys:
– Long press command, hold-down the single key for
3 seconds
– Two keys command, press and hold (or press and
release) the two keys at the same time
– Other command, press and release the single key
Keypad Function Description
Command
Long press command
[0] Arm/Disarm the system in STAY Mode 2
[1] Horn Speaker Test
[2] Bell Test
[3] Strobe Test
[4] Turn Day Alarm On/Off
[5] Fault Analysis Mode
[6] Initiate a Modem Call
[7] Reset Latching Output
[8] Change the Codepad Buzzer Tone and
Codepad Area Display
[9] Send Test Report
[#] Arm the system in AWAY Mode
[*] Arm/Disarm the system in STAY Mode 1
Two keys Command
[1]+[3] or Codepad Panic Alarm
[*]+[#]
[4]+[6] Codepad Fire Alarm
[7]+[9] Codepad Medical Alarm
Other Command
[*] [*] Entering Zone Bypass
[#] Stop Walk Test / New Fault Confirm
Troubleshooting
Please contact your installer in case of problems or any
unexpected behavior of the system.
