System Status Button - FieldServer LonWorks ProtoNode Instruction Manual

System Status Button

9.6
The System Status Button can be found on any page of the web apps. This shows the level of
alert/functionality for the customer device. This is an aggregate of the Web App page's
resource usage upon the local PC or mobile device, connectivity and device alert level.
The color of the button represents the status of one to all three systems:
Green – Normal status Yellow – Warning status Red – Alarm status
Page 49 of 97

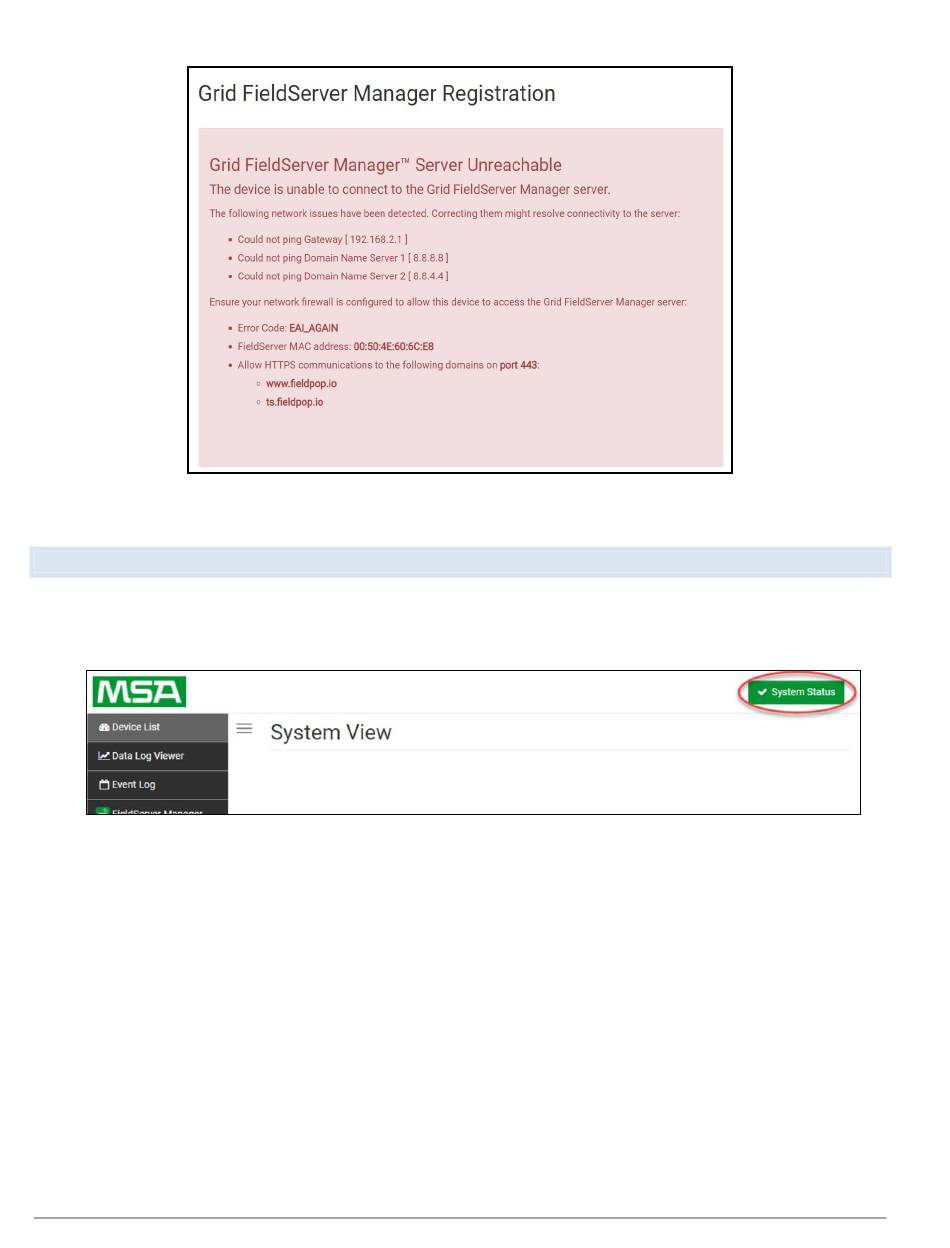

Figure 9-4: ProtoNode Lost Connection Page
Figure 9-5: ProtoNode Status Button
